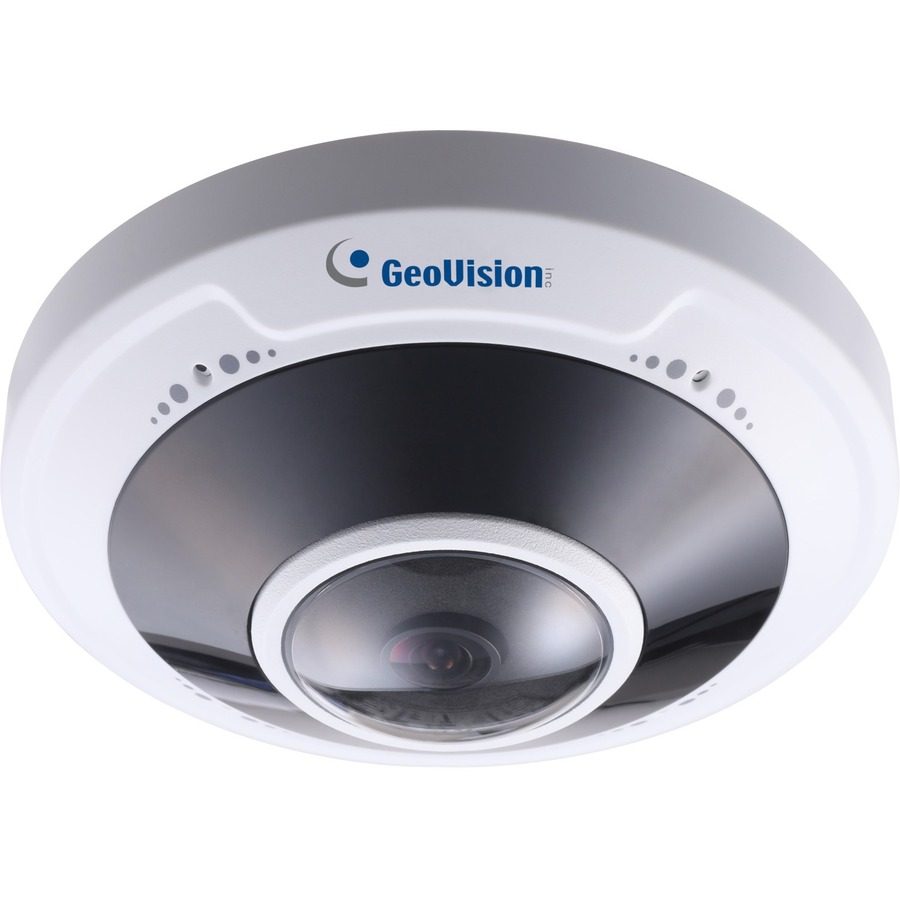

GeoVision 125-FER5702-000 Security Camera

GeoVision GV-FER5702 - Security Cameras, GeoVision GV-FER5702, 5MP H.265 Night Vision Outdoor Fisheye IP Security Camera

1/2.8" progressive scan CMOS sensor
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2592 × 1944
Wide Dynamic Range Pro (WDR Pro)
Intelligent IR
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10)
Ingress protection (IP66)
One sensor input and one alarm output
Built-in microphone

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$525.06

GeoVision 125-FER5702-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-FER5702-000 Security Camera Overview

GV-FER 5702 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 and IK10 standards and can be powered through PoE. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. It is also equipped with a built in micro SD card slot for local storage.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

65.62 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

180°

Effective Camera Resolution:

5 Megapixel

Video

Video Formats:

H.265
H.264
Motion JPEG

Maximum Video Resolution:

2592 x 1944

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

1.40 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Ceiling Mount
Wall Mount
Pendant Mount
Junction Box Mount

Form Factor:

Fisheye

Durability:

Vandal Resistant

Diameter:

4.9"

Weight (Approximate):

12.70 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Wide Dynamic Range
Rugged Design
SD Card Local Storage
Ingress Protection
Built-in Microphone
2D Noise Reduction
3D Noise Reduction
Smart Stream
Tampering Alarm
Privacy Masking
PTZ
Automatic White Balance
Day/Night

Indoor/Outdoor:

Outdoor

Package Contents:

5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
