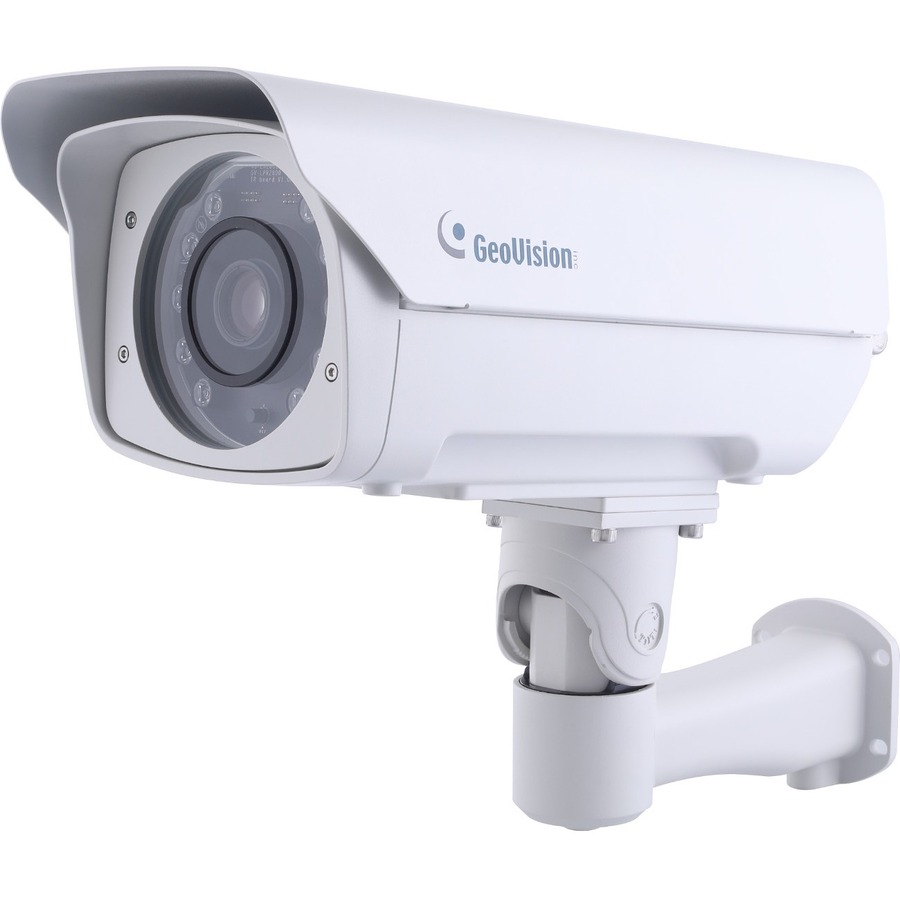

GeoVision 125-LPR00LR2800-001 Security Camera

The GeoVision 125-LPR00LR2800-001 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
GeoVision  -  LICENSE PLATE BOX CAMERA, DEEP LEARING BUILT IN, 2 LANE RECOGINTION, 2MP, SUPER LOW LUX, H.265, POE
  • Built-in deep learning LPR processor for license plate recognition
  • Double-lane recognition
  • Min. illumination at 0.04 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 60 fps at 1920 × 1080
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • DC 12 V / PoE (IEEE 802.3bt)
Read More
Add to Quote
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 125-LPR00LR2800-001 Security Camera Overview

Deep-Learning LPR Camera

GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at GV-ASManager, an access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.

GV-LPR2800-DL is a 2 MP color network camera designed for recognition of non-reflective license plates on vehicles traveling at up to 100 km/h (62 mph). With its multiple high-power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and capture clear license plate images for single- or dual-lane scenarios under low-light conditions. It adheres to IP68 and IK10 standards and is able to operate within a temperature range of -40°C (-40°F) to 50°C (122°F).

Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
10
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
50.9°~7.6°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
5 mm
Maximum Focal Length:
50 mm
Lens Included:
Yes
Lens Mount Type:
CS-Mount
Maximum Aperture:
f/1.6
Optical Zoom:
10x
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1/120 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Corner Mount
  • Pole Mount
Form Factor:
Box
Durability:
Vandal Resistant
Weight (Approximate):
9.57 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
90%
Miscellaneous
Features:
  • Day/Night
  • Removable IR Cut-off Filter
  • Wide Dynamic Range
  • SD Card Local Storage
  • Built-in Heater
  • Built-in Fan
  • Defog
  • Motion Detection
  • Privacy Masking
  • White Balance
  • Back Light Compensation (BLC)
  • Audio Compression
Package Contents:
  • Starlight 2 MP H.265 Super Low Lux WDR Pro LPR Box IP Camera
  • Sun Shield Cover
  • 2 x Sun Shield Cover Short Screw
  • 4 x Screw Anchor
  • 4 x 1/4"-10 Screw (32 mm)
  • 2 x M4 Screw (5 mm)
  • 4 x Washer
  • Hex Wrench
  • Silica Gel Bag
  • Adhesive Tape for Silica Gel Bag
  • Micro SD card (Already Inserted and Formatted)
  • Installation Guide
  • Download Guide
  • Warranty Card
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP68
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
NDAA Compliant:
Yes
Item Numbers
UNSPSC: 46171610
