GeoVision 125-PDR8800-0010 Security Camera

GeoVision - Security Cameras, GeoVision, AI 180 Panoramic, 8MP, 1.68MM, Super Low Lux, WDR Pro, Dome, IP, H.265

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8" progressive scan CMOS sensor
Min. illumination at 0.012 lux
Triple streams from H.265, H.264 or MJPEG
Up to 25 fps at 3840 x 2160
Intelligent IR
IR distance up to 15 m (50 ft)
Day and Night function (with removable IR-cut filter)
180° panoramic view
Vandal resistance (IK10 for metal casing)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$449.82

GeoVision 125-PDR8800-0010 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-PDR8800-0010 Security Camera Overview

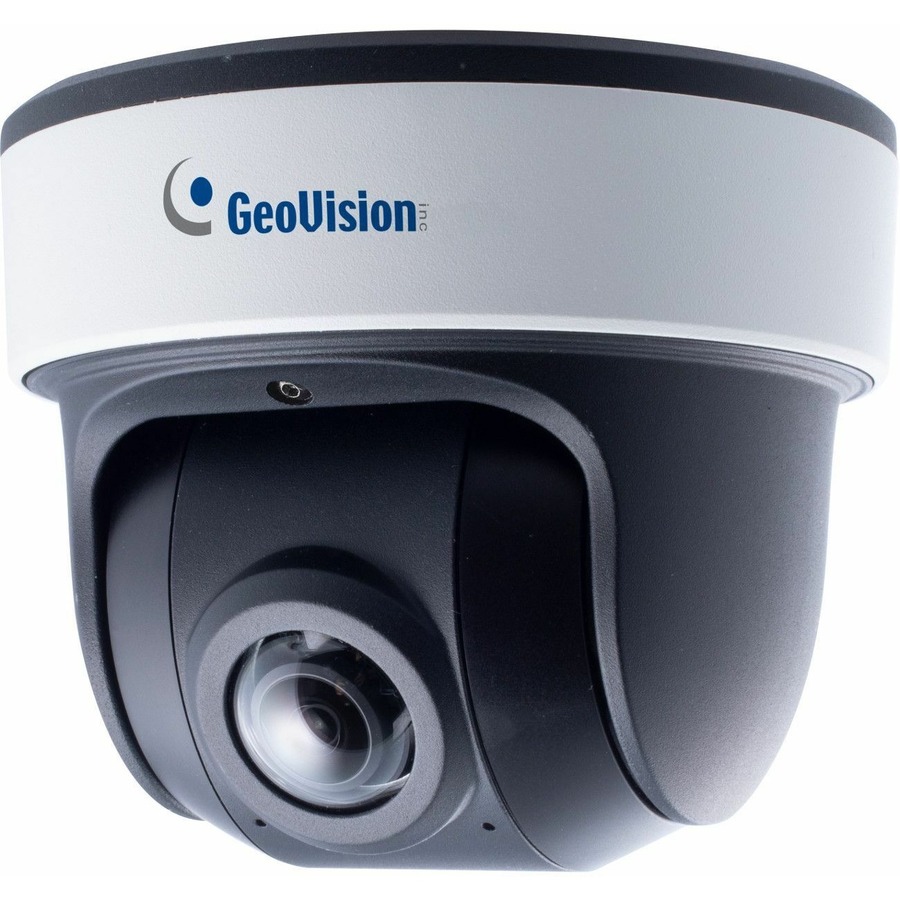

The panoramic dome IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. GV-PDR8800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

49.21 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

180°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

1.68 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/2.0

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Form Factor:

Dome

Durability:

Vandal Resistant

Product Color:

Black
White

Diameter:

Weight (Approximate):

1.87 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

90%

Miscellaneous

Features:

Wide Dynamic Range
180° Panoramic View
Built-in IR LED
SD Card Local Storage
Built-in Microphone
Audio Compression
Automatic White Balance
Auto Gain Control
Ingress Protection

Indoor/Outdoor:

Outdoor

Package Contents:

GV-PDR8800 Dome
Waterproof Rubber Set
Screw Kit
Hex Key H2.0
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Country of Origin:

Taiwan

Item Numbers

UNSPSC: 46171610
