GeoVision 125-SD2723-20X Security Camera

The GeoVision 125-SD2723-20X Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - GeoVision GV-SD2723-IR 2 Megapixel Network Camera - Dome - 820.21 ft Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 20x Optical - CMOS - Straight Tube Box Mount, Straight Tube Mount, Swan Neck Mount, Corner Mount, Pole Mount, Pendant Mount, Wall Mount

1/3" progressive scan low lux CMOS sensor
Min. illumination at 0.1 lux
Dual streams from H.265, H.264, and MJPEG
Up to 50 fps at 1920 x 1080
20x optical zoom and 32x digital zoom
Intelligent IR
IR distance up to 250 m (820 ft)
Day and Night function (with removable IR-cut filter)
Wide Dynamic Range Pro (WDR Pro)
Vandal resistance (IK10 for metal casing)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 125-SD2723-20X Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-SD2723-20X Security Camera Overview

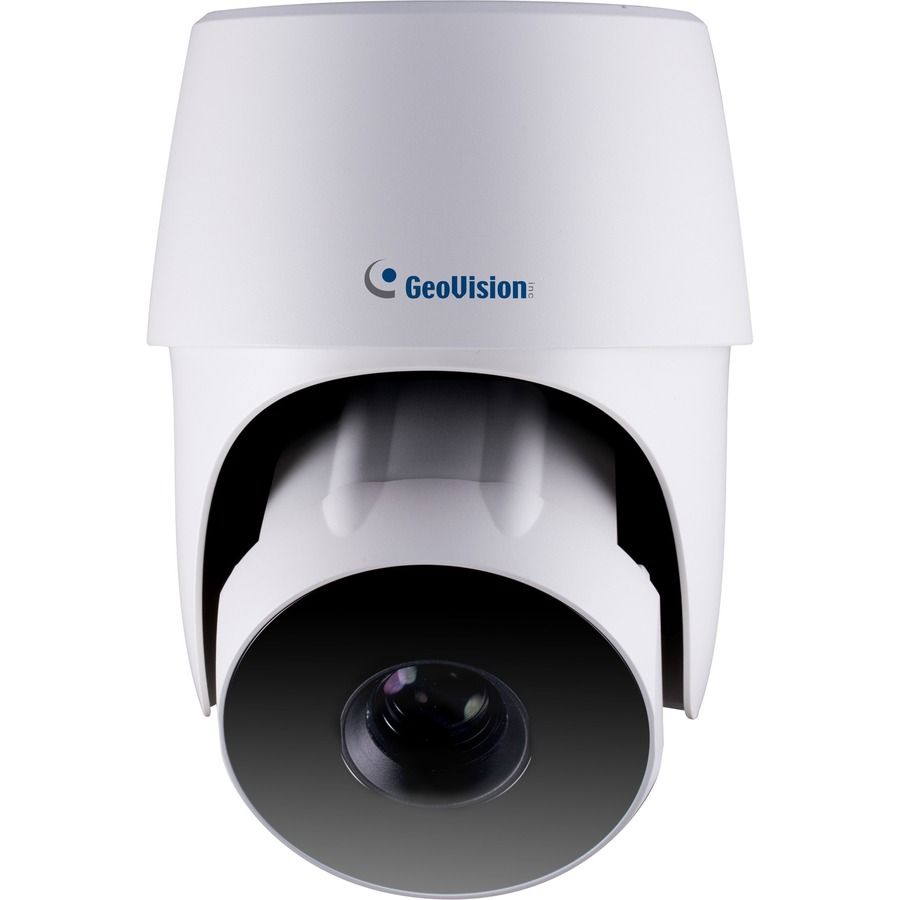

The GV-SD2723-IR IP Speed Dome is an outdoor network PTZ camera that offers 20x optical zoom and 32x digital zoom, and is capable of capturing high-definition images (1080p at 50 fps) with great details. In low-light environments, night vision is enhanced by its high power LEDs with an effective IR distance of up to 250 m (820 ft).

Wide surveillance coverage is made possible with 360° endless panning and -20 ~ 200° tilting capacity. PTZ functions such as Preset, Sequence, Auto Pan, Cruise and Tour can be programmed and activated by schedule. The GV-SD2723-IR IP Speed Dome supports a pan/tilt speed of from 0.1 to 400° per second, with 0.2° pan accuracy, for fast and accurate tracking ability. The camera adheres to IK10 and IP66 standards.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

820.21 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Monochrome
Color

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

1920 x 1080

Lens

Lens Type:

Zoom

Minimum Focal Length:

4.70 mm

Maximum Focal Length:

94 mm

Optical Zoom:

20x

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Straight Tube Box Mount
Straight Tube Mount
Swan Neck Mount
Corner Mount
Pole Mount
Pendant Mount
Wall Mount

Form Factor:

Dome

Height:

11.5"

Diameter:

7.9"

Weight (Approximate):

12.35 lb

Miscellaneous

Package Contents:

20x PoE 2MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
Pendant Tube (GV-Mount207)
2 x Hex Key
Rubber Ring
RJ-45 Connector
Data Cable
Download Guide
Warranty Card

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
