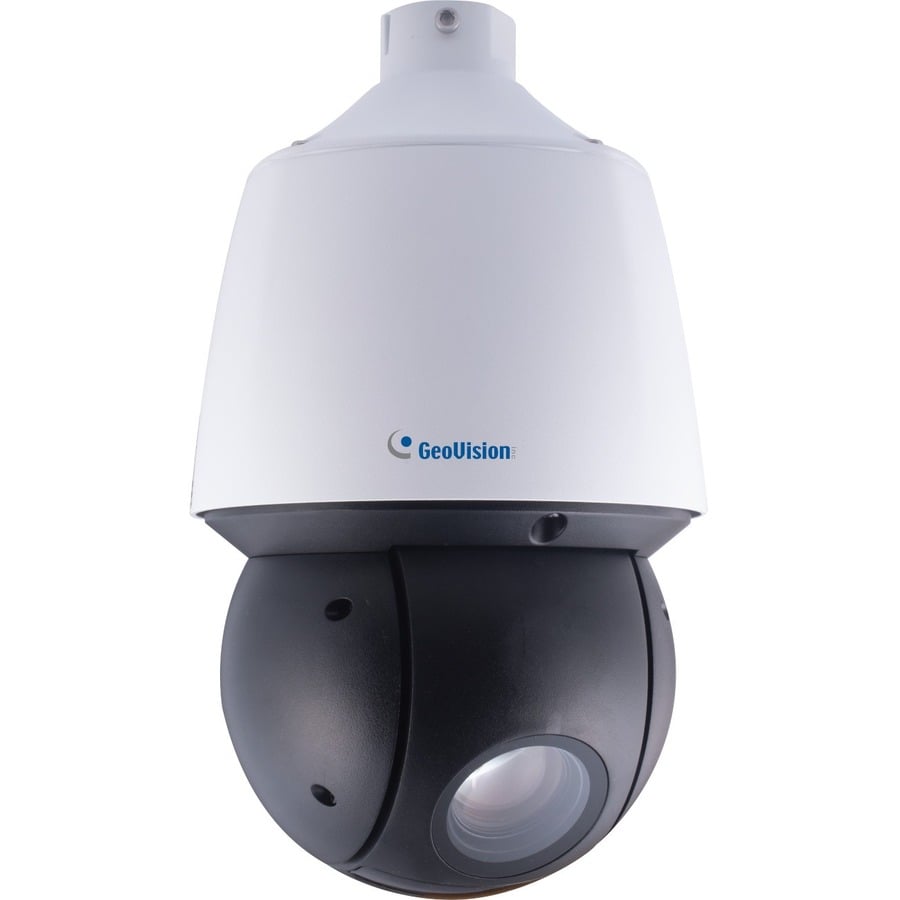

GeoVision 125-SD4825-IR Security Camera

GeoVision GV-SD4825-IR - Security Cameras, GeoVision GV-SD4825-IR, AI 4MP 25x Zoom H.265 Super Low Lux WDR Pro, Outdoor IR IP Speed Dome, 4.8-120mm

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8" progressive scan CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Motorized varifocal lens for remote focus / zoom adjustment
25x optical zoom and unlimited digital zoom
Intelligent IR
IR distance up to 100 m (330 ft)
Day and night function with IR-cut filter

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$1,033.38

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-SD4825-IR Security Camera Overview

GV-SD4825-IR is an outdoor network PTZ camera that offers 25x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2688 x 1520 at 30 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 100 m (330 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It also adheres to IP67 and IK10 standards.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. GV-SD4825-IR supports AI perimeter protection, people flow counting, auto tracking, motion detection, audio detection and more.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

328.08 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

52.20° ~ 2.74°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

4.80 mm

Maximum Focal Length:

120 mm

Lens Included:

Yes

Maximum Aperture:

f/1.5

Optical Zoom:

25x

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Form Factor:

Dome

Durability:

Vandal Resistant

Diameter:

6.5"

Weight (Approximate):

6.72 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

158°F (70°C)

Operating Humidity:

90%

Miscellaneous

Features:

Ingress Protection
SD Card Local Storage
Motion Detection
Privacy Masking
Wide Dynamic Range
Face Detection
Day/Night
3D Noise Reduction
Gain Control
Automatic White Balance

Indoor/Outdoor:

Outdoor

Package Contents:

GV-SD4825-IR Speed Dome
Torx Wrench
Waterproof Rubber Set
M4 Hex Key
Waterproof Guidelines
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
