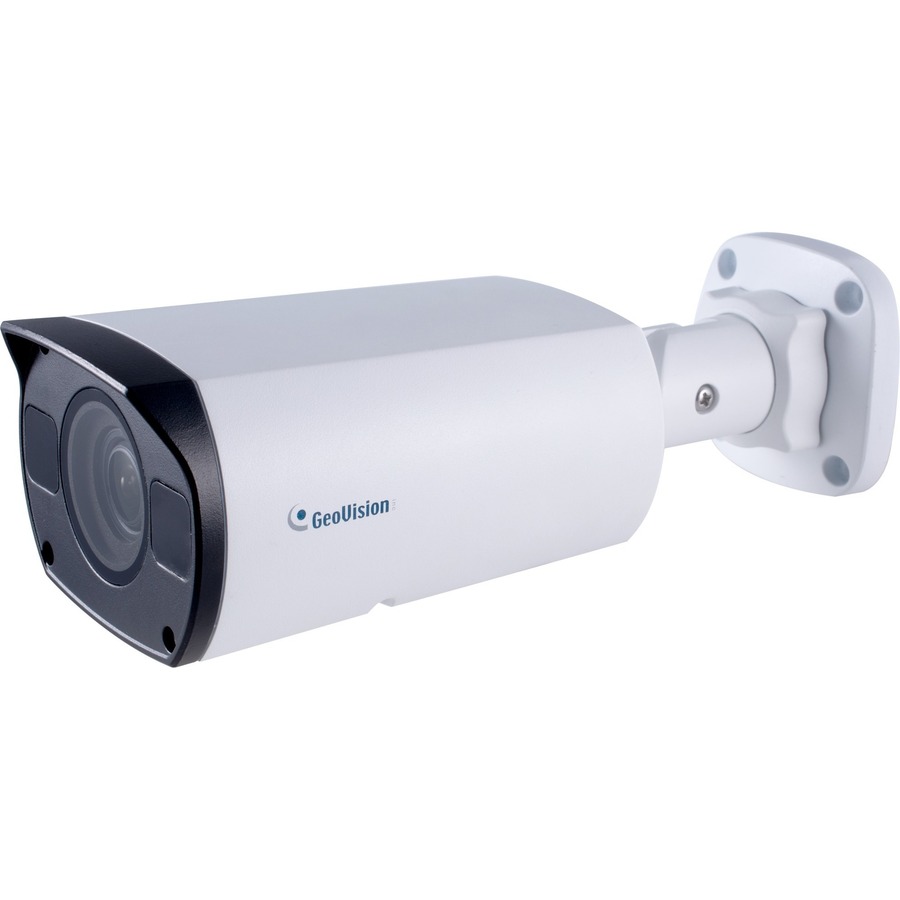

GeoVision 125-TBL-8710-000 Security Camera

The GeoVision 125-TBL-8710-000 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - 8MP BULLET, SUPER LOW LUX WDR, WDR IR PRO, IP CAMERA, H.265, MOTORIZED 2.8-12MM LENS

1/2" progressive scan super low lux CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 50 m (165 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 125-TBL-8710-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TBL-8710-000 Security Camera Overview

The Bullet IP Camera is an outdoor network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. GV-TBL8710 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

164.04 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal FOV 114.8°~47.3°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.5

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/6 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Corner Mount
Pole Mount
Wall Mount

Form Factor:

Bullet

Durability:

Vandal Resistant

Weight (Approximate):

1.28 lb

Environmental Conditions

Minimum Operating Temperature:

-31°F (-35°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Built-in IR LED
SD Card Local Storage
Ingress Protection
Defog
3D Noise Reduction
Motion Detection
Tampering Alarm
Privacy Masking
Automatic White Balance
Auto Gain Control

Indoor/Outdoor:

Outdoor

Package Contents:

8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
