GeoVision 125-TBL8804-0000 Security Camera

GeoVision - Security Cameras, GeoVision, 8MP Outdoor Network Bullet Camera with Dual Spotlights & Night Vision

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.7" progressive scan super low lux CMOS
Min. illumination at 0.01 lux
Triple streams from H.265, H.264 or MJPEG
Wide Dynamic Range Pro (WDR Pro)
Up to 20 fps at 3840 x 2160
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Alarm sound and warm LED light triggered on AI detection events

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$174.78

GeoVision 125-TBL8804-0000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TBL8804-0000 Security Camera Overview

AI Deep-Learning IP Camera

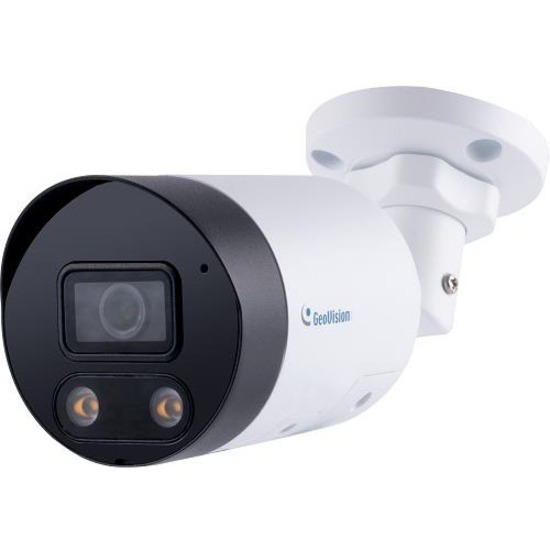

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter, one IR LED and two warm LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8804 adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal FOV 86°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

4 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/2

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Wall Mount

Form Factor:

Bullet

Height:

2.8"

Width:

2.8"

Length:

7.4"

Weight (Approximate):

14.46 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Automatic White Balance
Auto Gain Control
Wide Dynamic Range
SD Card Local Storage
Built-in IR LED
Audio Detection
Motion Detection
Tampering Alarm
Audio Compression

Indoor/Outdoor:

Outdoor

Package Contents:

AI 8MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
