GeoVision 125-TDR2704-002 Security Camera

The GeoVision 125-TDR2704-002 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision GV-TDR2704-2F - Security Cameras, GeoVision GV-TDR2704-2F, 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

1/2.7" progressive scan low lux CMOS sensor
Min. illumination at 0.01 lux
Dual streams from H.265, H.264 or MJPEG
Up to 30 fps at 1920 × 1080
Intelligent IR
IR distance up to 30 m (100 ft)
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
3-axis mechanism (pan / tilt / rotate)
Day and Night function (with removable IR-cut filter)
Ingress protection (IP67)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 125-TDR2704-002 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TDR2704-002 Security Camera Overview

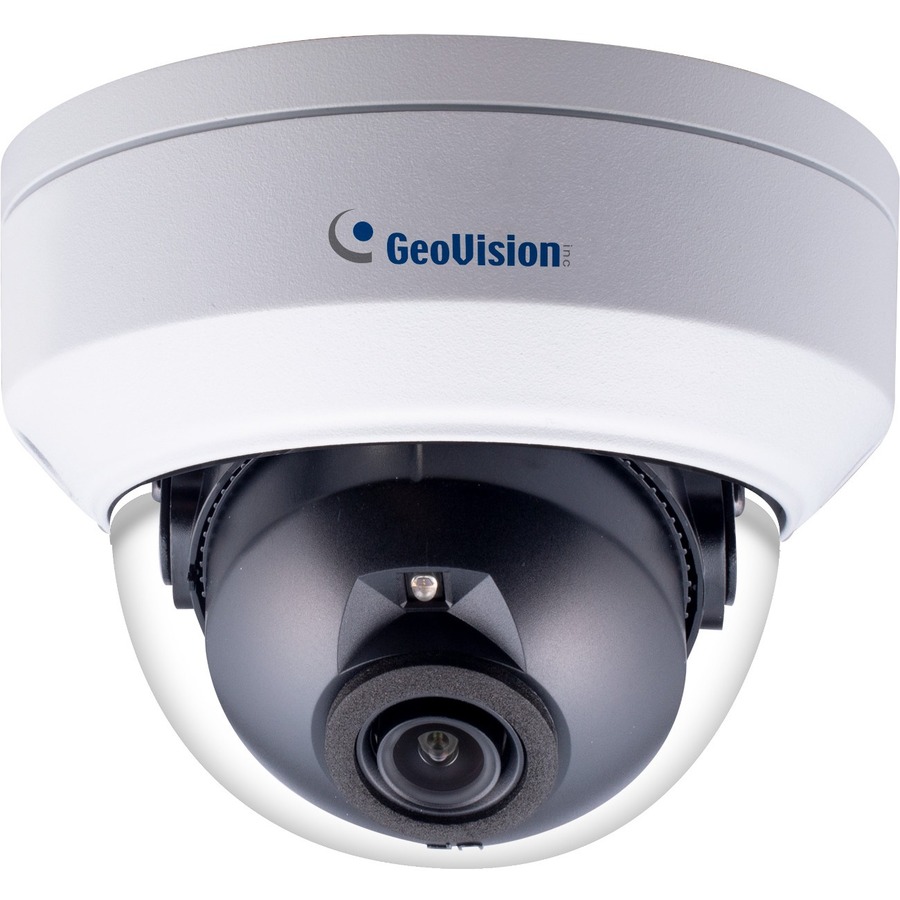

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.

Detailed Specs

Technical Information

Recording Formats:

Full HD

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

113°

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Maximum Aperture:

f/2

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Ceiling Mount
Corner Mount
Pole Mount

Form Factor:

Dome

Durability:

Vandal Resistant

Diameter:

4.3"

Weight (Approximate):

12.70 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

90%

Miscellaneous

Features:

Removable IR Cut-off Filter
Built-in IR LED
Day/Night
SD Card Local Storage
Wide Dynamic Range
Defog
3D Noise Reduction
Motion Detection
Privacy Masking
Automatic White Balance
Auto Gain Control
Tampering Alarm
Cross Line Detection

Indoor/Outdoor:

Outdoor

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

Item Numbers

UNSPSC: 46171610
