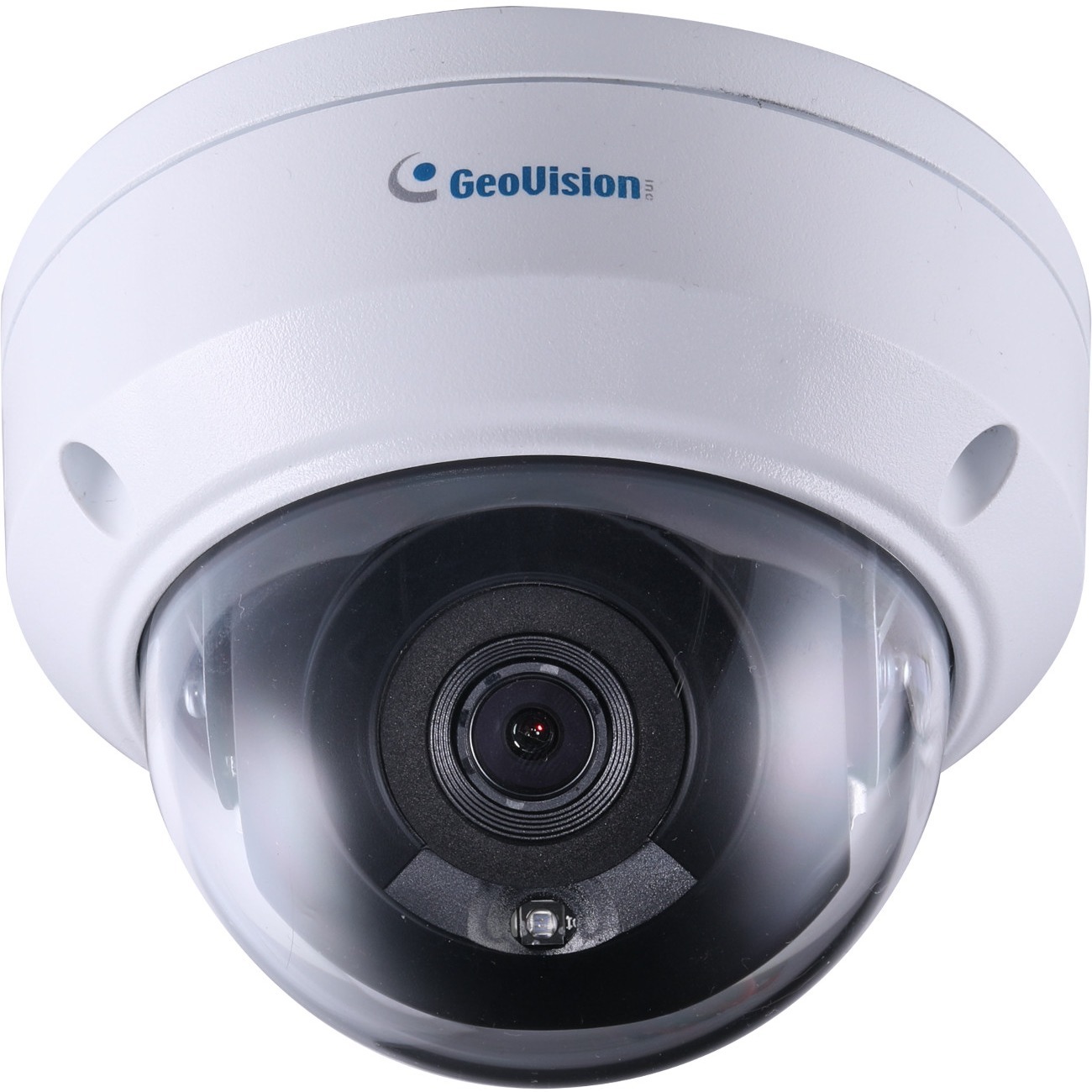

GeoVision 125-TDR4702-000 Security Camera

The GeoVision 125-TDR4702-000 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - GeoVision GV-TDR4702-0F 4 Megapixel Network Camera - Dome - 98.43 ft Night Vision - H.265, MJPEG, H.264 - 2592 x 1520 - CMOS - Pendant Mount, Wall Mount, Ceiling Mount, Junction Box Mount, Pole Mount, Corner Mount

1/3" progressive scan low lux CMOS sensor
Min. illumination at 0.03 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 2592 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Ingress protection (IP67)
Vandal resistance (IK10)
DC 12V / PoE (IEEE 802.3af)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 125-TDR4702-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TDR4702-000 Security Camera Overview

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.43 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
MJPEG
H.264

Maximum Video Resolution:

2592 x 1520

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Ceiling Mount
Junction Box Mount
Pole Mount
Corner Mount

Form Factor:

Dome

Diameter:

4.3"

Weight (Approximate):

12.35 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

90%

Miscellaneous

Indoor/Outdoor:

Outdoor

Package Contents:

GV-TDR4702 4MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 46171610
