GeoVision 125-TDR4803-002 Security Camera

GeoVision - Security Cameras, GeoVision, 4MP Outdoor Network Mini Dome Camera with Night Vision & 2.8mm Lens

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/3" progressive scan super low lux CMOS
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
Ingress protection (IP67)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$165.54

GeoVision 125-TDR4803-002 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TDR4803-002 Security Camera Overview

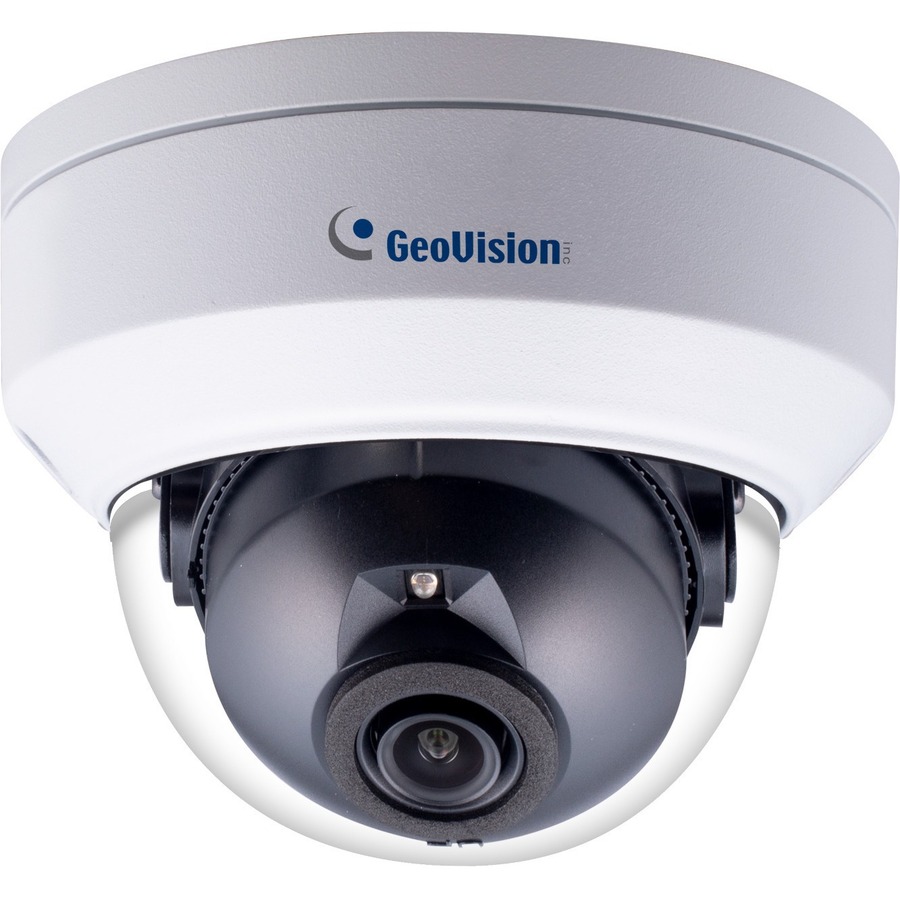

GV-TDR4803 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal FOV 101°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Lens Included:

Yes

Lens Mount Type:

M12-mount

Maximum Aperture:

f/1.6

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Bracket Mount
Ceiling Mount
Corner Mount
Pole Mount

Form Factor:

Mini Dome

Durability:

Vandal Resistant

Diameter:

4.3"

Weight (Approximate):

14.82 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Built-in IR LED
SD Card Local Storage
Automatic White Balance
Auto Gain Control
Wide Dynamic Range
Motion Detection
Tampering Alarm
Audio Detection
Mirror
Rugged Design

Indoor/Outdoor:

Outdoor

Package Contents:

AI 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Torx Wrench
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
