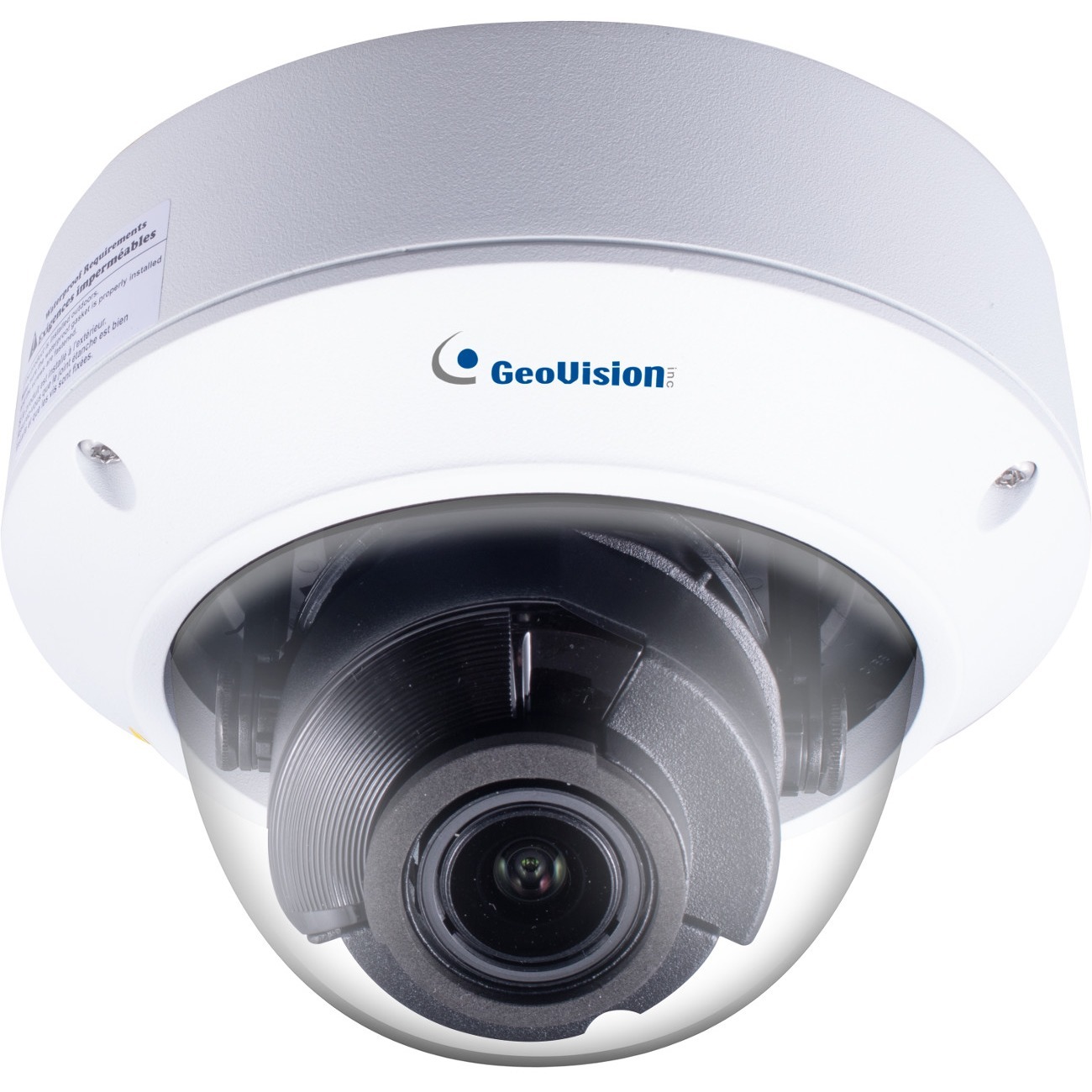

GeoVision 125-TVD4700-000 Security Camera

GeoVision - GeoVision GV-TVD4700 4 Megapixel Network Camera - Dome - 98.43 ft Night Vision - H.264, H.265, MJPEG - 2592 x 1520 - 4.3x Optical - CMOS - Wall Mount, Junction Box Mount, Corner Mount, Pole Mount, In-ceiling, Pendant Mount

1/3" progressive scan low lux CMOS
Min. illumination at 0.01 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 2592 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
3-axis mechanism (pan / tilt / rotate)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$165.54

GeoVision 125-TVD4700-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TVD4700-000 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.43 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.264
H.265
MJPEG

Maximum Video Resolution:

2592 x 1520

Maximum Frame Rate:

20 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Maximum Aperture:

f/1.6

Optical Zoom:

4.3x

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Wall Mount
Junction Box Mount
Corner Mount
Pole Mount
In-ceiling
Pendant Mount

Form Factor:

Dome

Diameter:

5.8"

Weight (Approximate):

2.03 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Indoor/Outdoor:

Outdoor

Package Contents:

4MP H.265 Low Lux WDR IR Vandal Proof IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Torx Wrench
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

NDAA Compliant:

Yes

Item Numbers

UNSPSC: 46171610
