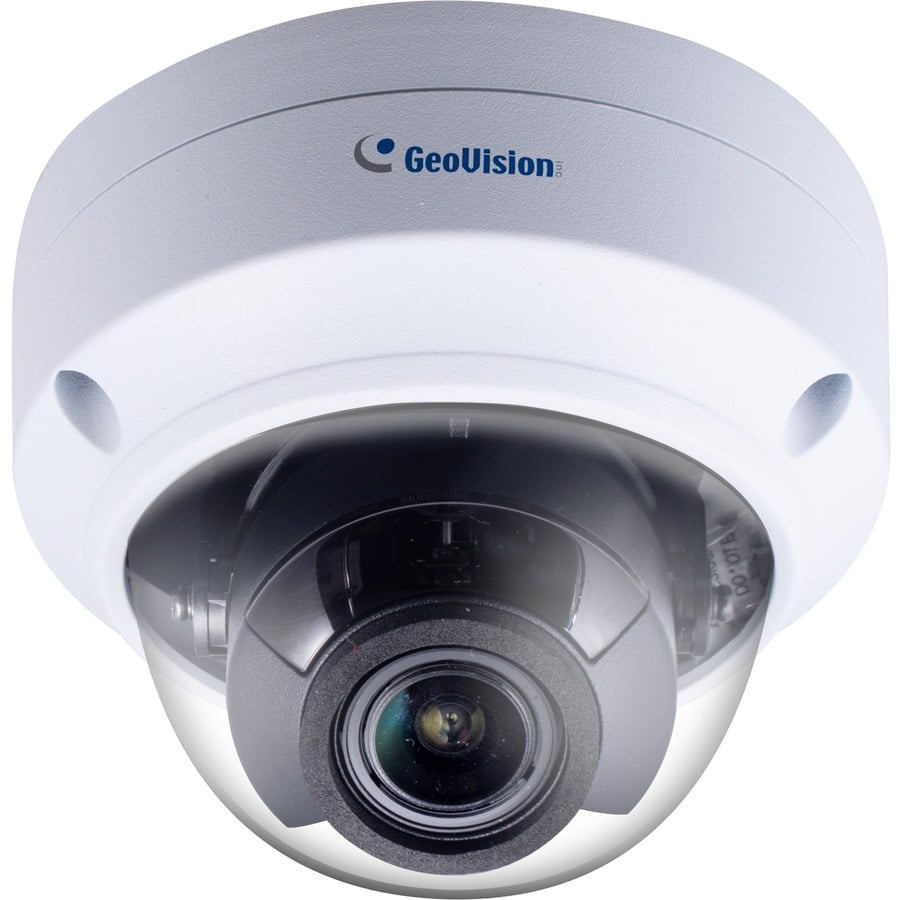

GeoVision 125-TVD4711-000 Security Camera

GeoVision - GV-TVD4711, 4MP, 4.X, LOW LUX WDR, IR VANDAL PROOF DOME CAMERA, H.265.

1/3" progressive scan low lux CMOS
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2688 x 1520
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP66)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$249.15

GeoVision 125-TVD4711-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TVD4711-000 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4711 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.43 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Optical Zoom:

4.3x

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Box Mount
Corner Mount
Pole Mount
In-ceiling

Form Factor:

Dome

Diameter:

Weight (Approximate):

1.26 lb

Environmental Conditions

Minimum Operating Temperature:

-31°F (-35°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Indoor/Outdoor:

Outdoor

Package Contents:

4MP H.265 4.3x Zoom Low Lux WDR Pro IR Vandal Proof IP Dome
Spare Waterproof Rubber Set
Screw Kit
Drill Template Paster
2-Pin Power Terminal Block
Cable Protection Connector
Torx Wrench
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 46171610
