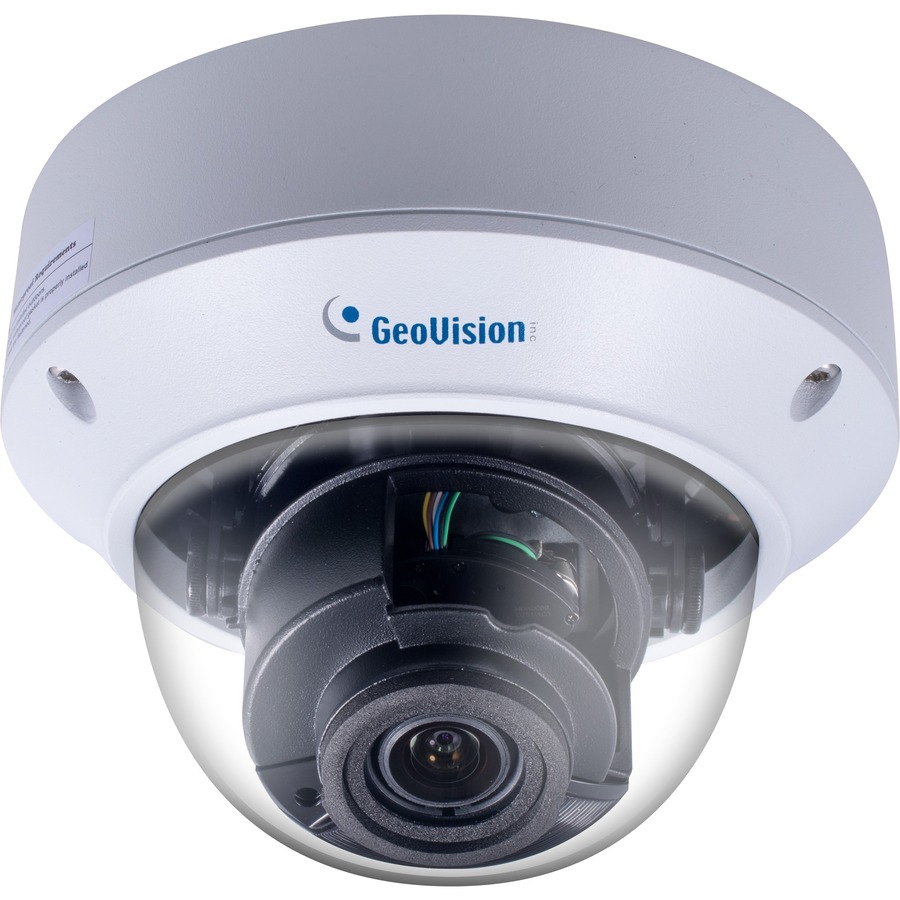

GeoVision 125-TVD8710-000 Security Camera

A newer version of this item is available.
It is replaced by the GeoVision 125-TVD8810-0000 Security Camera.

GeoVision - 8MP, 4.3X, SUPER LOW LUX, WDR PRO, IR VANDAL PROOF DOME, H.265

1/2" progressive scan super low lux CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued See Replacement

GeoVision 125-TVD8710-000 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-TVD8710-000 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98.43 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

Horizontal 114.8 ~ 47.3°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.5

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/1000000 Second

Longest Shutter Speed:

1/6 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Corner Mount
Pole Mount
In-ceiling

Form Factor:

Dome

Durability:

Vandal Proof
Vandal Resistant

Height:

4.4"

Diameter:

5.8"

Weight (Approximate):

1.65 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Ingress Protection
Wide Dynamic Range
Removable IR Cut-off Filter
Built-in IR LED
Day/Night
3-Axis Adjustable
Defog
3D Noise Reduction
Motion Detection
Privacy Masking
Tampering Alarm
Automatic White Balance
Auto Gain Control

Indoor/Outdoor:

Outdoor

Package Contents:

8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Torx Wrench
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

UNSPSC: 46171610
