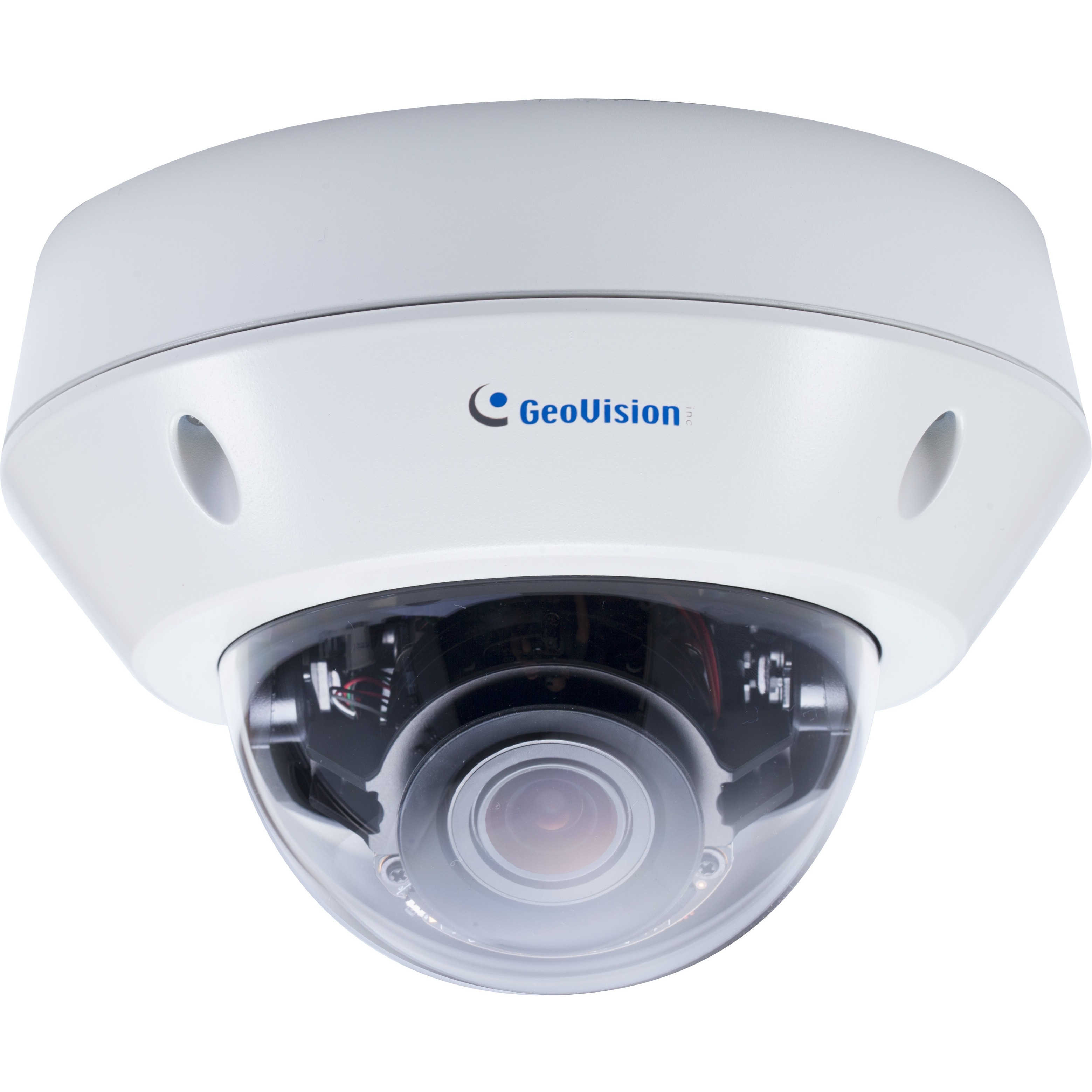

GeoVision 125-VD2702-AW0 Security Camera

The GeoVision 125-VD2702-AW0 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - GeoVision GV-VD2702 2 Megapixel Network Camera - Dome - 98.40 ft Night Vision - MJPEG, H.264, H.265 - 1920 x 1080 - 4.3x Optical - CMOS - Corner Mount, Pole Mount, Bracket Mount, Wall Mount, Ceiling Mount, Conduit Mount, Junction Box Mount

1/2.8" progressive scan super low lux CMOS
Min. illumination at 0.004 lux
Dual streams from H.265, H.264, and MJPEG
Up to 30 fps at 1920 × 1080
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
P-iris lens for auto iris control
Intelligent IR
IR distance up to 30 m (98.4 ft)
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Two-way audio
Wide Dynamic Range Pro (WDR Pro)
3D noise reduction
Smart streaming
Defog
Motion detection
Tampering alarm
Text overlay

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 125-VD2702-AW0 Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 125-VD2702-AW0 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. GV-VD2702 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.40 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Monochrome
Color

Effective Camera Resolution:

2 Megapixel

Video

Video Formats:

MJPEG
H.264
H.265

Maximum Video Resolution:

1920 x 1080

Lens

Lens Type:

Zoom

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Optical Zoom:

4.3x

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Corner Mount
Pole Mount
Bracket Mount
Wall Mount
Ceiling Mount
Conduit Mount
Junction Box Mount

Form Factor:

Dome

Height:

4.3"

Diameter:

6.3"

Weight (Approximate):

2.54 lb

Miscellaneous

Indoor/Outdoor:

Outdoor

Package Contents:

GV-VD2702 2MP H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome
4 x Screw
4 x Screw Anchor
TV-Out Wire
2 x Audio Wires
I/O Cable
Installation Sticker
Conduit Converter
PG21 Conduit Connector
RJ-45 Connector
Waterproof Rubber Sets (for RJ-45 Cat.5 and DC 12V / for RJ-45 Cat.6)
Torx Wrench
Big Concave Hexagon Wrench
Small Concave Hexagon Wrench
Silica Gel Bag
Sticker (for Silica Gel Bag)
Ruler
GV-IPCAM Software DVD
GV-Software DVD
Warranty Card

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 46171610
