GeoVision 140-APOE1611-401U Security Camera

The GeoVision 140-APOE1611-401U Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - LONG DISTANCE, 16 PORT 10/100/1000 MBPS WEB MANAGED BASE, TX POE, WEB SMART POE SWITCH

16-Port 10/100/1000BaseT(X) PoE+ with 2 SFP Uplink Ports and 2 Combo Uplink Ports
IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
Web-based Configuration and Management
VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control
PD Alive Monitor
ONVIF Discover
PoE Schedule
PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
Max. 280 W power consumption
19" Rack-mount

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 140-APOE1611-401U Security Camera

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 140-APOE1611-401U Security Camera Overview

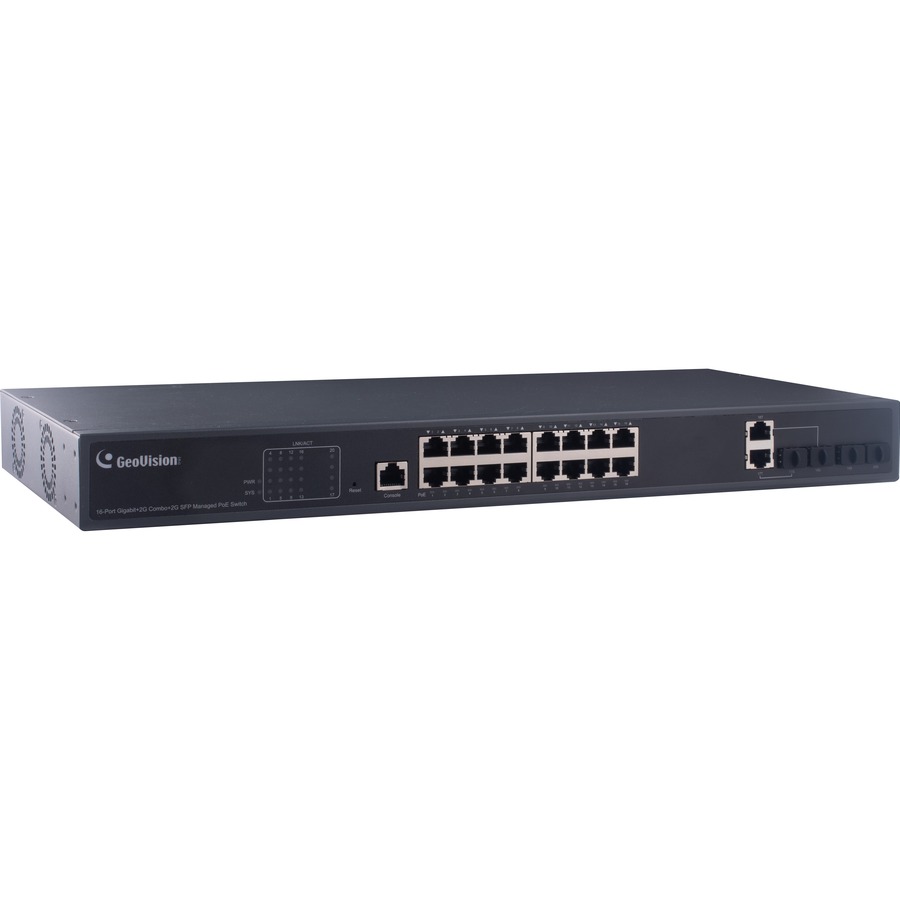

GV-APOE1611-V2 is a 16-Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports and 2 Combo uplink ports. The switch supports IEEE 802.3at Power over Ethernet standard for a maximum power consumption of 280 W. While no special network cables are required for connecting to your powered devices (PD), such as IP cameras, GV-APOE1611-V2 also allows power supply over network cables of up to 250 m (820 ft) in length, at 10 Mbps.

Designed for medium or large network environment to strengthen its network connection and efficiency, the switch provides exceptionally smart Web management features, including VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security and more. In addition, GV-APOE1611-V2 gives you the option of installing it in a 19" cabinet with a rack-mount kit or underneath a desk.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Uplink Port:

Yes

Modular:

Yes

Network (RJ-45):

Yes

Port/Expansion Slot Details:

16 x Gigabit Ethernet PoE+
2 x Gigabit Ethernet Expansion Slot
2 x Gigabit Ethernet TP/SFP Combo

Media & Performance

Media Type Supported:

Optical Fiber
Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

1000Base-T
1000Base-X

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP (mini-GBIC)

Shared SFP Slot:

Yes

Number of SFP Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1D
IEEE 802.1w
IEEE 802.1s
IEEE 802.1x
IEEE 802.3at
IEEE 802.1v

Management & Protocols

Manageable:

Yes

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

250 W

Frequency:

50 Hz
60 Hz

Power Source:

Power Supply

Power Consumption:

280 W

Physical Characteristics

Form Factor:

Rack-mountable
Desktop
Cabinet Mount

Height:

1.7"

Width:

17.3"

Depth:

8.1"

Weight (Approximate):

5.64 lb

Miscellaneous

Package Contents:

GV-APOE1611-V2 16-Port Gigabit Web Management PoE Switch
1 x Power Cord
8 x Screws
Rack Mount Kit
4 x Rubber Feet

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

Item Numbers

UNSPSC: 43222612
