GeoVision 140-IPDECO-P00 Access Control Equipment

The GeoVision 140-IPDECO-P00 Access Control Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision - GeoVision GV-IP Decoder Box Plus - Functions: Video Decoding - 1920 x 1080 - H.264 - VGA - Network (RJ-45) - USB - External

Decode video streams in H.264 codec up to 30 fps
Decode up to 4 megapixel IP cameras
Decode up to 64 IP streams
Automatically search for ONVIF IP devices
Support for third- party IP cameras that adhere to RTSP or ONVIF
Support for fisheye dewarping in Single View and top-left grid of Quad View
Single View, Quad View and 9-Division View in sequential display
Display of Matrix view through GV-Mobile Server
Support for 10/100/1000 Ethernet over LAN
VGA and HDMI Video outputs
Video output resolution up to 1080p
Control PTZ and Speed Dome cameras using GV-Joystick V2
SD card and USB drive for snapshot storage and firmware upgrade
No SD/SDHC card slot & local storage function for Argentina

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

GeoVision 140-IPDECO-P00 Access Control Equipment

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 140-IPDECO-P00 Access Control Equipment Overview

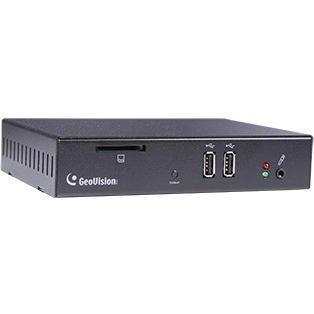

The GV-IP Decoder Box Plus is designed to decode incoming IP streams from GeoVision and third-party IP devices, and to serve as a medium for connecting the cameras and the monitor for video display in Single View, Quad View, and 9-Division View. It supports third-party IP cameras that adhere to RTSP or ONVIF, and can automatically search for ONVIF supported third-party IP devices under the same LAN. To be used with only a monitor, the GV-IP Decoder Box Plus provides a cost-effective solution for video surveillance as opposed to the traditional DVR and PC setup. The security administrator can monitor channels, take snapshots of critical moments, and pause at a channel when events occur. GV-Joystick V2 can be installed to control GeoVision and third-party PT / PTZ / Speed Dome cameras.

Detailed Specs

Technical Information

Functions:

Video Decoding

Maximum Resolution:

1920 x 1080

Video Formats:

H.264

Interfaces/Ports

USB:

Yes

HDMI:

Yes

VGA:

Yes

Network (RJ-45):

Yes

Physical Characteristics

Form Factor:

External

Height:

1.4"

Width:

6.4"

Depth:

4.2"

Weight (Approximate):

1.22 lb
