GeoVision 520-CS1320-000 Accessory

GeoVision - GV-CS1320, 2MP H.264 CAMERA READER CONTROLLER

With its convenient to use technology as well as the user-friendly operational capability, this Card Reader Access Device provides optimal card reading functionality productivity
With proximity technology get highly-secure access with outstanding and consistent performance
Perfect access control solution for door
The door-mountable form factor provides convenient installation

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$397.97

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision 520-CS1320-000 Accessory Overview

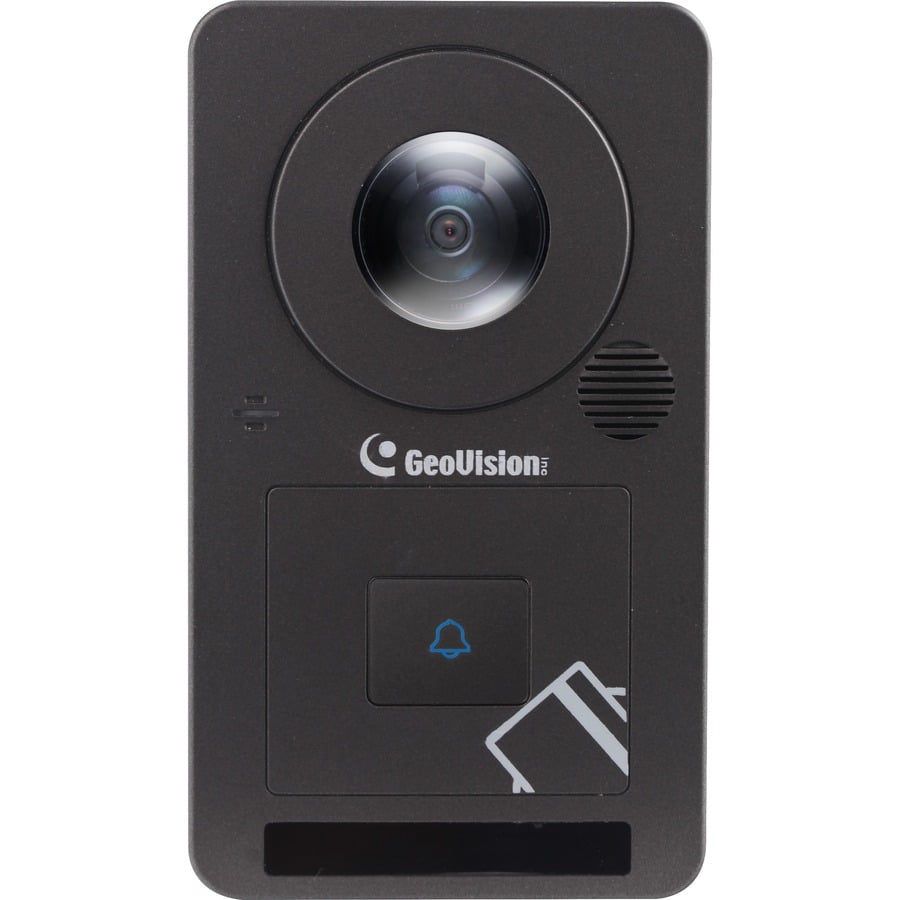

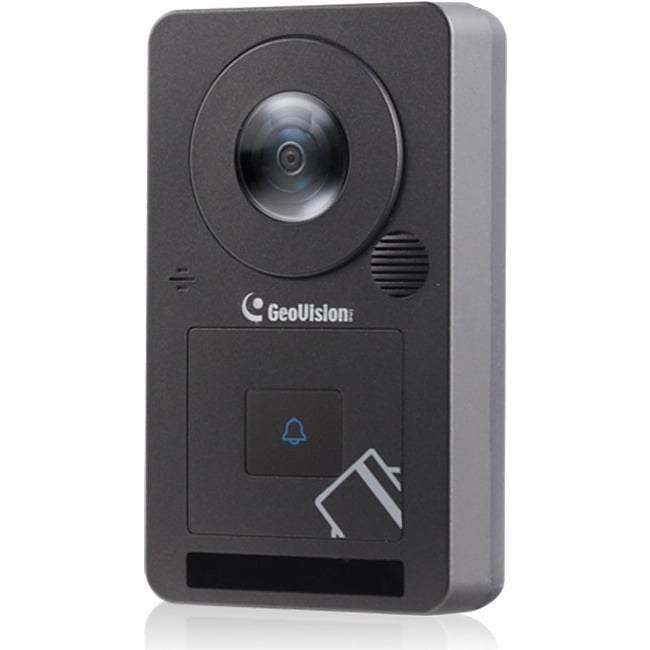

GV-CS1320 is an access controller with a built-in 2 MP camera and 13.56 MHz reader. GV-CS1320 recognizes access control cards and grants access to up to 100,000 users accordingly. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager over a network, without the need of installing and maintaining a separate camera in addition to the camera access controller.

Three types of notifications are available for the operator to communicate with visitors at the door installed with GV-CS1320 and grant access: SIP/VoIP Calling, GV-ASNotify PC program and GV-Access mobile app.

For VoIP Calls, when its touchpad is activated, GV-CS1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door. Additionally, GV-CS1320 supports the Card and Face mode to perform face detection together with card verification before access can be granted.

Detailed Specs

Technical Information

Identification Method:

Proximity
Face Detection

Number of Users:

100000

Operating Range:

10 ft

Number of Doors:

Application/Usage:

Door

Ingress Protection (IP) Rating:

IP66

Network & Communication

Ethernet Technology:

Fast Ethernet

Interfaces/Ports

Network (RJ-45):

Yes

Serial:

Yes

Wiegand:

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Door-mountable

Height:

5.4"

Width:

3.1"

Depth:

1.4"

Weight (Approximate):

11.11 oz

Miscellaneous

Package Contents:

2MP H.264 Camera Access Controller with a built-in Reader
Mounting Plate
Standard Screw x 2
Plastic Screw Anchor x 2
Security Screw
Torx Wrench
Silica Gel Bag
Micro SD Card 2 GB (formatted and installed)
Software DVD
Warranty Card

Compatibility:

Mifare DESFire
MIFARE Plus
MIFARE Classic

Environmentally Friendly:

Yes

NDAA Compliant:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

GTIN: 4712896443729

EAN: 4712896443729

UNSPSC: 46171600
