GeoVision 81-IRBIB25-0010 Products

The GeoVision 81-IRBIB25-0010 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

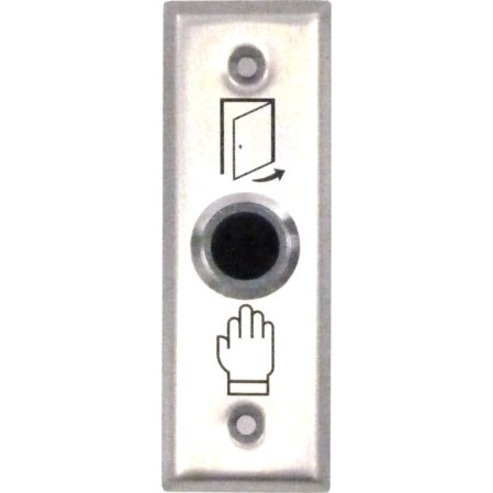

GeoVision  -  MODEL GV-INFRARED BUTTON, IB-25 INFRARED BUTTON SLIM TYPE (4.53 X 1.54 X 1.18 IN)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
GeoVision 81-IRBIB25-0010 Products
GeoVision 81-IRBIB25-0010 Products
GeoVision 81-IRBIB25-0010 Products GeoVision 81-IRBIB25-0010 Products
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 81-IRBIB25-0010 Products Overview
The GV-IB25 / GV-IB65 / GV-IB85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of handThe touchless sensor eliminates the need to contact the button and keeps your hands clean when entering or exiting places such as hospitals, restaurants or storesIn addition, the built-in relay function allows you to program the door opening time to enhance security.

KEY FEATURES
  • Activates without pressing the button to prevent spread of diseases
  • Specially designed to prevent any interference from other infrared
  • Double color status light and adjustable proximity range
  • Door opening time can be set as trigger state (0.5~20 sec) or toggle mode output
  • Operating temperature: -10°C ~ +70°C / 14°F ~ 158°F
  • Sealing protection: IP65
  • Infrared proximity has a total lifespan of 100,000 hoursRelay has a total lifespan of 1,000,000 times
Technical Information
Minimum Timer Duration:
500 ms
Maximum Timer Duration:
20 Second
Minimum Proximity Range:
1.18"
Maximum Proximity Range:
4.72"
Features:
  • Infrared Receiver
  • LED Indicator
  • Time Delay
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
158°F (70°C)
Physical Characteristics
Product Material:
Stainless Steel
Height:
4.5"
Width:
1.5"
Depth:
1.2"
Weight (Approximate):
2.47 oz
Miscellaneous
Package Contents:
  • GV-IB25 Touch-free Button
  • 1 x 5-pin Connector
  • 2 x Phillips Screw
  • 1 x Installation Guide
Application/Usage:
  • Door
  • Hospital
  • Restaurant
  • Store
Certifications & Standards:

Energy Star Compliant

Country of Origin:
Taiwan
Item Numbers
GTIN: 4717095102972
EAN: 4717095102972
