GeoVision 84-VD122-D03U Products

The GeoVision 84-VD122-D03U Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

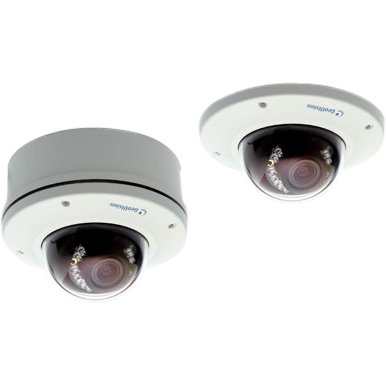

GeoVision - GeoVision GV-VD122D Network Camera - Dome - H.264, MJPEG - 1280 x 1024 - 3x Optical - CMOS - Fast Ethernet

For remote surveillance needs, this network camera is best suited
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Up to 1280 x 1024 video resolution

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3"

White Balance Modes:

Auto
Manual

Minimum Illumination:

0 lux

Color Supported:

Color
Monochrome

Tilt:

90° to 10°

Swivel:

0° to 350°

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

1280 x 1024

Maximum Frame Rate:

30 fps

Audio

Audio Formats:

AAC

Lens

Lens Type:

Zoom

Minimum Focal Length:

3 mm

Maximum Focal Length:

9 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.3

Optical Zoom:

Focus Modes:

Manual

Exposure

Shortest Shutter Speed:

1/8000 Second

Longest Shutter Speed:

1/5 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

HTTP
HTTPS
TCP
UDP
SMTP
FTP
DHCP
NTP
UPnP
DynDNS
3GPP
ISMA
RTSP
PSIA
SNMP
QoS
DSCP
ONVIF

Power Description

Maximum Power Consumption:

12 W

Physical Characteristics

Form Factor:

Dome

Durability:

Vandal Resistant
Vandal Proof

Height:

4.9"

Diameter:

6.5"

Weight (Approximate):

3.75 lb

Miscellaneous

Features:

Motion Detection
Dual Stream

System Requirements:

Supported Phones: iPhone, iPad, Android & 3GPP

Certifications & Standards:

CE
FCC
C-Tick
IK7
IP66

Impact Protection Rating:

IK07

Ingress Protection Rating:

IP66

Security Features:

IP Address Filtering

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 46171610
