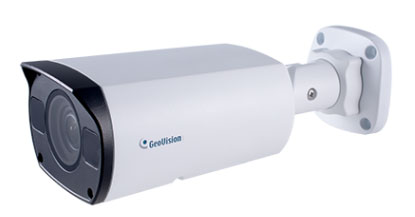

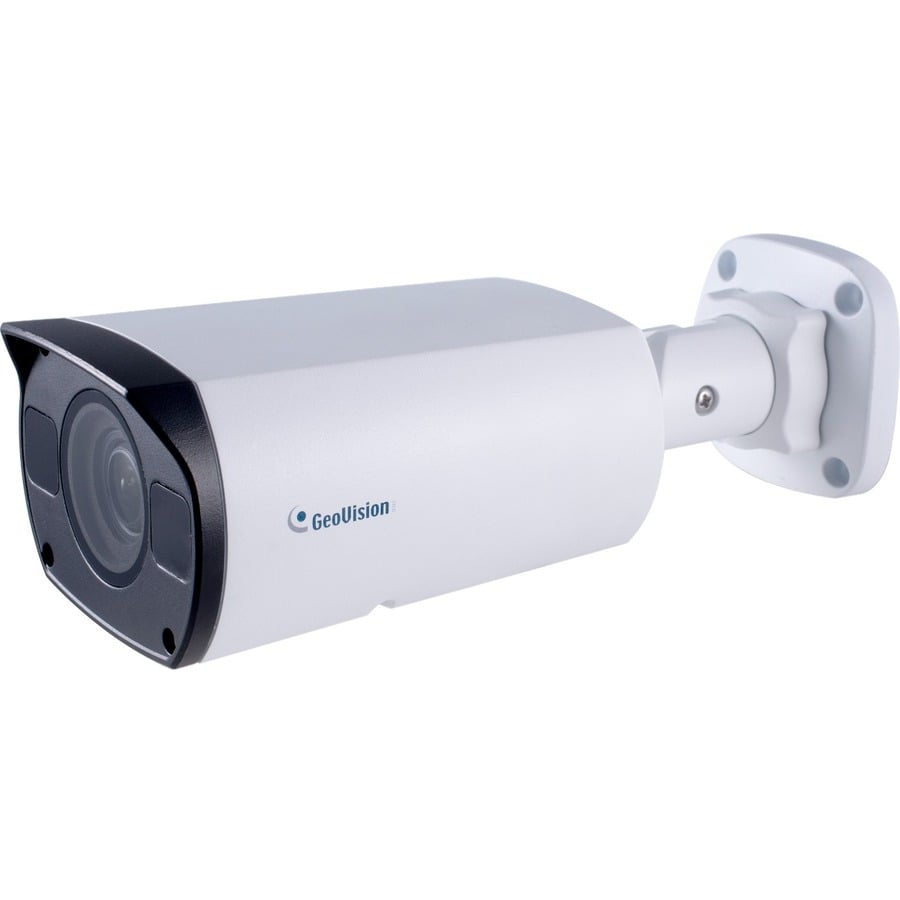

GeoVision GV-TBL8810 Security Camera

GeoVision GV-TBL8810 - Security Cameras, GeoVision GV-TBL8810, 8 Megapixel HD Network Camera, Bullet, 164.04', H.265, H.264, MJPEG, 3840 x 2160, 2.80 mm Varifocal Lens, 4.3x Optical, CMOS, Vehicle Mount, Corner Mount, Wall Mount, Bracket Mount, Pole Mount, Vandal Resistant, Water Proof

AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8" progressive scan low lux CMOS sensor
Triple streams from H.265, H.264 or MJPEG
Wide Dynamic Range Pro (WDR Pro)
Min. illumination at 0.003 lux
Up to 20 fps at 3840 x 2160, 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 50 m (165 ft)
Day and night function (with removable IR-cut filter)
Vandal Resistance (IK10 for metal casing)
Ingress protection (IP67)
Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
Two-way audio
DC 12V / PoE (IEEE 802.3af)
ONVIF (Profile G, S, T) conformant

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$478.68

In Stock

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision GV-TBL8810 Security Camera Overview

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8810 adheres to IK10 and P67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

164.04 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

31 ~ 96°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.6

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/12 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Vehicle Mount
Corner Mount
Wall Mount
Bracket Mount
Pole Mount

Form Factor:

Bullet

Durability:

Vandal Resistant
Water Proof

Weight (Approximate):

2.20 lb

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Wide Dynamic Range
Built-in IR LED
Day/Night
Ingress Protection
SD Card Local Storage
Motion Detection
Tampering Alarm
Audio Detection
Audio Compression
Cross Line Detection
HTTPS Encryption

Indoor/Outdoor:

Outdoor

Package Contents:

GV-TBL8810 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

Taiwan

Item Numbers

GTIN: 4712896442333

EAN: 4712896442333

UNSPSC: 46171610
