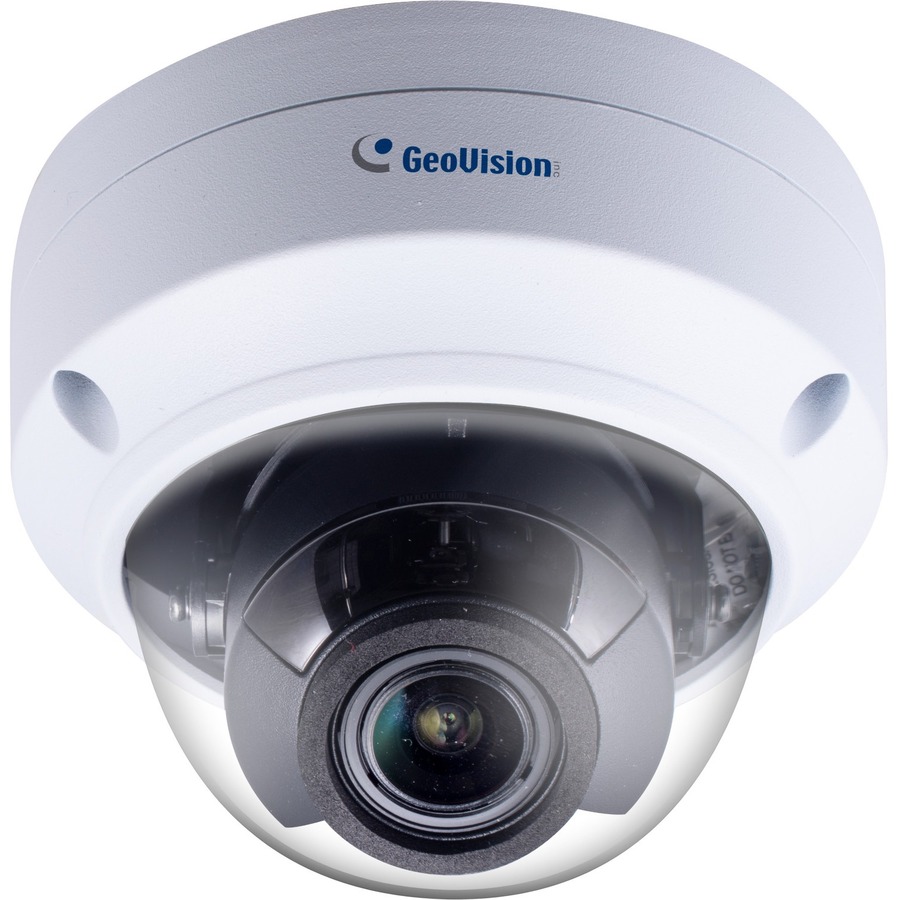

GeoVision GV-TVD4711 Security Camera

The GeoVision GV-TVD4711 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GeoVision GV-TVD4711 - Security Cameras, GeoVision GV-TVD4711, 4 Megapixel HD Network Camera, Dome, 98.43 ft, H.265, H.264, MJPEG, 2688 x 1520, 2.80 mm Varifocal Lens, 4.3x Optical, CMOS, Pendant Mount, Wall Mount, Junction Box Mount, Bracket Mount, Box Mount, Corner Mount, Pole Mount, In-ceiling, Vandal Resistant, Vandal Proof

1/3" progressive scan super low lux CMOS
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2688 x 1520
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP66)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision GV-TVD4711 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4711 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

98.43 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color
Monochrome

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.6

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/6 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pendant Mount
Wall Mount
Junction Box Mount
Bracket Mount
Box Mount
Corner Mount
Pole Mount
In-ceiling

Form Factor:

Dome

Durability:

Vandal Resistant
Vandal Proof

Diameter:

Weight (Approximate):

1.26 lb

Environmental Conditions

Minimum Operating Temperature:

-31°F (-35°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Day/Night
Ingress Protection
Defog
3D Noise Reduction
Motion Detection
Tampering Alarm
Privacy Masking
Audio Compression
Built-in IR LED

Indoor/Outdoor:

Outdoor

Package Contents:

4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
Spare Waterproof Rubber Set
Screw Kit
Drill Template Paster
2-Pin Power Terminal Block
Cable Protection Connector
Torx Wrench
Download Guide
Warranty Card

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Country of Origin:

Taiwan

Warranty

Limited Warranty:

24 Month

Item Numbers

GTIN: 4712896448946

EAN: 4712896448946

UNSPSC: 46171610
