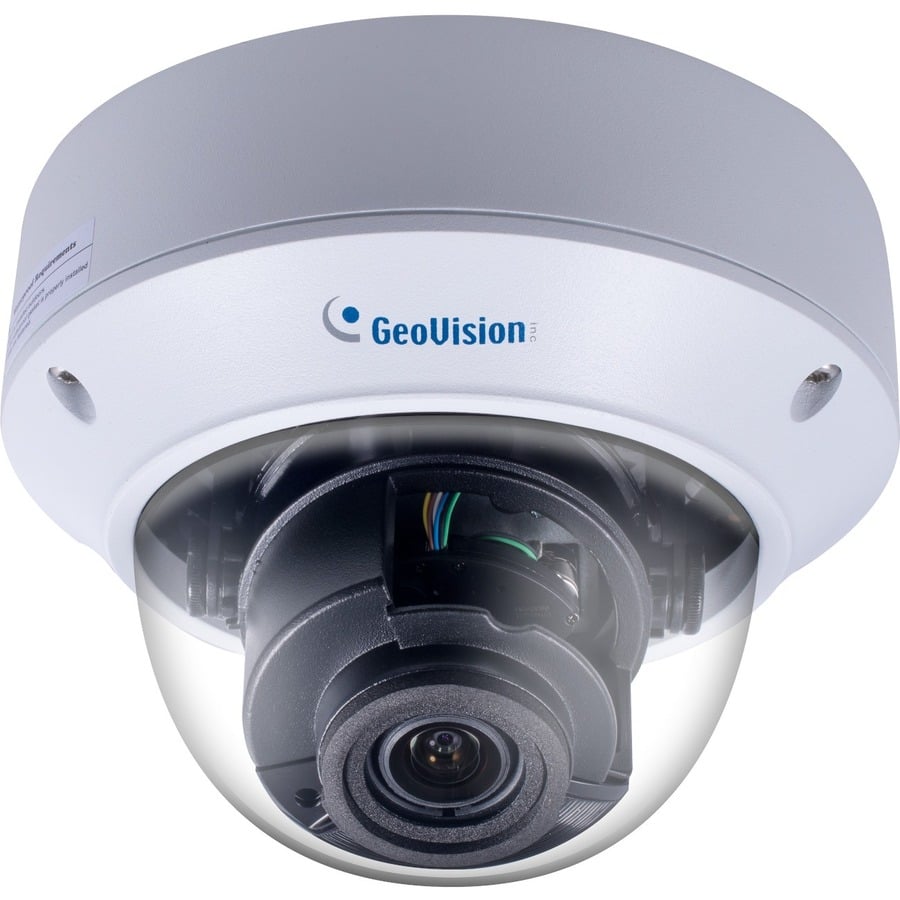

GeoVision GV-TVD8810 Security Camera

GeoVision GV-TVD8810 - Security Cameras, GeoVision GV-TVD8810, 8 Megapixel Outdoor 4K Network Camera, Color, Dome, 131.23 ft Infrared Night Vision, H.265, H.264, MJPEG, 3840 x 2160, 2.80 mm- 12 mm Varifocal Lens, 4.3x Optical, CMOS, Wall Mount, Bracket Mount, Pendant Mount, Junction Box Mount, Corner Mount, Pole Mount, In-ceiling, Power Box Mount, IK10, IP67, Vandal Proof, Vandal Resistant

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8" progressive scan super low lux CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 3840 x 2160
Intelligent IR
IR distance up to 40 m (130 ft)
Day and Night function (with removable IR-cut filter)
Motorized varifocal lens for remote focus / zoom adjustment
Wide Dynamic Range Pro (WDR Pro)

Need a different version? See all GeoVision Parts Accessories

Chat Now for Qty Discount

Add to Quote

$445.02

Overview

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.

GeoVision GV-TVD8810 Security Camera Overview

AI Deep-Learning IP Camera

The Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TVD8810 adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

131.23 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

34 ~ 106°

Effective Camera Resolution:

8 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

3840 x 2160

Maximum Frame Rate:

30 fps

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.80 mm

Maximum Focal Length:

12 mm

Lens Included:

Yes

Lens Mount Type:

Φ14

Maximum Aperture:

f/1.6

Optical Zoom:

4.3x

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Mount Type:

Wall Mount
Bracket Mount
Pendant Mount
Junction Box Mount
Corner Mount
Pole Mount
In-ceiling
Power Box Mount

Form Factor:

Dome

Durability:

Vandal Proof
Vandal Resistant

Diameter:

5.8"

Weight (Approximate):

15.87 oz

Environmental Conditions

Minimum Operating Temperature:

-22°F (-30°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Built-in Microphone
SD Card Local Storage
Ingress Protection
Audio Compression
Day/Night
Wide Dynamic Range
Auto Gain Control
Face Detection
Audio Detection
Motion Detection

Indoor/Outdoor:

Outdoor

Package Contents:

GV-TVD8810 IR Vandal Proof Dome
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Torx Wrench
Download Guide

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP67

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

24 Month

Item Numbers

GTIN: 4712896449462

EAN: 4712896449462

UNSPSC: 46171610
