HID Parts Accessory Model Overview
Products and parts from HID.
HID 4033BGN00 Access Control Cards Overview
Allows HID readers to be economically installed on a CASI-RUSCO system. Using one interface module per reader, up to sixteen HID proximity, Wiegand, magnetic stripe, or iCLASS readers may be connected to two CASI-RUSCO 8RP Interface Boards in any Micro/5 Control Panel.

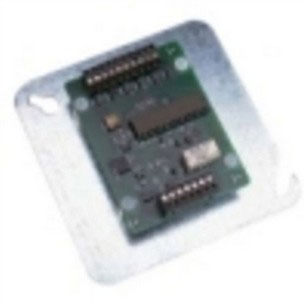

The HID 4033 Adapter Module duplicates special functions provided by CASI- RUSCO systems, such as Request to Exit (REX), Door Monitor inputs, Door Strike output, and reader presence supervision.
Physical Characteristics
Miscellaneous
Additional Information:
- Monitors door position and request to exit inputs
- Compact unit mounts in standard dual-gang J-Box with coverplate
- Supports Reader Status supervision feature in new HID proximity readers
- The HID 4033 interface adapter for CASI systems converts wiegand card data into CASI-RUSCO F2F data
- Power requirements: 12-18 VDC
- Operating temperature: -22°F to 150°F (-30°C to 65°C)
- Operating humidity: 5% to 95% relative humidity non-condensing
Item Numbers
GTIN:
0653590545286
UPC:
653590545286
EAN:
0653590545286
UNSPSC:
39121900
