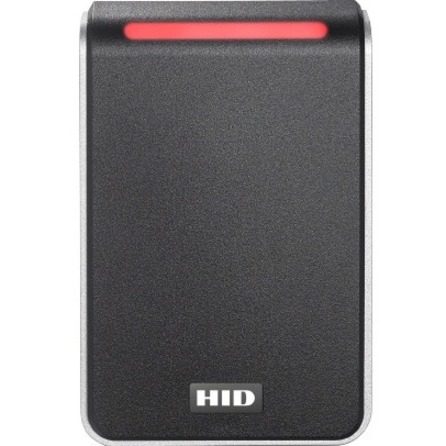

HID 40HTKS-03-0004XR Access Control Reader

HID  -  SIGNO 40 PIV, BLK/SLVR, TERM, CRD PFL CSTM, FIPS200BIT, BLE: OFF, OSDP, V2, TM, CSN SUPR, EM: 32-B, LED: OFF, FLSH: OFF, NOBZR, SRF: ON, IPM: OFF, VEL: OFF
  • Mobile-ready by default, including Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet
  • Sleek, innovative design to suit modern architecture
  • Integrated OSDP for secure authentication and configuration post installation
  • Built on a hardware platform designed to be adaptable to support future technology
  • Designed to seamlessly integrate into the HID Origo® ecosystem
Read More
Add to Quote
$342.28
HID Parts Accessory Model Overview
Products and parts from HID.
HID 40HTKS-03-0004XR Access Control Reader Overview

THE SIGNATURE LINE OF READERS FROM HID GLOBAL

  • Highly Versatile - Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
  • Unparalleled Performance - Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
  • Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.

Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any
scenario.

With support for the widest array of credential technologies - past, present and future - HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology.

HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.

POWERFULLY SECURE
  • Multi-Layered security to ensure data authenticity and privacy
  • EAL5+ Certified Secure Element Hardware
  • Native OSDP secure channel capability
  • Trusted secure authentication using the SIO data model
  • Supports iCLASS Elite™ and Corporate 1000 Programs
MEET EVERY NEED, ADAPT TO ANY SITUATION
  • Go mobile with native Bluetooth and NFC support
  • Integrated 125 kHz credential read support for easy migration
  • Supports over 15 common credential technologies
  • Flush mount terminal block and pigtail wiring options
  • Robust outdoor performance with an IP65 rating
MANAGE, UPGRADE AND CONFIGURE
  • Easily and securely managed using HID Reader Manager®
  • Configure via a mobile device or OSDP
  • Update firmware in response to threats
  • Personalize by configuring audio visual or keypad settings
  • Deactivate legacy credential technology to conclude secure migration
Technical Information
Identification Method:
Proximity
Operating Range:
3.94"
Application/Usage:
  • Door
  • Indoor
  • Outdoor
Ingress Protection (IP) Rating:
IP65
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Serial:
Yes
Wiegand:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Gang Box Mount
  • Wall Mountable
Product Color:
  • Black
  • Silver
Height:
4.8"
Width:
3.2"
Depth:
0.8"
Weight (Approximate):
4.23 oz
Miscellaneous
Compatibility:
  • Mobile Credentials powered by Seos® (HID Mobile Access)
  • Seos
  • iCLASS SE
  • iCLASS SR
  • iCLASS
  • MIFARE Classic
  • MIFARE DESFire EV1/EV2
  • FeliCa
  • Contactless e-Purse Application Specification (CEPAS)
  • HID Proximity
  • Indala Proximity
  • AWID Proximity
  • EM Proximity
Country of Origin:
Mexico
Item Numbers
UNSPSC: 46171600
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The HID 40HTKS-03-0004XR Access Control Reader is also known as HID-40HTKS030004XR
