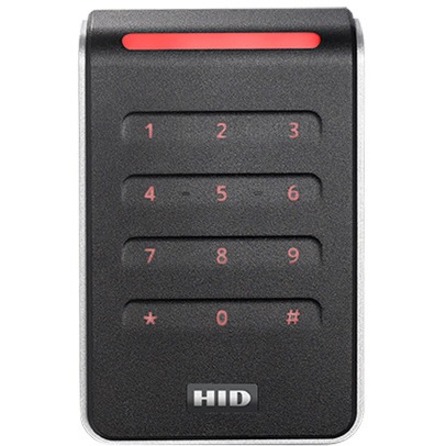

HID 40KNKS-00-00003W Access Control Reader

HID  -  SIGNO 40K, BLK/SLVR, PIG, CRD PFL STD, WIEG, 32-B MSB, CPLT, 26-B MSG, Parallel, LEN: 5, FC: 255, EM: 32-B, LED: RED, KBD: RED, BZR, VIS: ON, SRF: ON, IPM: OFF, VEL: OFF, TAP
  • With its card reading and keypad capability this card reader/keypad access device provides access control and security assurance
  • By using proximity technology this card reader/keypad access device provides robust and affordable security
  • Widely used for door access control
  • Designed to be used as a gang box mount
Read More
Add to Quote
$486.11
HID Parts Accessory Model Overview
Products and parts from HID.
HID 40KNKS-00-00003W Access Control Reader Overview

The HID Signo Keypad Reader 40K is a founding member of the Signo platform. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.

A perfect fit for multi-factor authentication door applications requiring a narrow keypad reader, the HID Signo Keypad Reader 40K supports an unparalleled range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

Key Features

  • Highly Versatile - Support for the widest range of credential technologies, including HID Mobile Access via native Bluetooth and Near Field Communication (NFC) capability. Also features Apple's Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet.
  • Unparalleled Performance - Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance.
  • Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Each reader is also designed to be connected and managed remotely without "sneakernet" or the need to be physically touched.

Moreover, HID Signo Readers are simple to order and install, making the upgrade process easy for everyone.

Technical Information
Identification Method:
  • Proximity
  • Key Code
Operating Range:
3.94"
Application/Usage:
  • Door
  • Indoor
  • Outdoor
Ingress Protection (IP) Rating:
IP65
Interfaces/Ports
Serial:
Yes
Wiegand:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Gang Box Mount
Color:
  • Black
  • Silver
Height:
4.8"
Width:
3.1"
Depth:
0.8"
Weight (Approximate):
5.64 oz
Miscellaneous
Compatibility:
  • Mobile Credentials powered by Seos® (HID Mobile Access)
  • Seos
  • iCLASS SE
  • iCLASS SR
  • iCLASS
  • MIFARE Classic
  • MIFARE DESFire EV1/EV2
  • FeliCa
  • Contactless e-Purse Application Specification (CEPAS)
  • Mobile Credentials powered by Seos (HID Mobile Access)
  • HID Proximity
  • Indala Proximity
  • AWID Proximity
  • EM Proximity
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 46171600
