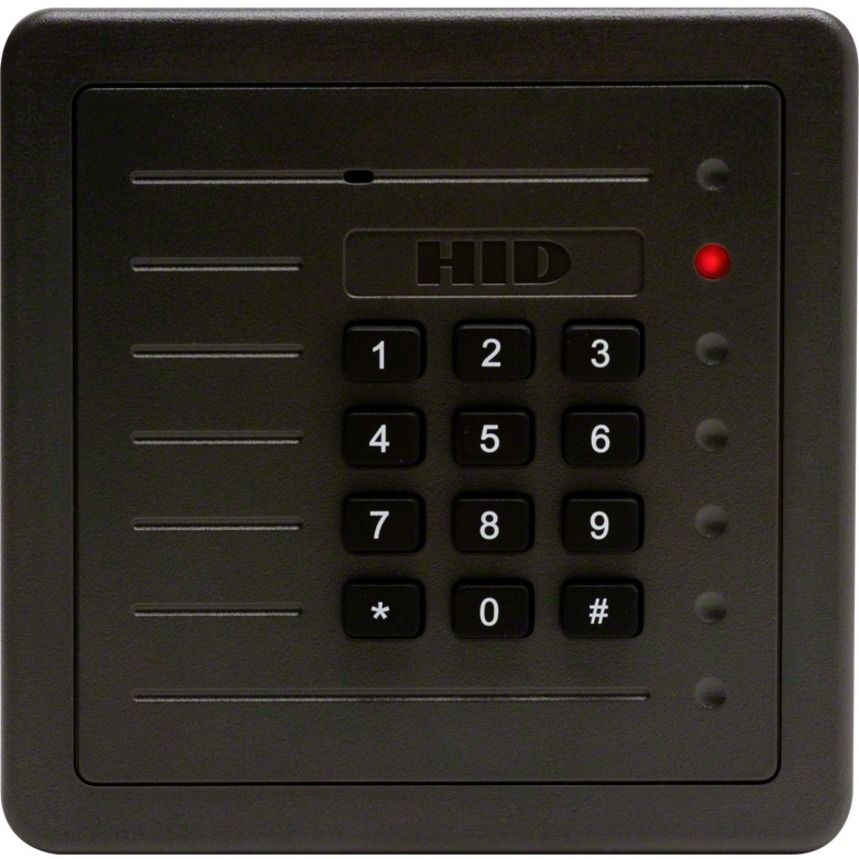

HID 5355A-306-02 Access Control Reader

The HID 5355A-306-02 Access Control Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

HID - HID ProxPro with Keypad 5355 - Proximity - 24 V DC

With its convenient to use technology as well as the user-friendly operational capability, this Card Reader Access Device provides optimal card reading functionality productivity
The proximity technology delivers powerful and heightened security with convenience, affordability, and reliability
Wall mountable form factor Card Reader Access Device makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system to allow convenient usage

Need a different version? See all HID Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

HID Parts Accessory Model Overview

Products and parts from HID.

HID 5355A-306-02 Access Control Reader Overview

The ProxPro® proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.

Ideal for medium-range applications.
Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.
Sealed for indoor or outdoor use.
Optional glass mount kit available for mounting the reader behind glass.
Available in gray or beige.
Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix.

Affords high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.
Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation.
Provides Wiegand protocol interface compatibility with all standard access control systems.
Offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).

Detailed Specs

Technical Information

Identification Method:

Proximity

Features:

Weather Proof

Controls/Indicators

Indicators & Controls:

LED Indicators
Beeper

Power Description

Input Voltage:

24 V DC

Input Current:

120 mA

Physical Characteristics

Form Factor:

Wall Mountable

Product Color:

Beige

Height:

Width:

Depth:

Weight (Approximate):

12 oz

Miscellaneous

Additional Information:

Cable Distance

Wiegand or Clock and Data interface: 500 feet (152 m)
RS-232 interface: 50 feet (15 m)
RS-422 interface: 4000 feet (1219 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.
Additional conductors may be required for LED or beeper control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded cable with drain wire, or equivalent for data, plus ALPHA 1292C two-conductor shielded or equivalent for DC power.

Typical maximum* read range

ProxCard® II Card - up to 8" (20 cm)
ISOProx® II Card - up to 7" (17.5 cm)
DuoProx® II Card - up to 7" (17.5 cm)
Smart ISOProx® II Card - up to 7" (17.5 cm)
Smart DuoProx® II Card - up to 7" (17.5 cm)
HID Proximity & MIFARE® card - up to 7" (17.5 cm)
ProxCard® Plus Card - up to 3" (7.5 cm)
ProxKey® II Keyfob - up to 3" (7.5 cm)
MicroProx® Tag - up to 4" (10.2 cm)
ProxPass® Active Vehicle Tag - N/A

Certifications & Standards:

Canada/UL 294 Listed: Access Control System Units
FCC Certification, United States
Canada Certification
CE Mark, Fifteen EU Countries under the R&TTE
Directive (EN60950 - ITE Electrical Safety, EN 300 330 - SRD, and ETS 300 683 - EMC)
IEC60950, ITE CB Scheme Electrical Safety
Australia C-Tick Mark, New Zealand EMC, China
Taiwan (5355 only)

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 46171600, 46171619
