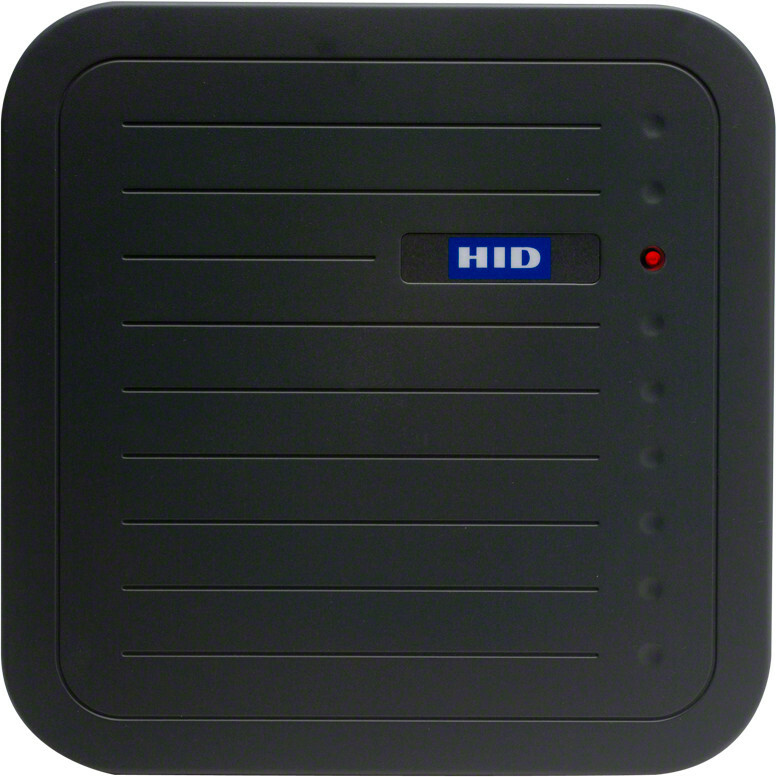

HID 5375AGN04 Access Control Reader

HID  -  HID MaxiProx 5375 - Proximity - 6" Operating Range - 24 V DC
  • With its convenient to use technology as well as the user-friendly operational capability, this Card Reader Access Device provides optimal card reading functionality productivity
  • By using proximity technology this card reader access device provides robust and affordable security
Read More
Add to Quote
$793.78
HID Parts Accessory Model Overview
Products and parts from HID.
HID 5375AGN04 Access Control Reader Overview

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

  • Long read range distance (up to 6' with ProxPass).
  • Autotune allows read range to be maintained within four inches of metal.
  • Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable.
  • "Parking hold" feature ensures accurate detection of vehicles in parking lanes.
  • Power requirements: 12 or 24 VDC (configurable) .
  • Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
  • Dimensions: 12.0" x 12.0" x 1.0" (30.5 x 30.5 x 2.54 cm).
Technical Information
Identification Method:
Proximity
Operating Range:
6"
Controls/Indicators
Indicators & Controls:
  • Multicolor LED
  • Beeper
Power Description
Input Voltage:
24 V DC
Input Current:
260 mA
Physical Characteristics
Product Material:
Polycarbonate
Product Color:
Gray
Height:
12"
Width:
12"
Depth:
1"
Weight (Approximate):
3.19 lb
Miscellaneous
Additional Information:
  • Wiegand interface: 500 feet (152 m)
  • Long read range distance (up to 6' with ProxPass).
  • Autotune allows read range to be maintained within four inches of metal.
  • Wiegand, Clock-and-Data and selectable serial outputs available.
  • "Parking hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
  • Compatible with all HID cards and tags with formats up to 85 bits.
  • Multicolor LED with internal or host control of the LED and beeper.
  • Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
  • Reader supervision signal for CASI-RUSCO panels.
Compatibility:
ProxCard II Card - up to 24" (60.9 cm)
ISOProx II Card - up to 20" (50.8 cm)
DuoProx II Card - up to 20" (50.8 cm)
Smart ISOProx II - up to 20" (50.8 cm)
Smart DuoProx II Card - up to 20" (50.8 cm)
HID Proximity MIFARE Card - up to 20" (50.8 cm)
ProxCard®Plus Card - up to 13" (33 cm)
ProxKey II Keyfob - up to 17" (43.2 cm)
Microprox Tag - up to 15" (38 cm)
ProxPass Active Vehicle Tag - up to 6' (1.8 m)
Certifications & Standards:
  • Canada/UL 294 Listed: Access Control System Units
  • FCC Certification, United States
  • Canada Certification
  • CE Mark, Fifteen EU Countries under the R&TTE
  • Directive (EN60950 - ITE Electrical Safety
  • EN 300 330 - SRD, and ETS 300 683 - EMC)
  • IEC60950
  • ITE CB Scheme Electrical Safety
  • Australia C-Tick Mark
  • New Zealand EMC
  • IP55
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 46171600, 46171619
