HID 83000BKE Access Control Equipment

The HID 83000BKE Access Control Equipment has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

HID - HID EdgePlus Solo 83000BKE Card Reader Access Device

Need a different version? See all HID Parts Accessories

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

HID Parts Accessory Model Overview

Products and parts from HID.

HID 83000BKE Access Control Equipment Overview

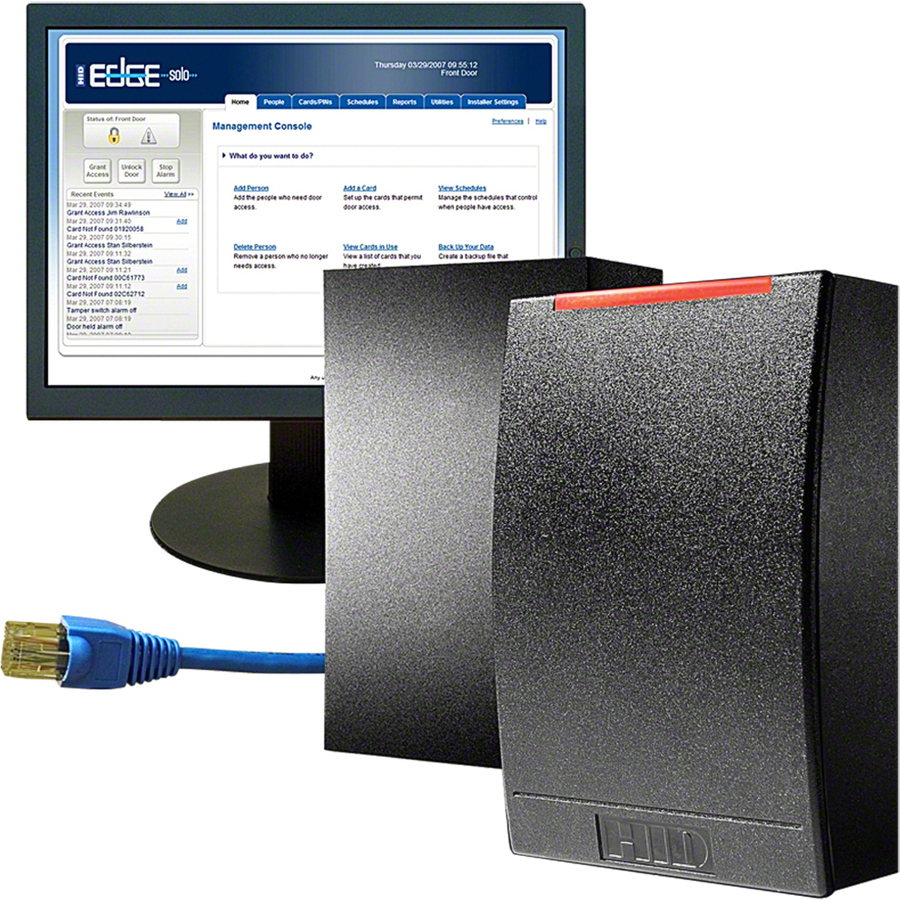

The HID EdgePlus IP Access Solution puts control and user interface right at the door. The EdgePlus Solo ES400 is a cost-effective, stand-alone, single-door IP access control solution. This easy-to-use solution enables remote management and report generation via standard web browser. User information, administration, door configuration and retrieval of events are done through a user-friendly, instructional web environment. Providing "Intelligence at the Door" , the flexible EdgePlus Solo ES400 offers a wide choice of card reader compatibility. And the EdgePlus Solo ES400 IP Access Solution can be converted from stand-alone operation to a system reader for a host environment quickly and easily through the web browser. There is never a need to go to the door.

Detailed Specs

Physical Characteristics

Color:

Black

Height:

4.8"

Width:

3.3"

Depth:

1.5"

Weight (Approximate):

6.80 oz

Miscellaneous

Additional Information:

Embedded user interface, no external software requirement
Remotely managed via standard web browser
Works within DHCP or Static IP networks for plug and play installation
"Door Dashboard" accesses door commands, status, alarms, and recent events from all screens
Back-up and restore of data from user PC
Built-in diagnostics
Installer "calling card" allows inclusion of contact information for user support
User upgradable firmware
Built-in help screens
Manages 1000 cardholders/credentials
Manages 8 schedules and 3 intervals each day of the week including holidays
View last 5000 events
Standardized report generation, including CSV export
Built-in 802.3af power over Ethernet (PoE), with 600 mA available for external field devices and locking hardware
Wet or dry door relays
Permits local laptop computer connections for diagnostics and configuration
Visual indicators Two LEDs indicate power/network activity and device I/O activity
Power supply requirements 1 A @ 12-16 VDC maximum
Operating Temperature 32° to 122° F (0° to 50° C)
Operating Humidity 5% to 95% relative, non-condensing
Communication Ports Ethernet 10 or 100 Mbps
Externally-mounted reader

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

18 Month

Item Numbers

UNSPSC: 46171600, 46171619

Reviews

Q&A

Questions? Get help from
an ID Expert!

The HID 83000BKE Access Control Equipment is also known as HID-83000BKE or 83000BKE.
