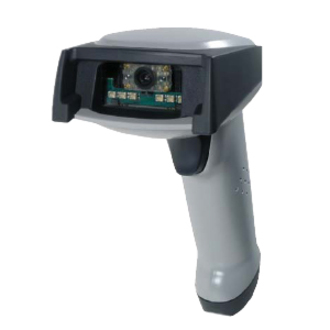

Honeywell 4600GSF031CE Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell 1900GSR-2 Barcode Scanner.

Honeywell 4600g - Special Focus Area Imager, True RS232 and 12V DEC Wedge). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).

Scanner Capability

Incredible and responsive 2D scanning even on curved or translucent surfaces
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Laser-free design provides high-performance scanning without the risk of eye injury
Wired connectivity makes this scanner ideal for retail and desktop applications

Need a different version? See all Honeywell 4600g Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Honeywell 4600g Barcode Scanner Model Overview

The 4600g area imager from Honeywell combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the 4600g is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Honeywell backs this with a best-in-class 3 year warranty.

Honeywell 4600GSF031CE Barcode Scanner Overview

The 4600g Smart Focus area imager from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for retail and commercial applications. Powered by Adaptus Imaging Technology 5.0, the 4600g is full featured, fast, and cost effective.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

PDF 417
Micro PDF417
MaxiCode
DataMatrix
Aztec
Aztec Mesas
Code 49
EAN-UCC Composite
Codabar
Code 39
Interleaved 2 of 5
Code 93
Code 128
UPC
EAN
RSS
Coda Block
QR Code
Postnet
Planet Code
British Post
Canadian Post
Japanese Post
KIX(Netherlands) Post
OCR-A
OCR-B

Light Source:

LED

Image Sensor Type:

Imager

Maximum Scan Resolution:

6.60 mil

Depth of Field:

[email protected] - linear
0.033cm@13mil - UPC
[email protected] - PDF417
0.025cm@10mil - PDF417
0.038cm@15mil - Data Matrix
0.038cm@15mil - QR Code

Scan Pattern:

Omni-directional

Interfaces/Ports

Host Interface:

Serial

Physical Characteristics

Form Factor:

Handheld

Product Color:

Gray

Height:

6.2"

Width:

3.2"

Depth:

5.3"

Weight (Approximate):

6.50 oz

Miscellaneous

Package Contents:

4600g Bar Code Reader
Keyboard Wedge Cable

Additional Information:

Supported Interfaces:

Keyboard Wedge
RS-232

USB Cable separate

Certifications & Standards:

FCC Class B
CE EMC Class B
CE Low Voltage Directive
IEC60825-1 LED Safety:Class 1
UL
cUL listed
TÜV
2005 Sunrise Compliant

Warranty

Limited Warranty:

5 Year

Item Numbers

UNSPSC: 43211701
