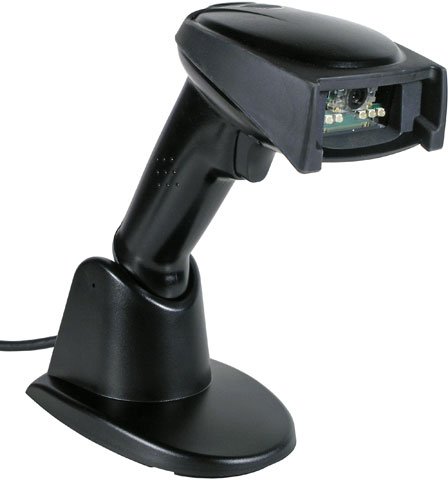

Honeywell 4600RPSR151C-0G00E Barcode Scanner

The Honeywell 4600RPSR151C-0G00E Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell 4600r - Retail 2D Image Scanner (Standard Range, Integrated Stand and Users Guide) - Color: Black. Cable not included, see accessories.
Scanner Capability
1D
Scanner Type
Imager
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Add to Quote
Honeywell 4600r Barcode Scanner Model Overview
The Honeywell 4600r provides high-performance presentation scanning of linear barcodes, making it ideal for fast-paced POS scanning applications. In addition, its ability to read all 2D barcodes, plus capture digital images, enables new applications that increase productivity - all with one device. The 4600r's unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner - simply swipe and go. In addition, the 4600r features an advanced illumination system optimized for high performance applications that require presentation or "fly-by" scanning and the reading of highly reflective items.
Honeywell 4600RPSR151C-0G00E Barcode Scanner Overview

The 4600r Retail 2D Image Bar Code Reader provides high-performance presentation scanning of linear bar codes, making it ideal for fast-paced POS scanning applications. In addition, its ability to read all 2D bar codes, plus capture digital images, enables new applications that increase productivity all with one device. The 4600r's unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner - simply swipe and go. In addition, the 4600r's advanced illumination system is optimized for high performance applications that require presentation or fly-by scanning and the reading of highly reflective items. With best-in-class linear and 2D bar code reading, the versatility of image capture, and an extensive set of software tools to extend its functionality, the 4600r protects your investment against changing requirements and enables you to capture and manage more data with one easy-to-use solution.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • GS1 Databar
  • Codablock F
  • BC 412
  • ISBT 128
  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 2" - 6"@7.5mil
  • 1.5" - 8.4"@13mil
  • 2.3" - 5.5"@6.6mil
  • 1.7" - 7.1"@10mil
  • 1.3" - 7"@15mil
  • 1.7" - 6.7"@15mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
8.2"
Width:
3.5"
Depth:
5.4"
Weight (Approximate):
14.89 oz
Miscellaneous
Package Contents:
  • 4600rSF Retail 2D Image Bar Code Reader
  • Integrated Stand
  • CD
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • USB
  • TTL level RS-232
  • TTL level Serial Wedge
  • IBM 46XX
  • Platform Supported:
    PC
    Certifications & Standards:
    • IP41 (Water and Dust Resistant)

    International:

    • CB scheme to IEC60950-1
    • IEC60825-1 Class 1 LED

    USA:

    • FCC Part 15 subpart B Class A
    • UL listed to 60950-1

    Canada:

    • ICES-003 Class A
    • cUL listed to CSA C22.2 No. 60950-1-03

    Europe:

    • CE 2004/108/EC EMC Directive to EN55022 Class A
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • 2006/95/EC

    Mexico:

    • NOM-NYCE

    Korea:

    • MIC Class A

    Australia/NZ:

    • C-Tick mark
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Honeywell 4600RPSR151C-0G00E Barcode Scanner is also known as HHP-4600RPSR151C0G00 or 4600RPSR151C0G00E.
