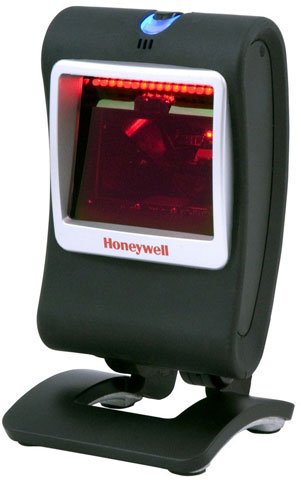

Honeywell 7580G-2 Barcode Scanner

The Honeywell 7580G-2 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell 7580g - Genesis 7580g Presentation Barcode SCANNER ONLY. 2D Scanner, PDF417, RS232-TTL/USB/KBW, IBM 46xx RS485 interfaces.

Connectivity

Corded

Form Factor

Handheld, Presentation

Scanner Capability

Scanner Type

CCD, Imager, LED Beam

Ruggedness

General Purpose

Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Honeywell 7580g Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Honeywell 7580g Barcode Scanner Model Overview

Honeywell's Genesis 7580g, the world's first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make Honeywell's Genesis 7580g suitable for environments ranging from manufacturing to healthcare to retail POS.

Honeywell 7580G-2 Barcode Scanner Overview

Honeywell's Genesis™ 7580g, the world's first presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Powered by Adaptus® Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to healthcare to retail POS.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Reads standard 1D
PD
2D
Postal and OCR symbologies

Image Sensor Type:

Imager

Maximum Scan Resolution:

7.50 mil

Depth of Field:

10mm - 80mm@5mil - 1D
5mm - [email protected] - 1D
0mm - 165mm@10mil - 1D
0mm - 180mm@13mil - 1D
0mm - 150mm@10mil - PDF
2mm - 190mm@20mil - Data Matrix

Power Description

Input Voltage:

5.5 V DC

Physical Characteristics

Form Factor:

Desktop

Height:

5.9"

Width:

3.3"

Length:

3.2"

Weight (Approximate):

12 oz

Miscellaneous

Additional Information:

USB Cable separate

Certifications & Standards:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0093465286133, 0641676205919, 0676302006189, 0783555022559

UPC: 093465286133, 641676205919, 676302006189, 783555022559

EAN: 0093465286133, 0641676205919, 0676302006189, 0783555022559

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Honeywell 7580G-2 Barcode Scanner is also known as HSM-7580G-2 or 7580G2.
