Honeywell FX1BD3A1AUS1AA Data Terminal

The Honeywell FX1BD3A1AUS1AA Data Terminal has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Marathon - Marathon Mobile Computer, Indoor Display, 802.11ABGN, BT, 2GB RAM X. Non-Cancelable/Non-Returnable.
  • 7" WVGA display screen allows you to execute two applications at the same time
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Windows 7 Professional has impressive features to offer along with a comfortable interface to work on
  • 2 GB RAM / 64 GB flash memory helps run applications rapidly and stores the mightiest databases
  • Wireless connectivity provides computing versatility throughout the workplace
  • Experience the versatility of Bluetooth connectivity with your Honeywell Handheld Terminal
Read More
Add to Quote
Honeywell Marathon Data Terminal Model Overview

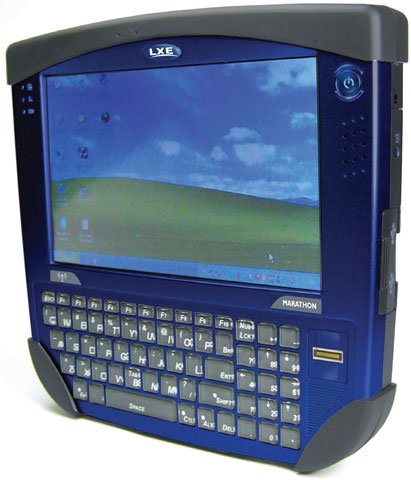

Marathon Field Computer

Today’s supply chain is a nonstop series of challenges, and a nonstop quest for efficiencies. The Marathon Field Computer aids supervisors and QC personnel in warehousing, distribution, and manufacturing, by giving them the computing power they need in a highly mobile package.

Take the case of the warehouse supervisor who needs to address an exception on the floor. He undocks his Marathon Field Computer from its Smart Desk Dock, where it is connected to an external monitor and mouse, just like his old laptop, and heads down to the floor. But unlike his large laptop, the Marathon’s ergonomics allows easy operation as he takes notes standing up using both the full QWERTY keyboard and touchscreen. When he sees damaged goods on a pallet, the integrated 2MP camera lets him pause to take a quick picture for later reference. As he arrives at the aisle where the associate has a question, the supervisor receives an instant message via software installed on the Marathon’s Windows XP or Windows 7 OS. He replies to the IM, answers the associate’s question, and returns to his office - never disconnected, never out of reach, and always in control.

Honeywell FX1BD3A1AUS1AA Data Terminal Overview

Honeywell's Marathon FX1 field computer packs all of the mission-critical features and connectivity mobile workers require to thrive into an IP65-rated fully-rugged data terminal. At just 2.2 pounds with a thin 1.3" profile, the Marathon mobile field computer is easy to maneuver. The computer's Summit 802.11 a/b/g/n and Bluetooth® wireless technology allows it to easily connect to your networks and peripheral devices. Combined with an Atom processor running a full Microsoft® Windows® XP or Windows® 7 operating system, the Marathon field computer presents an uncompromised technology experience.

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:
  • 1D
  • 2D
Drop Specification:
  • 1.2m
Air Electrostatic Discharge (+/-):
8kV DC
Contact Electrostatic Discharge (+/-):
4kV DC
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Speed:
1.60 GHz
Memory
Standard Memory:
2 GB
Flash Memory:
64 GB
Display & Graphics
Screen Size:
7"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Resistive
Keyboard/Keypad
Keyboard Layout:
QWERTY
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Wireless Security:
  • WPA
  • WPA2 (Personal and Enterprise)
  • 802.11x
  • EAP-TLS
  • EAP-TTLS/MSCHAPv2
  • PEAPv0/EAP-MSCHAPv2
  • PEAPv1 / EAP-GTC
  • WMM
  • CWG-RF Profile
  • WAPI
Interfaces/Ports
USB:
Yes
Software
Operating System:
Windows 7 Professional
Battery Information
Battery Capacity:
3060 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
8.1"
Width:
7.8"
Depth:
1.7"
Weight (Approximate):
2.20 lb
Miscellaneous
Package Contents:
  • Marathon Field Computer
  • Battery
Certifications & Standards:
  • IP65
  • CCX v.4
  • CE
  • IEC 60825-1
  • 21 CFR 1040.10
  • 21 CFR 1040.11
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211715
