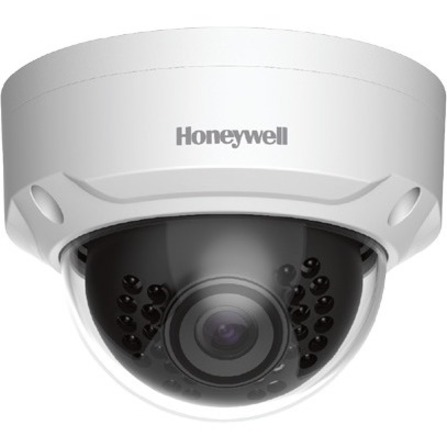

Honeywell H4D8PR1 Security Camera

The Honeywell H4D8PR1 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell - Ultra HD 8 MP (4K) 15 fps image with a 1/2.5 8 megapixel progressive scan CMOS, or full HD 3 MP 25/30 fps image Digital WDR (DWDR) ensures glare-free images True Day/Night provides vivid color images by day and clear black-andwhite images at night with ICR Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec
  • Network camera - Helps achieve high-quality video results
  • Up to 3840 x 2160 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 4 mm maximum focal length for dependable identification distances with better coverage
  • Up to 100 ft of night vision
  • HD recording format for exceptional video quality with maximum productivity
  • Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
  • Junction Box Mount mount type is reliable and allows trouble-free and easy usage
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
Add to Quote
Honeywell Parts Accessory Model Overview
Products and parts from Honeywell.
Honeywell H4D8PR1 Security Camera Overview

H4D8PR1

Honeywell is taking quality and reliability to the next level with the new Performance Series 4K Ultra HD rugged IP minidome cameras. The Honeywell TDN Ultra HD IR minidome cameras offer incomparable picture clarity, hassle-free flexible system integration, and secure data transmission-and they install easily too!

Ultra HD 4K Image Quality

  • Ultra HD 8 MP (4K) 15 fps image with a 1/2.5" 8 megapixel progressive scan CMOS, or full HD 3 MP 25/30 fps image
  • Digital WDR (DWDR) ensures glare-free images
  • True Day/Night provides vivid color images by day and clear black-and-white images at night with ICR
  • Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec

Flexible Surveillance Solution

  • 4.0 mm, F1.6, fixed lens
  • H.265, H.264 and MJPEG codec, triple stream support
  • IR LEDs provide up to 30 m (100 ft.) of illumination in dimly lit or night time scenes (depending on scene reflectance)
  • Smart IR technology provides even distribution of IR
  • Waterproof (IP66) and IK10 impact-resistant camera housing
  • -30°C to 60°C (-22°F to 140°F ) working temperature
  • Security features include individual signed certificates and data encryption
  • Cameras can be retrofitted on many existing DVR/NVR installations without requiring additional storage

Onboard Video Storage

  • Supports up to 128 GB microSDHC card for local video storage on events, continuous, or schedule, or with network interruption Easy to Install and Use
  • Built-in PoE (Power over Ethernet 802.3af) eliminates separate power supply and associated wiring; 12 VDC input where PoE power is unavailable
  • ONVIF Profile S and G compliant
  • Included accessories: security screw driver (allen key), mounting screws, wall anchors, and mounting template

Market Opportunities
These fully featured attractive cameras are perfect for outdoor installations that require excellent picture quality at minimal bandwidth while offering maximum protection against dust, dirt, and water. Boasting a sleek modern design and offering 4K high definition images, the cameras are suited for a wide range of applications

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
100 ft
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
8 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
3840 x 2160
Video Signal Format:
  • NTSC
  • PAL
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Wall Mount
  • Pole Mount
  • Corner Mount
Form Factor:
Dome
Height:
3.2"
Diameter:
4.3"
Weight (Approximate):
14.32 oz
Item Numbers
UNSPSC: 46171610
