Recording Formats:
Full HD
HD Recording:
Yes
Honeywell Parts Accessory Model Overview
Products and parts from Honeywell.

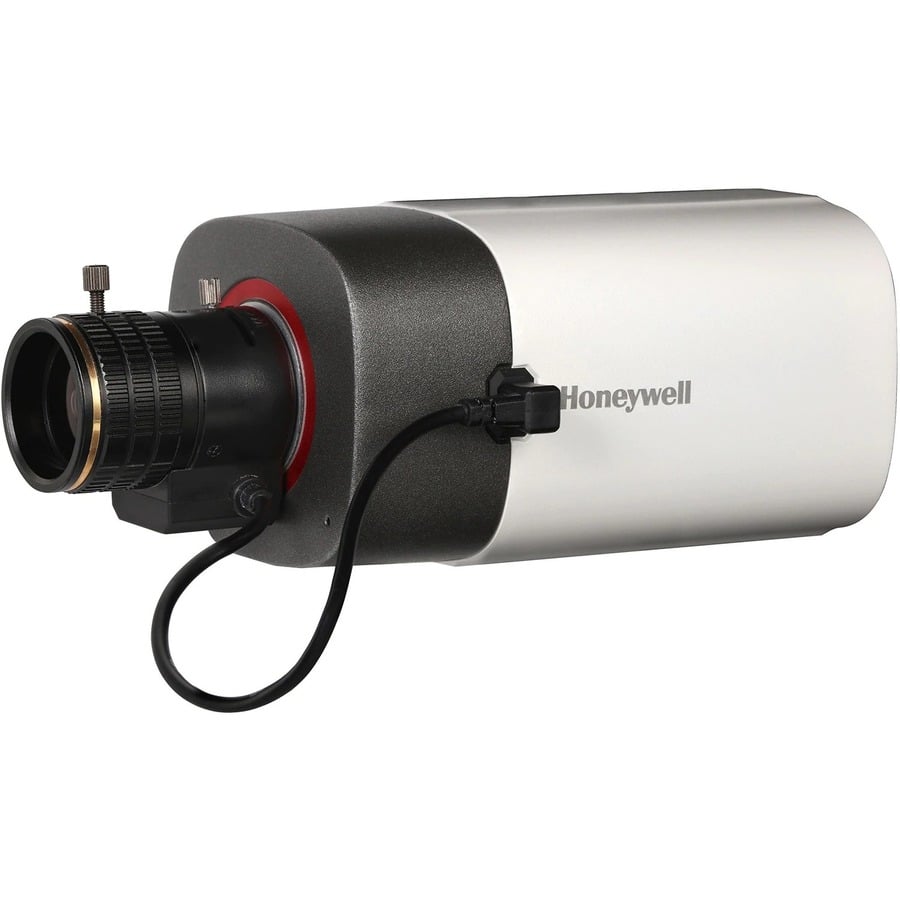

Honeywell HCW2GV Security Camera Overview
Honeywell is taking quality and reliability to the next level with the New equIP® range of ultra low-light box IP cameras. The 1080p 2 MP/4 MP box cameras offer high definition resolution at full frame rate, progressive scan technology, and edge enhancement for outstanding picture clarity. ONVIF (Profile S/G/Q) compliance ensures hassle-free, flexible system integration.
Superior Image Quality
- Full HD 1080p 25/30 fps image with a 1/2.8" 2 MP sensor
- True WDR, up to 140 dB, ensures glare-free images
- True Day/Night capability, vivid colour pictures by day and clear black-and-white pictures at night with ICR
- Ultra Low Light technology is able to capture high quality colour images in low light environments
- Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.264 High Profile codec
Flexible Surveillance Solution
- H.265+, H.265, H.264 and MJPEG codec, triple stream support
- Working temperature of -30°C to 60°C (-22°F to 140°F)
- ONVIF Profile S, G & Q compliant
- Cameras can be retrofitted on many existing DVR/NVR installations without requiring additional storage
- Security features include individual signed certificates and data encryption
Easy to Install and Use
- Professional design, easy to hold with one hand during installation
- Built-in PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 24 V AC/12 V DC inputs where PoE power is unavailable
- Remote configuration, Smart Auto Focus (ABF) adjustment through the web client
Privacy Masking
- Conceals up to 4 areas of a scene from viewing and recording
Onboard Video Storage
- Supports up to 128 GB microSDHC (Class 10) card for local video storage when network is interrupted. Card not included.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.265+
- H.265
- H.264
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Video Signal Format:
- NTSC
- PAL
Lens
Lens Included:
No
Lens Mount Type:
CS-Mount
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/3 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
- 12 V DC
- 24 V AC
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Box
Product Color:
- White
- Gray
Weight (Approximate):
1.18 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
- Wide Dynamic Range
- Day/Night
- Built-in Mechanical ICR
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Automatic White Balance
- Auto Gain Control
- 3D Digital Noise Reduction
- Privacy Masking
- Electronic Image Stabilization
Environmentally Friendly:
Yes
Item Numbers
UNSPSC:
46171610
