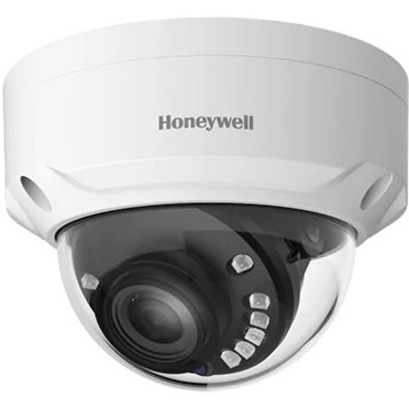

Honeywell HD30XD2 Security Camera

The Honeywell HD30XD2 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell - 1080p 3.6mm Indoor/Outdoor IR Rugged Dome, True Day/Night, HD-CVI, HD-TVI, AHD, Standard Definition, Smart IR

Low cost and affordable solution for surveillance applications
Up to 1920 x 1080 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
3.60 mm maximum focal length provides incredible detail and how effective is your surveillance camera
f/2.0 maximum aperture for productive capturing according to focal length and lighting conditions
Provides night vision of objects at a distance of up to 98 ft
Full HD recording format for exceptional video quality with maximum productivity
Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
DC power source type for your surveillance camera provides maximum energy feasibility and added surveillance productivity

Need a different version? See all Honeywell Parts Accessories

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Honeywell Parts Accessory Model Overview

Products and parts from Honeywell.

Honeywell HD30XD2 Security Camera Overview

Supercharge your analog security system with Honeywell's HQA technology for high definition 1080p images over your existing coax infrastructure. The Performance Series 1080p HQA cameras includes a wide range of high performing IR cameras that are easy to install and even easier to use.

Superior Image Quality

Full HD fixed cameras with up to 1080p 25/30 fps images with either a 1/2.8" 2.1 MP sensor or 1/2.9" 2.0 MP sensor
Superior HD PTZ camera (HDZP30XD4) with up to 4 MP 25/30 fps images with a 1/3" 4.0 MP sensor
Long distance transmission over coaxial cable with low attenuation and latency
Either True WDR (120 dB) or Digital WDR (DWDR) ensures glare-free images
True Day/Night provides vivid color images by day and clear blackand-white images at night using a removable IR cut filter
Excellent low-light performance with 2D/3D noise reduction

Flexible Surveillance Solution

A wide range of lenses and zoom options for all types of installations
IR LEDs provide illumination in dimly lit or nighttime scenes, depending on scene reflectance and camera model
Smart IR technology provides even distribution of IR (excluding HDZP30XD4)
Weatherproof (IP66) and IK10 impact-resistant camera housing (rugged outdoor housings, depending on model)
Wide range of working temperatures for outdoor environments (depending on model)
Plug-and-play compatible with Honeywell HRHQ 4/8/16-Channel Hybrid 1080p HQA DVRs

4-In-1 Transmission

Four signals simultaneously transmitted over one coaxial cable gives installers complete flexibility
Four signals in one cable allow a mix of video, audio, data, power, alarm triggers and control signals to transmit on a single coaxial cable

Easy to Install and Use

Fixed cameras support 12 VDC power input; HDZP30XD4 PTZ supports 24 VAC input
Uses existing BNC cabling - no rewiring required
Supports both HD and SD output which can be easily switched by the users
Remote configuration through a web client or from the DVR
Wide range of mounting options for the different camera housings include wall mounts, pendant mounts, pole and corner adapters and junction boxes support many types of security situations

Detailed Specs

Technical Information

Recording Formats:

Full HD

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

98 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Monochrome
Color

Field of View:

82.8°

Effective Camera Resolution:

2 Megapixel

Video

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

60 fps

Video Signal Format:

PAL
NTSC

Analog Video Signal Format:

CVI
AHD
TVI
CVBS

Lens

Lens Type:

Fixed

Maximum Focal Length:

3.60 mm

Lens Included:

Yes

Maximum Aperture:

f/2.0

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/25 Second

Network & Communication

Connectivity Technology:

Wired

Interfaces/Ports

Network (RJ-45):

Power Description

Input Voltage:

12 V DC

Power Source Type:

Physical Characteristics

Mount Type:

Wall Mount
Pole Mount

Form Factor:

Dome

Durability:

Weather Proof
Impact Resistant

Product Color:

Signal White

Height:

3.2"

Diameter:

4.3"

Weight (Approximate):

10.93 oz

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

90%

Miscellaneous

Features:

Back Light Compensation (BLC)
Highlight Compensation (HLC)
Digital Wide Dynamic Range (D-WDR)
Auto Gain Control
Rugged Design
Wide Dynamic Range
2D Noise Reduction
3D Noise Reduction

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 46171610
