Honeywell HD72HD4 Security Camera

The Honeywell HD72HD4 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

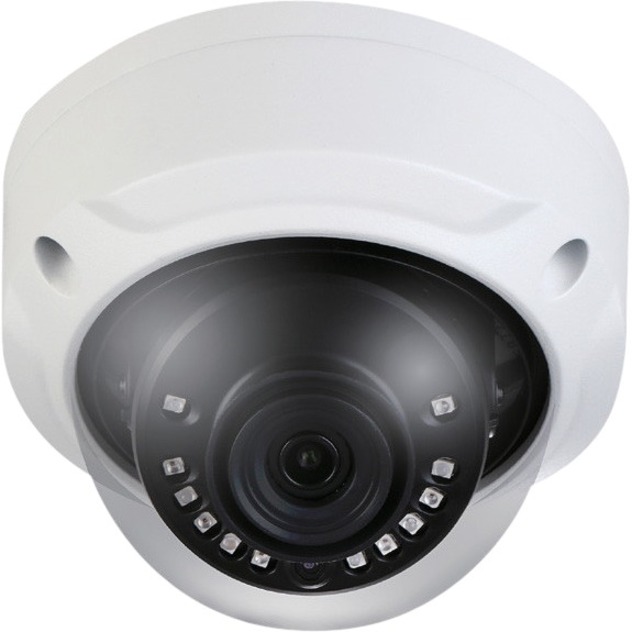

Honeywell - TDN Indoor / Outdoor IR Dome Camera, 4MP, HQA, 1/3X CMOS, 15fps @ 4 MP / 30 fps @ 1080p, 1ch HQA output / 1ch SD output, 2.8 Fixed Lens, 120db WD, 12 IR LEDs, 12DC

Is a smart solution for using at homes and SMB security surveillance installations
Up to 2560 x 1440 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
2.80 mm maximum focal length for dependable identification distances with better coverage
Up to 100 ft of night vision
HD recording format for a lively video quality experience with maximum dependability
Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
Wall mount is Ideal for permanent use with added space efficiency
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all Honeywell Parts Accessories

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Honeywell Parts Accessory Model Overview

Products and parts from Honeywell.

Honeywell HD72HD4 Security Camera Overview

Supercharge your analog security system with Honeywell's HQA technology for high definition 4 MP images over your existing coax infrastructure. The Performance Series 4 MP HQA line includes a wide range of high performing IR cameras that are easy to install and even easier to use.

Superior Image Quality

Full HD 4 MP 15 fps image (25/30 fps @ 1080p) with a 1/3" 4.1 MP sensor
Long distance transmission over coaxial cable with low attenuation and latency-up to 1,640 ft (500 m) using RG-59
True Day/Night provides vivid color images by day and clear black-and-white images at night with ICR
Excellent low-light performance with 2D/3D noise reduction

Flexible Surveillance Solution

2.8 mm fixed lens (HD72HD4) or 2.7-12 mm VF lens (HD274HD4)
IR LEDs provide up to 100 ft (30 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
Smart IR technology provides even distribution of IR
Weatherproof (IP66) and impact-resistant (IK10) camera housing
-22°F to 140°F (-30°C to 60°C) working temperature
Plug-and-play compatible with Honeywell HRHT 4/8/16-channel Performance Series HQA DVRs

Easy to Install and Use

HD72HD4: 12 VDC power input; HD274HD4: 12 VDC/24 VAC power input
Uses existing BNC cabling-no rewiring required
Compatible with Honeywell's HQA-WK wall mount
Remote configuration through web client or from the DVR

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

100 ft

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color
Monochrome

Effective Camera Resolution:

4 Megapixel

Video

Maximum Video Resolution:

2560 x 1440

Lens

Lens Type:

Fixed

Maximum Focal Length:

2.80 mm

Network & Communication

Connectivity Technology:

Wired

Physical Characteristics

Mount Type:

Wall Mount
Pole Mount
Corner Mount

Form Factor:

Dome

Height:

3.2"

Diameter:

4.3"

Weight (Approximate):

11.68 oz

Item Numbers

UNSPSC: 46171610
