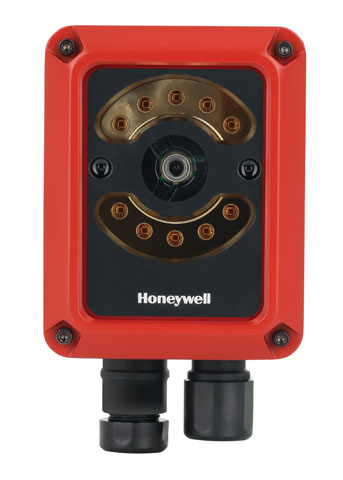

Honeywell HF810-01BT00004K-R Barcode Scanner

Honeywell HF810 - Barcode Scanners, Honeywell HF810, 0.5 megapixel, Narrow FOV, Blue LED illumination

Form Factor

Fixed Mount

Scanner Capability

Scanner Type

DPM (Direct Part Marking), Imager

Enhanced performance:Dedicated DPM algorithm for rapid scanning in manufacturing workflows
Flexible configuration:Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting
Plug and Play:DataMax Plus configuration tool enables rapid setup.Autotune function optimizes scanning parameters with the press of a button

Need a different version? See all Honeywell HF81X Barcode Scanners

Chat Now for Qty Discount

3-year Premium Plus ($49.50)

No, stay at premium support package

Add to Quote

$1,369.72

Honeywell HF810-01BT00004K-R Barcode Scanner

Overview

Full specifications (PDF)

Honeywell HF81X Barcode Scanner Model Overview

Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.About the HF810 & HF811With Honeywell’s enhanced technology in encoding and decoding, HF810 and HF811 Fixed-mount 2D Industrial Scanners offer powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.

Features and Benefits

Enhanced performance – Dedicated DPM algorithm for rapid scanning in manufacturing workflows
Flexible configuration – Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting
Plug and Play – DataMax Plus configuration tool enables rapid setup.
Autotune function optimizes scanning parameters with the press of a button

Honeywell HF810-01BT00004K-R Barcode Scanner Overview

Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.

About the HF810 & HF811

With Honeywell's enhanced technology in encoding and decoding, HF810 and HF811 Fixed-mount 2D Industrial Scanners offer powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Reads standard 1D
PDF
2D (QR, Datamatrix, Maxicode, Aztec)
DPM

Image Sensor Type:

Imager

Field of View (Horizontal):

20°

Field of View (Vertical):

11°

Maximum Ambient Light:

100000 lux

Direct Part Marking (DPM) Decoding:

Yes

Interfaces/Ports

Host Interface:

Serial
Ethernet

Power Description

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Fixed Mount

Product Color:

Black

Height:

2.8"

Width:

2.2"

Depth:

1.8"

Weight (Approximate):

6.35 oz

Miscellaneous

Ingress Protection (IP) Rating:

IP65

Application/Usage:

Industrial
Warehouse
Manufacturing

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Honeywell HF810-01BT00004K-R Barcode Scanner is also known as HSM-HF81001BT00004KR or HF81001BT00004KR.
