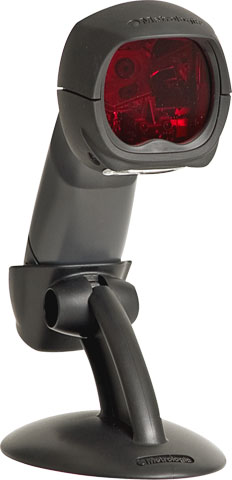

Honeywell MS3780 Fusion Barcode Scanner Model Overview
Honeywell’s FusionTM 3780 is an affordable hand-held omnidirectional laser scanner with single-line capability that increases retail checkout system efficiency with its automatic in-stand operation, optionally integrated EAS, and industry-leading scan performance.Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing single-line hand-held scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores.An adjustable stand with 50° of tilt and three locking positions provides flexibility for the user to position the scanner for individual comfort and optimal performance. Stabilized with a weighted metal base, the stand may also be hard-mounted to counters or walls.Fusion also includes CodeGate®, a Honeywell patented feature used in the highly successful Voyager® series. An integrated infra-red (IR) sensor automatically activates the laser when a bar code is present. The user then properly aligns the bar code before pressing the button, transmitting the data to the host. This feature provides the ability to pass over other bar codes, selecting only the required code. No other scanner offers this much control.Standard features such as Flash ROM, MetroSelect® and MetroSet®2 programming, and user replaceable cables protect your investment by enabling Fusion to grow with you and your application requirements.
Features and Benefits
- Primary Omnidirectional Scan Pattern: Aggressive scanning in any orientation, increasing throughput
- Secondary Single-Line Scan Pattern: With a push of a button, switch to a targeted single-line for menu scanning applications
- Automatic In-Stand Detection: Hands-free operation for presentation scanning reduces operator fatigue
- Sleep Mode With IR Wake Up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
- Optional Integration of RF EAS Antenna: Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes

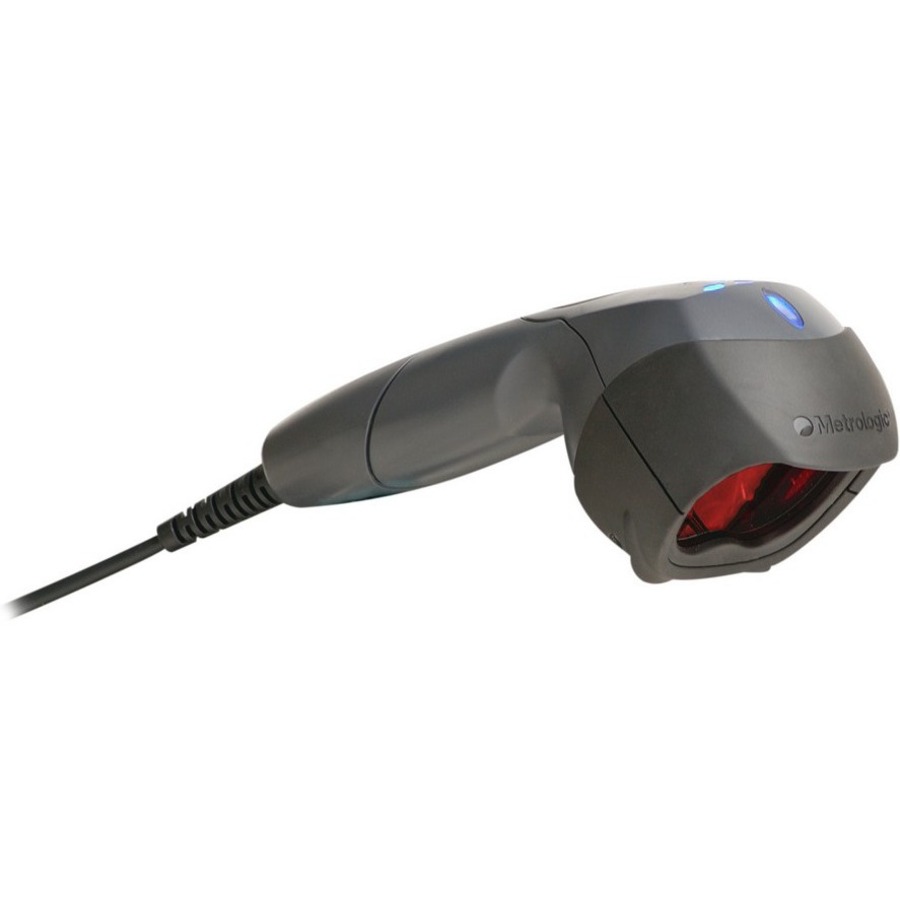

Honeywell MK3780-71B41-6 Barcode Scanner Overview
The Fusion™ 3780 laser barcode scanner is ideal for medium-volume retailers. It combines omnidirectional and single-line laser scanning into a lightweight, ergonomic handheld device that's also affordable. And the scanner's automatic stand detection lets you seamlessly switch from handheld to hands-free presentation scanning on the fly.
Primary Omnidirectional Scan Pattern
Aggressive scanning of barcodes in any orientation, increasing throughput.
Secondary Single-Line Scan Pattern
With the push of a button, switch to a targeted single-line for menu scanning.
Automatic Stand Detection
Hands-free operation for presentation scanning, reducing operator fatigue.
Sleep Mode With IR Wake-Up
Multiple sleep modes reduce power consumption, extending life and lowering your total cost of ownership.
Optional Integration of RF EAS Antenna
Increases efficiency by simulteneously deactivating RF EAS tags and decoding barcodes.
Product Details
The Fusion 3780 is an affordable handheld devices that provides omnidirectional laser scanning plus single-line scanning capability for standard 1D and GS1 DataBar symbologies. The device's 20-line scan pattern provides superior scanning over existing single line handheld scanners making it ideal for medium-volume retailers, including specialty stores, pharmacies, liquor stores, and convenience stores.
The Fusion 3780 scanner also offers attractive features and options that increase operator control, productivity and ease of use even further.
- Patented CodeGate™ technology lets you easily target the desired barcode and complete data transmission with the press of a single button.
- Automatic in-stand operation lets you scan barcodes hands free.

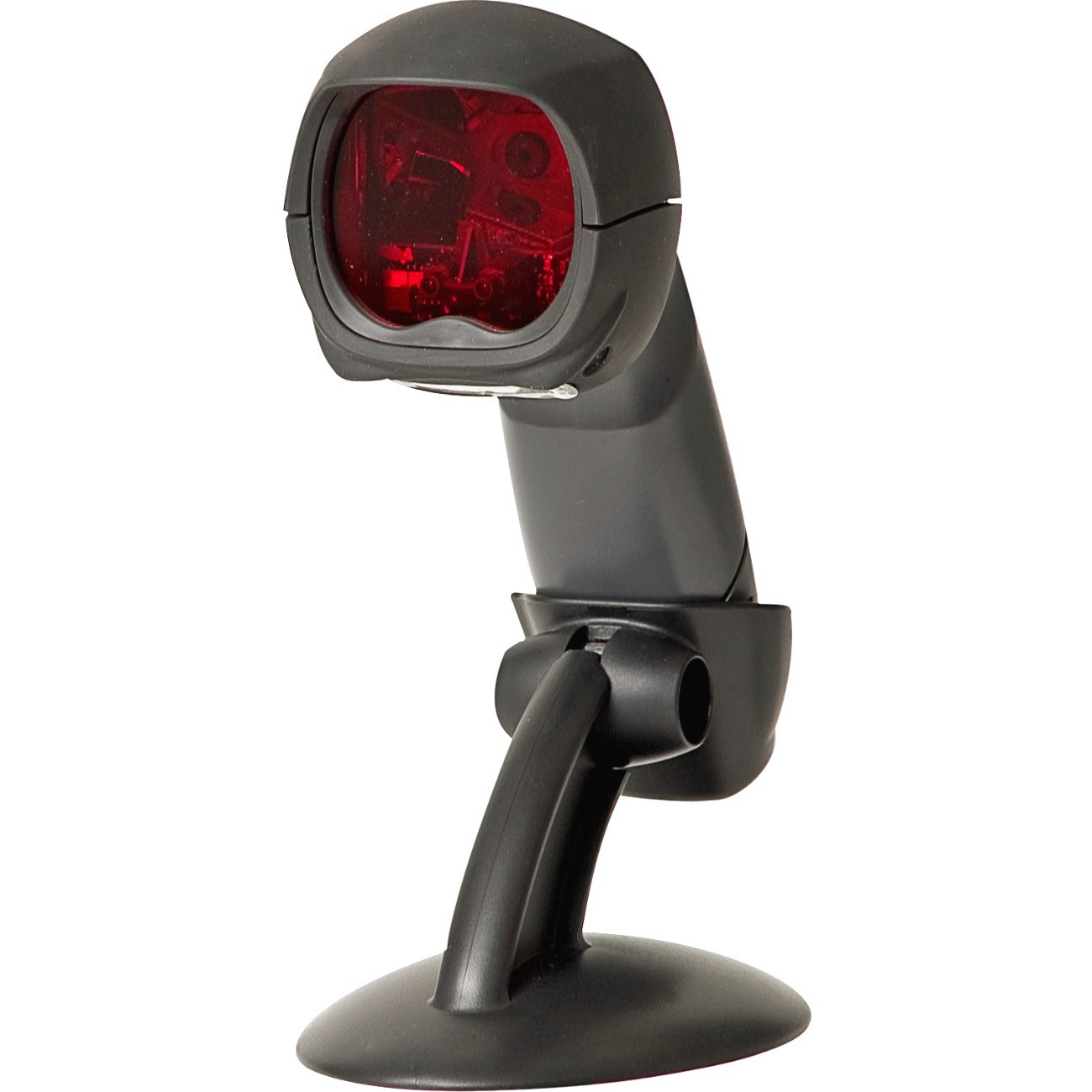

- The adjustable stand features 50 degrees of tilt and three locking positions so your cashiers can position the scanner for their individual comfort and optimal performance. Stabilized with a weighted metal base; hard-mount the stand to a checkout counter or wall.
- Optional integration of RF EAS Antenna increases efficiency by letting you simultaneously deactivate RF EAS tags and decode barcodes.
- Standard features such as Flash ROM, MetroSelect™ and MetroSet™2 programming, and user replaceable cables protect your investment by enabling the Fusion 3780 scanner to grow with you and your application needs.
Full specifications (PDF)
