IDEA-333133 Credit Card Reader

ID Tech EasyMag - ID TECH EasyMag IDEA Magnetic Stripe Reader - Triple Track - 65 in/s - Keyboard Wedge - Beige

Features interfaces including RS232, Keyboard wedge, USB-CDC, USB-KB, USB-HID
User Friendly Configuration Software which is capable of editing and formatting data such as dividing, rearranging, and editing fields of magnetic card data with just a click of a button
Reliable for a minimum of 1,000,000 passes
Can be used free standing or mounted through threaded inserts
More than a 5 inch reading slot makes it easy to swipe a card for an accurate read
Support USB 2.0 full speed

Need a different version? See all EasyMag Credit Card Readers

Chat Now for Qty Discount

Add to Quote

$149.00

Overview

Full specifications (PDF)

EasyMag Credit Card Reader Model Overview

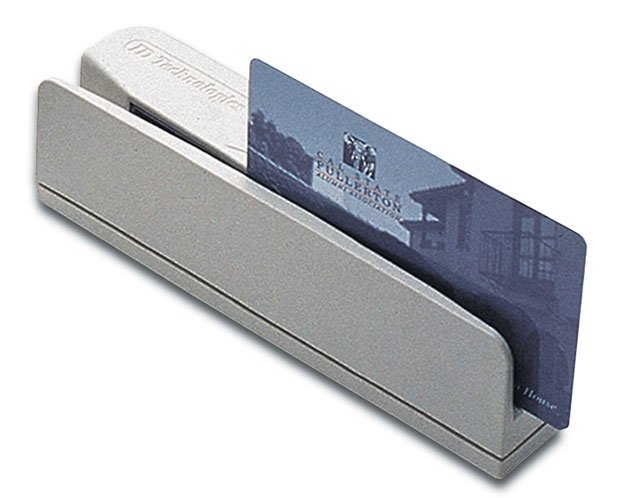

The ID Tech EasyMag is an intelligent magnetic stripe reader with a fully integrated USB interface (No adapter!). Designed for busy retail environments where speed and dependability are equally important, its standard length slot (more than 5 inches) makes it easy for anyone to swipe a card and get a good read on the very first try. It can also be programmed to rearrange, edit, and validate fields of entered data just like any other ID Tech reader.

IDEA-333133 Credit Card Reader Overview

The EasyMag IDEA Magnetic Stripe Reader is an intelligent, programmable magnetic stripe reader. It provides a wide range of functionality and value in a convenient package size. The entire unit is just 90mm long, about the length of a credit card. It reads up to three track of information with a single swipe in either direction. It has a beeper and three color LED indicator to signal a successful read.

Detailed Specs

Full specifications (PDF)

Technical Information

Magnetic Stripe Track Configuration:

Triple Track

Magnetic Stripe Track Number:

Track 1
Track 2
Track 3

Minimum Swipe Speed:

3 in/s

Maximum Swipe Speed:

65 in/s

Number of Swipes (Head Life):

1000000

Magnetic Stripe Format:

AAMVA
ISO 7811

Interfaces/Ports

Keyboard Wedge:

Yes

Reliability

MTBF:

300000 Hour

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Product Color:

Beige

Height:

1.1"

Width:

1.3"

Length:

3.5"

Weight (Approximate):

8 oz

Miscellaneous

Additional Information:

Longer footprint and offset slot
Superior reading of high jitter, scratched, and worn mag stripe cards
Threaded inserts for mounting
Reads ISO7811, AAMVA, and most other card data formats
Mag swipe PC software makes configuration changes easy
JPOS and OPOS support for all interfaces is provided

Item Numbers

UNSPSC: 43211702
