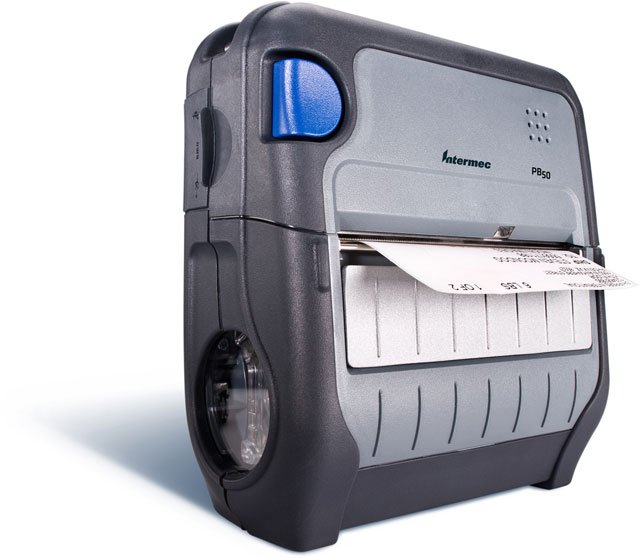

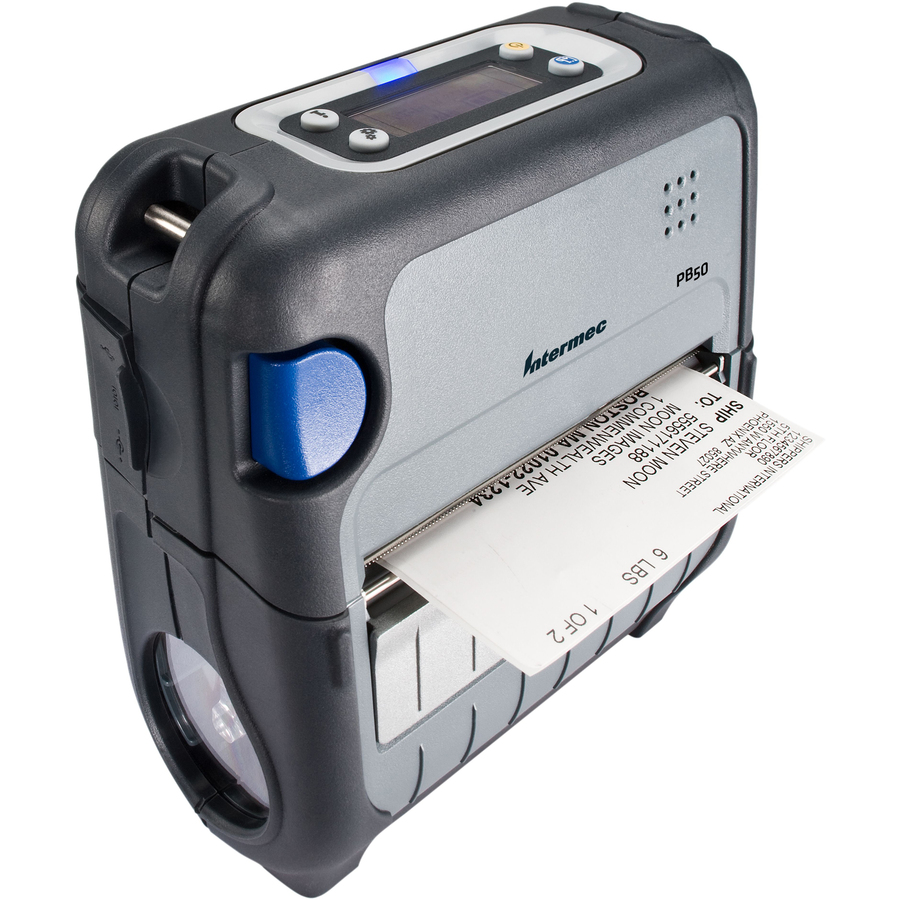

Intermec PB50A12004100 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Intermec PB50B12004100 Portable Barcode Printer.

Intermec PB50 - Intermec PB50 Network Thermal Label Printer - Monochrome - 4 in/s Mono - 203 dpi - Bluetooth

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Bluetooth, Serial (RS-232)

Print Resolution

203 dpi

Max Print Width

4.5 inch

Direct Thermal Printer provides you with all the features that you need to print quickly and easily
Produce high-quality documents with this monochrome printer to increase your productivity
Bring convenience, value, and feature to any mobile environment

Need a different version? See all Intermec PB50 Portable Barcode Printers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Intermec PB50A12004100 Portable Barcode Printer

Overview

Full specifications (PDF)

Intermec PB50 Portable Barcode Printer Model Overview

Intermec has introduced its first wireless mobile label printer, PB50 that allows users to print labels, tags or receipts wherever and whenever they require via Bluetooth and the wireless local area network (WLAN) connectivity. This new product works perfectly with Bluetooth-enabled Intermec wireless mobile computers such as CK31, CK61 and CV30 vehicle mount computer, along with the CN3 and 700 series.

Intermec PB50A12004100 Portable Barcode Printer Overview

The PB50 four inch mobile label printer is the perfect complement to Intermec's mobile computers, scanners and media to put your mobile workers in the warehouse fast lane. A unique design that combines a high voltage battery, patented techniques for power management of the print head, and high speed electronics normally only used in desktop printers enable the PB50 to print the full width of all pixels simultaneously and achieve time to first label in less than half the time of other label printers. The PB50 is also designed for ease of use making loading, charging, printing and diagnostics fast and simple.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

4.25"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
Code 128
Code 128-A
Code 128-C
DUN-14/16
EAN-8
EAN-13
EAN 128
EAN-128 Subset A
EAN-128 Subset C
Industrial 2 of 5
Interleaved 2 of 5
Interleaved 2 of 5 A
Matrix 25
POSTNET
Straight 2 of 5
UCC 128
UPC -2 Digits Add-on
UPC-A
UPC-D1
UPC-D2
UPC-D3
UPC-D4
UPC-D5
UPC-E
UPC Shipping Container code
RSS
Planet Code
Plessey
Code 16K
Code 49
Data Matrix
Maxi Code
MSI
PDF-417
QR Code
Micro PDF-417
EAN.UCC Composite

Memory

Standard Memory:

16 MB

Flash Memory:

64 MB

Network & Communication

Bluetooth:

Yes

Media Types & Handling

Media Type:

Label
Tag
Ticket
Fanfold
Receipt

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.65"

Maximum Label Width:

4.39"

Maximum Label Length:

24"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

IPL
ESC/P
ZPL II
Fingerprint

Battery Information

Number of Batteries Supported:

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

2200 mAh

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

3.1"

Miscellaneous

Additional Information:

Graphics User defined fonts, graphics, formats and layouts, including custom logos

Platform Supported:

Item Numbers

UNSPSC: 45101512
