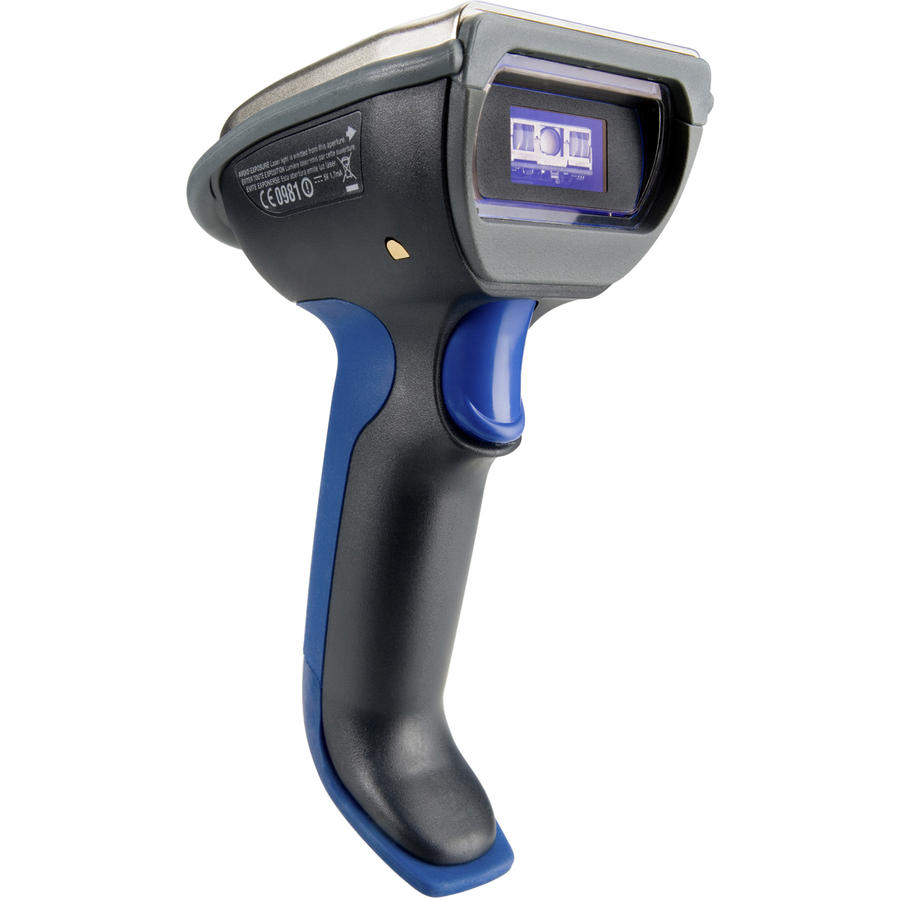

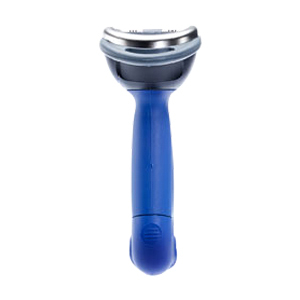

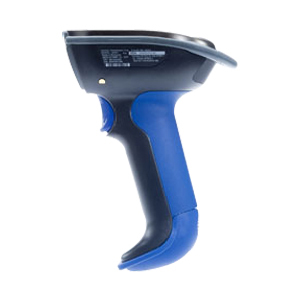

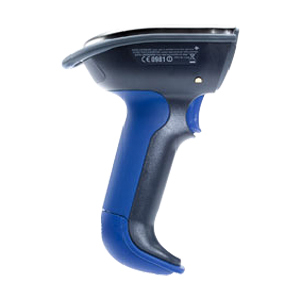

Intermec SR61BV0400 Barcode Scanner

The Intermec SR61BV0400 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Intermec SR61 - Scanner only, Cordless Vista Linear Imager. Scanner Only - Cables and accessories must be purchased separately. These include USB (P/N 236-164-002), PS/2 (P/N 236-204-002), or RS-232 Serial cables (P/N 236-161-002), Power supply (P/N 851-089-205), Communications Base(P/N 3-231019-05) and Charging-only cradle (P/N 852-901-001).

Connectivity

Cordless

Form Factor

Handheld

Scanner Capability

Scanner Type

Imager

Need a different version? See all Intermec SR61 Barcode Scanners

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

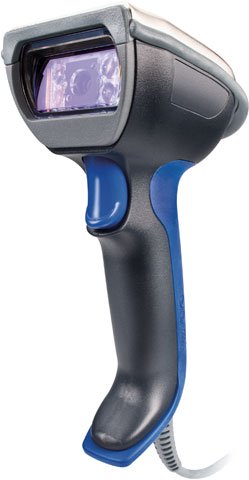

Intermec SR61 Barcode Scanner Model Overview

The Intermec SR61 handheld scanner family is built for rugged applications in warehouse, distribution and industrial manufacturing, and also supports proof of delivery and point of service applications. With a high impact housing that is virtually impenetrable and a solid state design, the SR61 exceeds industrial and military standards and can be counted on to perform well in harsh environments where dust, moisture or extreme temperatures are constants and operational uptime is critical.

Intermec SR61BV0400 Barcode Scanner Overview

Intermec's SR61 handheld cordless scanner incorporates the flexibility and rugged design of a handheld scanner with the seamless functionality of wireless communication. The SR61 features a personal area network (PAN) radio based on Bluetooth communication protocol, making scanning easier and safer with no costly cables to damage or become entangled. Users gain hassle-free mobility up to 30 meters (100 feet) from the host.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

Code 128
EAN-128
Code 39
Interleaved 2 of 5
UPC Add-ons
EAN Add-ons
ISBN Add-ons
Matrix 2 of 5
Codabar
Code 39
MSI
Plessey
Code 93i
Code 11
Telepen
ISBT 128
RSS
Micro PDF
PDF 417
MacroPDF
Coda Block
TLC39
Composite Codes

Image Sensor Type:

Linear

Scanning Distance:

100 ft

Network & Communication

Bluetooth:

Yes

Physical Characteristics

Form Factor:

Handheld

Height:

4.5"

Width:

2.8"

Depth:

Weight (Approximate):

15 oz

Miscellaneous

Package Contents:

SR61VT Handheld Bar Code Reader
Quick Reference Guide

Additional Information:

USB Cable separate

Certifications & Standards:

CISPR 22 Class B
Part 15 of FCC rules Class B
CE Mark (EU) (EN 55024, EN 55022 Class B, IEC60950-1, IEC 60825-1)
cULus (Canada and the USA) (UL 60950-1)
GS Mark (Germany) (EN60950-1, EN 60825-1)
NOM (Mexico)
C-TICK
(Australia and New Zealand) (AS/NZS 3548 based on CISPR22);
CQC and SRRS (China)
Spring Mark (Singapore)
MIC (South Korea)
ANATEL (Brazil)

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0778890008634

UPC: 778890008634

EAN: 0778890008634

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Intermec SR61BV0400 Barcode Scanner is also known as INT-SR61BX10 or SR61BV0400.
