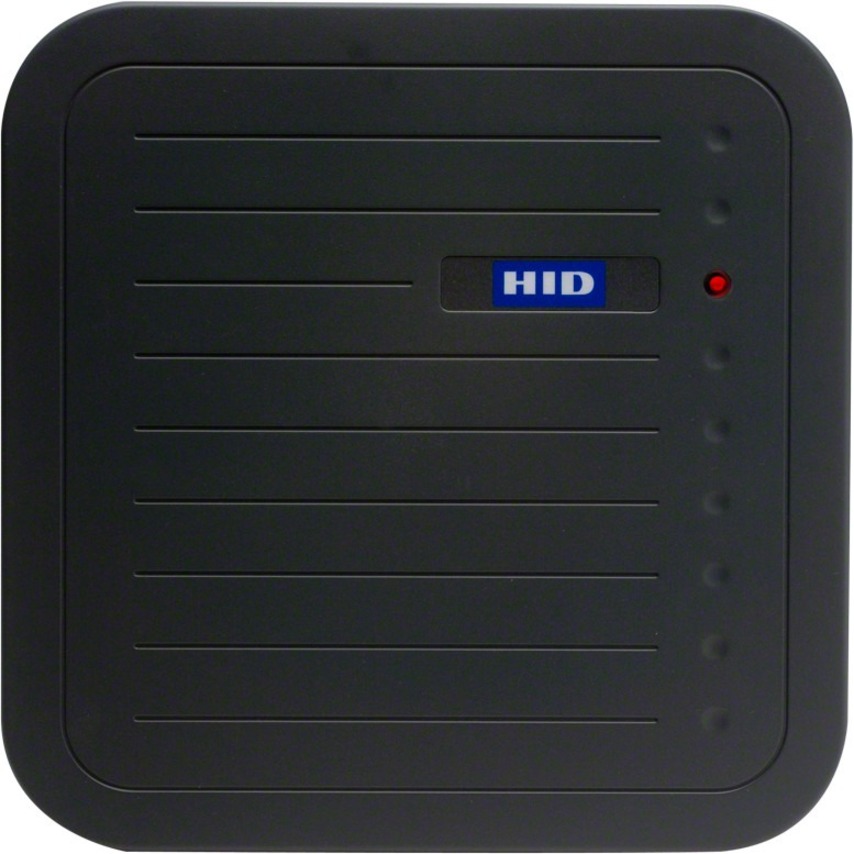

Keyscan HID-5375 Access Control Reader

The Keyscan HID-5375 Access Control Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Keyscan HID5375 - Keyscan Hid MaxiProx 5375 - Proximity - 24" Operating Range - 24 V DC

Get full control over access protection and ensure employees gain fast access with this card reader access device
By using proximity technology this card reader access device provides robust and affordable security
Widely used for door access control

Need a different version? See all Keyscan HID5375 Security System Products

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

Keyscan HID5375 Security System Products Model Overview

The Keyscan HID5375 Long Range Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-toinstall housing.

Keyscan HID-5375 Access Control Reader Overview

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

Long read range distance (up to 6' with ProxPass).
Autotune allows read range to be maintained within four inches of metal.
Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable.
"Parking hold" feature ensures accurate detection of vehicles in parking lanes.
Power requirements: 12 or 24 VDC (configurable) .
Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
Dimensions: 12.0" x 12.0" x 1.0" (30.5 x 30.5 x 2.54 cm).

Long read range distance (up to 6' with ProxPass).
Autotune allows read range to be maintained within four inches of metal.
Wiegand, Clock-and-Data and selectable serial outputs available.
"Parking hold" feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
Compatible with all HID cards and tags with formats up to 85 bits.
Multicolor LED with internal or host control of the LED and beeper.
Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations.
Reader supervision signal for CASI-RUSCO panels.

Detailed Specs

Full specifications (PDF)

Technical Information

Identification Method:

Proximity

Operating Range:

24"

Application/Usage:

Door

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Height:

11.8"

Width:

11.8"

Depth:

Weight (Approximate):

3.19 lb

Miscellaneous

Additional Information:

125 kHz Proximity
ReaderProxCard II Card - up to 24" (60.9 cm)
ISOProx II Card - up to 20" (50.8 cm)
DuoProx II Card - up to 20" (50.8 cm)
Smart ISOProx II - up to 20" (50.8 cm)
Smart DuoProx II Card - up to 20" (50.8 cm)
HID Proximity MIFARE Card - up to 20" (50.8 cm)
ProxCard®Plus Card - up to 13" (33 cm)
ProxKey II Keyfob - up to 17" (43.2 cm)
Microprox Tag - up to 15" (38 cm)
ProxPass Active Vehicle Tag - up to 6' (1.8 m)
Wiegand interface: 500 feet (152 m)
Clock-and-data interface: 50 feet (15 m)
RS-232: 50-200 feet (15-61 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
RS-422 and RS-485: 4000 feet (1219 m)
Recommended cable is ALPHA 1297.

Compatibility:

Keyscan 125 kHz Proximity Cards and Tags:

HID-C1325
HID-C1386
HID-C1386-26
HID-C1386MG
HID-1391
HID-1351
PROXKEYIII
PROXKEYIII-26

Certifications & Standards:

UL 294 Listed
FCC
CE
EN60950
C-Tick Mark
EMC

Item Numbers

UNSPSC: 46171600, 46171619
