Keyscan HID-5455 Products

The Keyscan HID-5455 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

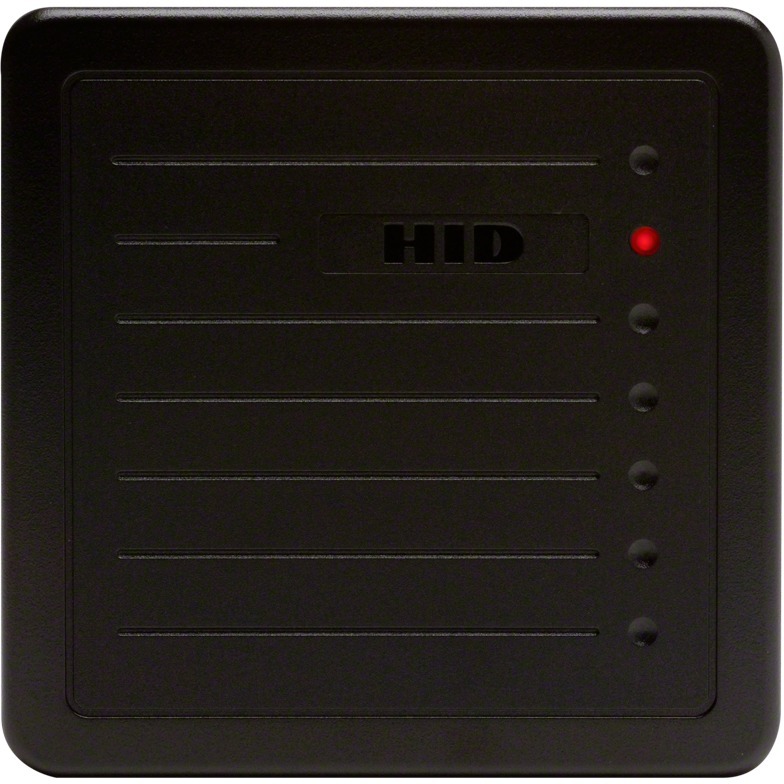

Keyscan Accessories  -  PROX PRO READER
  • With its convenient to use technology as well as the user-friendly operational capability, this Card Reader Access Device provides optimal card reading functionality productivity
  • By using proximity technology this card reader access device provides robust and affordable security
  • Widely used for door access control
Read More

Need a different version? See all Keyscan Accessories Accessories

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Keyscan HID-5455 Products
Keyscan HID-5455 Products
Technical Information
Identification Method:
Proximity
Operating Range:
9"
Application/Usage:
Door
Interfaces/Ports
Wiegand:
Yes
Power Description
Input Voltage:
16 V DC
Physical Characteristics
Height:
5"
Width:
5"
Depth:
1"
Weight (Approximate):
13.60 oz
Miscellaneous
Additional Information:
125 kHz Proximity Reader

Typical Maximum Read Range
  • ProxCard® II Card - up to 9" (22 cm)
  • ISOProx® II Card - up to 8" (20 cm)
  • DuoProx® II Card - up to 8" (20 cm)
  • Smart ISOProx® Card - up to 8" (20 cm)
  • Smart DuoProx® Card - up to 8" (20 cm)
  • HID Proximity and MIFARE® card - up to 8" (20 cm)
  • ProxCard® Plus Card - up to 4" (10 cm)
  • ProxKey® II Keyfob - up to 4" (10 cm)
  • MicroProx® Tag - up to 4" (11 cm)
Cable Distance:
  • Wiegand interface: 500 feet (150 m)
  • Clock-and-Data interface: 50 feet (15 m)
  • Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control.
Certifications & Standards:
  • UL 294 Listed
  • FCC
  • CE
  • EN60950
  • C-Tick Mark
  • EMC
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171600, 46171619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Keyscan HID-5455 Products is also known as KEY-HID5455
