Efficiency:
83%
Modular:
Yes
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.
LifeSafety Power FPO75-B100C4D8PE2M Accessory Overview
MCLASS™ Unified Power Systems combine FlexPower® power modules alongside Mercury Security™ access hardware in one compact and secure UL Listed solution.
This unit is a 12V and 24V DC dual voltage access power system.
The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.

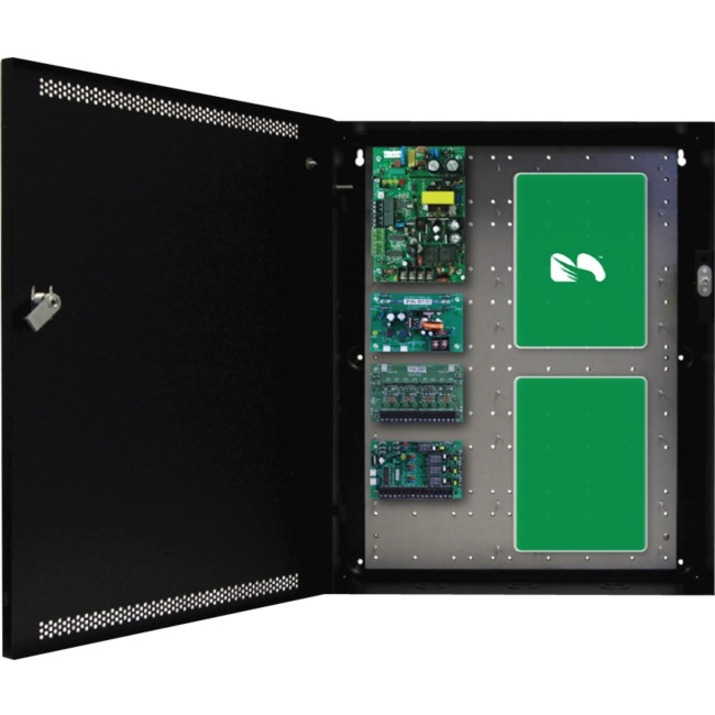

MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
This unit is a 12V and 24V DC dual voltage access power system.
The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation.
MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 2 A
- 24 V DC @ 2 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
20"
Width:
16"
Depth:
4.5"
Weight (Approximate):
18 lb
Miscellaneous
Package Contents:
- FlexPower FPO75-B100C4D8PE2M 75W Power Supply
- Lock
- 2 x Keys
- Tamper Switch
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-B100C4D8PE2M Accessory is also known as
LSP-FPO75B100C4D8P01
