Efficiency:
83%
Modular:
Yes
LifeSafety Power Parts Accessory Model Overview
Products and parts from LifeSafety-Power.

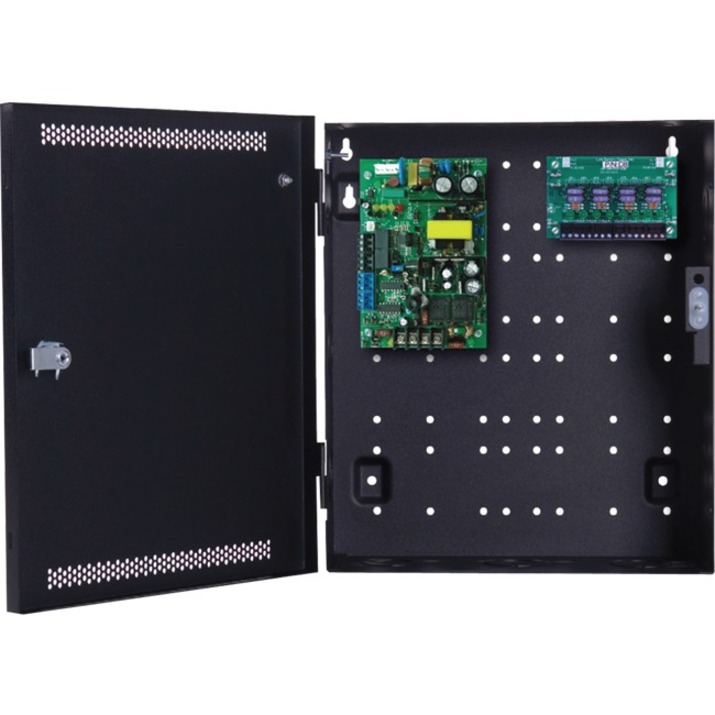

LifeSafety Power FPO75-D8E1 Power Device Overview
The FLEXPOWER FPO75-D8E1 is an offline switchmode power supply-battery charger system specifically designed for multi-output general purpose power distribution, that may be used to provide distributed power for access, fire and the CCTV segments of the lifesafety industry.
Providing for system power and multiple auxiliary power distribution outputs, the unit is user selectable for 12 or 24VDC and is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. Each auxiliary output is programmable for continuous power output or switched (resettable) voltage output.
Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Output Voltage:
- 12 V DC @ 6 A
- 24 V DC @ 3 A
Output Power:
75 W
Physical Characteristics
Form Factor:
Enclosure
Height:
14"
Width:
12"
Depth:
4.5"
Weight (Approximate):
10 lb
Miscellaneous
Compatibility:
- Fire Alarm
- Intrusion
- Access Control
- CCTV
- Mass Notification
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0811711020702
UPC:
811711020702
EAN:
0811711020702
UNSPSC:
39121004
Get help from a Barcoding Expert!
The LifeSafety Power FPO75-D8E1 Power Device is also known as
LSP-FPO75D8E1
