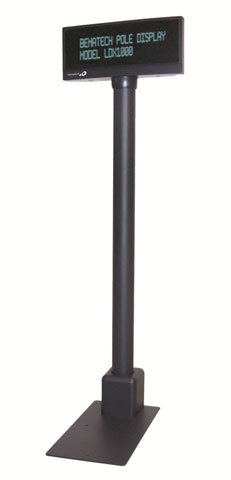

Logic Controls LDX1000UP Customer Display

The Logic Controls LDX1000UP Customer Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Logic Controls LDX1000  -  Bematech LDX1000UP Pole Display - Green Blue - VFD - 20 x 2 - Powered USB

Need a different version? See all Logic Controls LDX1000 Customer Displays

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Logic Controls LDX1000UP Customer Display
Logic Controls LDX1000UP Customer Display
Logic Controls LDX1000UP Customer Display Logic Controls LDX1000UP Customer Display
Full specifications (PDF)
Logic Controls LDX1000 Customer Display Model Overview
The LDX1000 uses special display technology and unique circuit design to achieve this reliability. In addition, the units are made with special, high durability plastic that is UV-resistant and prevents color fading. The LDX1000 is a 2×20 line, 9mm character height display that comes with superior functionality that simply is not found in other vendors’ offerings. Scrolling, user-definable characters, and a built-in real-time clock are all standard features of the unit’s firmware.
Logic Controls LDX1000UP Customer Display Overview

Bematech's pole displays are widely known as the market leaders for PC-based POS systems. They have long set the standard for reliability, value and functionality - reasons why most value-added resellers ask for Bematech's displays by name.

One of the reasons why Bematech's pole displays are the market leaders is because of their well deserved reputation for unsurpassed reliability. The LDX1000 uses special display technology and unique circuit design to achieve this reliability. In addition, the units are made with special, high durability plastic that is UV-resistant and prevents color fading.

The LDX1000 is a 2×20 line, 9mm character height display that comes with much functionality that simply is not found in other vendors' offerings. "Smart scrolling," user-definable characters, and a built-in real-time clock are all standard features of the unit's firmware. In addition, the LDX1000 series customer displays support almost any command set or language to match the POS application requirements. The LDX1000 also provides interfaces support options for USB (port-powered) and serial (external power adapter). Best of all, this premium pole display is also one of the most affordable on the market.

Full specifications (PDF)
Display & Graphics
Display Screen Type:
VFD
Display Screen Color:
Green Blue
Dot Matrix Layout:
5 x 7
Number of Columns:
20
Number of Lines:
2
Brightness:
1200 Nit
Character Width:
0.15"
Character Height:
0.35"
Character Pitch:
0.20"
Interfaces/Ports
Powered USB:
Yes
Fonts & Emulation
Font Type:
ASCII
Language Emulation:
  • OPOS
  • JPOS
  • EMAX
  • AEDEX
  • Ultimate
  • Epson
  • IEE
Physical Characteristics
Height:
21.5"
Width:
6.9"
Depth:
1.7"
Weight (Approximate):
1.80 lb
Miscellaneous
Certifications & Standards:
  • FCC
  • CE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211906
Questions? Get help from
a POS Expert!

What is your POS application?

The Logic Controls LDX1000UP Customer Display is also known as LDX1000UP
