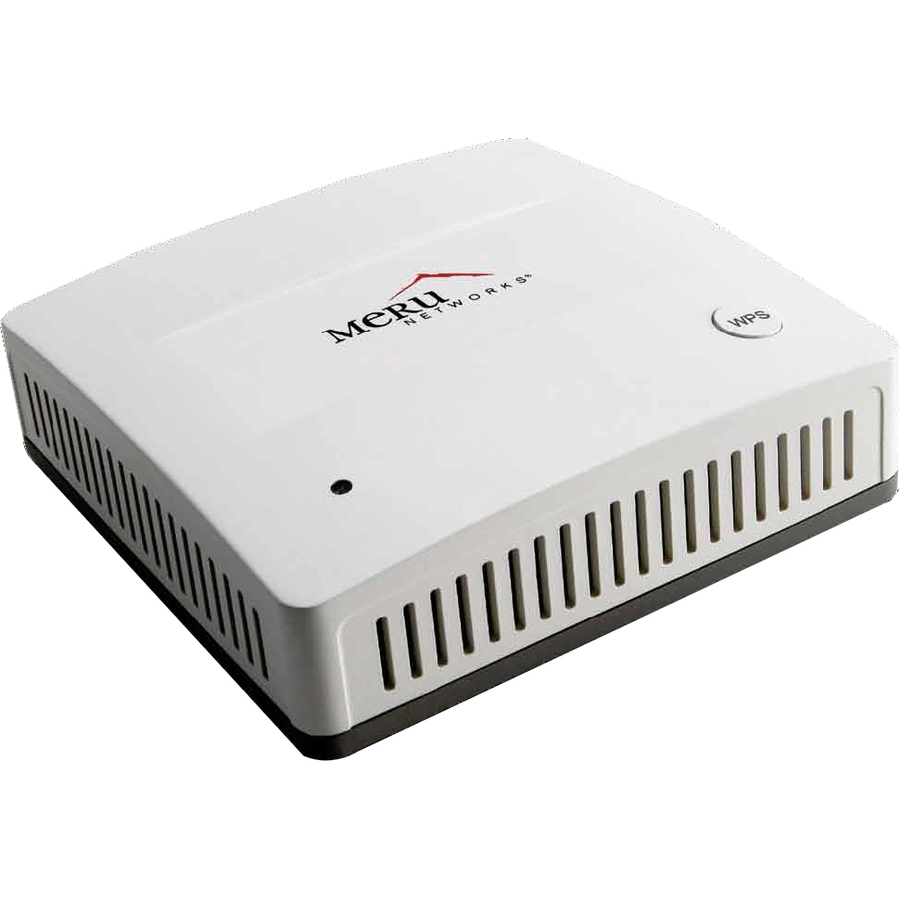

Meru AP110 Access Point

The Meru AP110 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Meru AP1000i Series - Meru AP110 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - Desktop, Wall Mountable

With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network

Need a different version? See all Meru AP1000i Series Access Points

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

Meru AP1000i Series Access Point Model Overview

Businesses need to rely on connectivity and the Meru AP1000i Series is engineered to provide the world's most reliable mobile connectivity. Supporting both the 2.4GHz and the 5GHz spectrum and backwards compatible with 802.11a, 802.11b and 802.11g, the AP1000i Series is an ideal solution to transition your network to 802.11n without leaving your legacy clients behind.

Meru AP110 Access Point Overview

Deliver secure, enterprise-class remote wireless access for users in home offices, small branch offices, or in-room hospitality environments

The AP110 is a single-radio 802.11n wireless access point designed for data, voice, and video applications in enterprise-class, virtual office deployments with both wired and wireless interfaces.

Plug-and-play deployment makes it easy to give employees in branch offices or working at home access to corporate networks, or to give guests in large hospitality settings the ability to connect from their rooms.

A wired port provides secure connectivity for a VoIP phone or other wired devices, and built-in TLS-VPN encryption allows the access point to tunnel back securely to the central controller so that it acts like an access point on the internal wireless network. This eliminates the need for costly, separate VPN infrastructure and reduces support costs.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

Total Number of Antennas:

Antenna Gain:

2 dBi

Antenna Type:

Omnidirectional Antenna

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

40/128-bit WEP
WPA
WPA2
IEEE 802.11i
AES
TKIP
IEEE 802.1x
EAP-TLS
EAP-TTLS
EAP-PEAP
MS-CHAPv2
EAP-LEAP
EAP-FAST
EAP-MD5
RADIUS

Features:

Quality of Service (QoS)

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

VGA:

HDMI:

Audio Line Out:

Serial Port:

USB:

Yes

Powerline:

Management Port:

Management & Protocols

Management:

Web Based Management
Telnet
CLI
SNMP
E(z)RF Network Manager

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Desktop
Wall Mountable

Height:

1.3"

Width:

4.1"

Depth:

4.1"

Weight (Approximate):

4.90 oz

Miscellaneous

Package Contents:

Virtual Office Access Point
Adaptor

Certifications & Standards:

IEEE Standards:

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.3
IEEE 802.3u

Radio:

FCC Part 15.247
RSS-210 (Canada)
EN 300 328
EN 62311
ARIB STD-T66
RCR STD-33
ARIB STD-T71 (Japan)

Safety:

UL 60950-1
CSA C22.2 No. 60950-1-07
EN 60950-1
IEC 60950-1

Emissions:

EN 55022 Class B
EN 55024
EN 301 489-1
EN 301 489-17
ICES-003 Class B
FCC Part 15B, Class B

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43222631

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Meru AP110 Access Point is also known as MER-AP110
