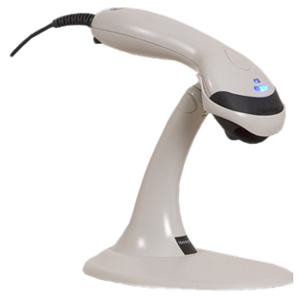

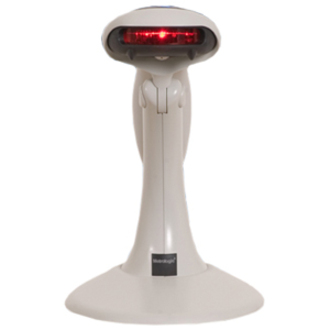

Metrologic MK9544-72B41 Barcode Scanner

The Metrologic MK9544-72B41 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Metrologic MS9544 Voyager PDF - RS-232 kit. Includes PDF417 scanner, RS-232 cable, power supply, stand, Codegate & manual. Color: white.

Scanner Capability

Minimizes your manual entry and provides reliable scanning in a durable form factor
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too

Need a different version? See all Metrologic MS9544 Voyager PDF Barcode Scanners

Chat Now for Qty Discount

Add to Quote

Discontinued Need Assistance?

Overview

Full specifications (PDF)

Metrologic MS9544 Voyager PDF Barcode Scanner Model Overview

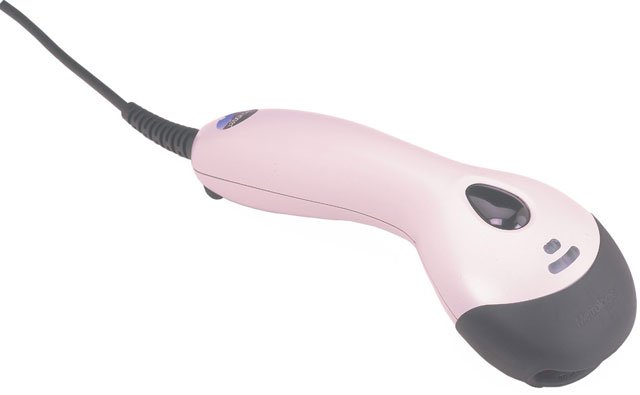

The MS9544 Voyager PDF is a high-speed linear laser scanner capable of decoding two-dimensional barcodes including PDF417, PDF417 truncated, and RSS composite. VoyagerPDF is targeted to satisfy POS applications requiring moderate-volume scanning of two-dimensional symbologies such as pharmacy applications and driver's license verification.

Metrologic MK9544-72B41 Barcode Scanner Overview

The Metrologic VoyagerPDF MS9544 Bar Code Reader combines the ability to decode PDF bar codes with many of the outstanding features found in all Voyager series hand-held, single-line scanner the industry benchmark for value and performance. Both models decode the following: 1D, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 composite bar codes. In addition to automatic activation, VoyagerPDF MS9544 also comes equipped with Metrologic patented CodeGate technology which completes data transmission with the push of a single button.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D, macro PDF and RSS-14 composite bar codes.

Light Source:

Laser

Maximum Scan Resolution:

5 mil

Scan Pattern:

Single Line

Cable Type Included:

Serial

Interfaces/Ports

Host Interface:

Multi-interface

Power Description

Input Voltage:

5.2 V DC

Power Supply Included:

Yes

Physical Characteristics

Color:

Gray

Height:

7.8"

Width:

3.1"

Depth:

1.6"

Weight (Approximate):

5.26 oz

Miscellaneous

Package Contents:

VoyagerPDF MS9544 Bar Code Reader
RS-232 Cable
110V Power Supply

Additional Information:

Supported Interfaces:

Serial

Keyboard Wedge

OCIA

Light Pen Emulation

IBM 468X/469X

USB

Certifications & Standards:

RoHS
WEEE

Laser Class 1:

Class 1; IEC60825-1:1993/A1:1997+A2:2001
Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

FCC Class B

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Item Numbers

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Get help from a Barcoding Expert!

The Metrologic MK9544-72B41 Barcode Scanner is also known as MET-MS9544-72B41 or MK954472B41.
