Honeywell MS9540 Voyager Barcode Scanner
Honeywell MS9540-47-3 Barcode Scanner

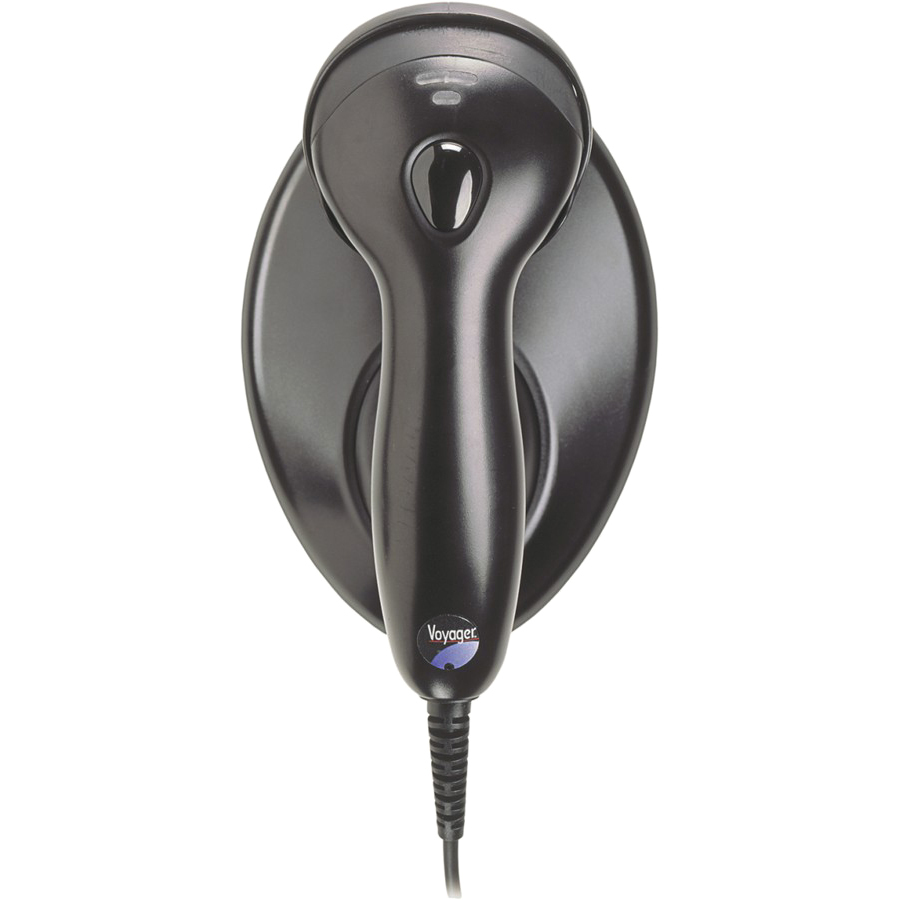

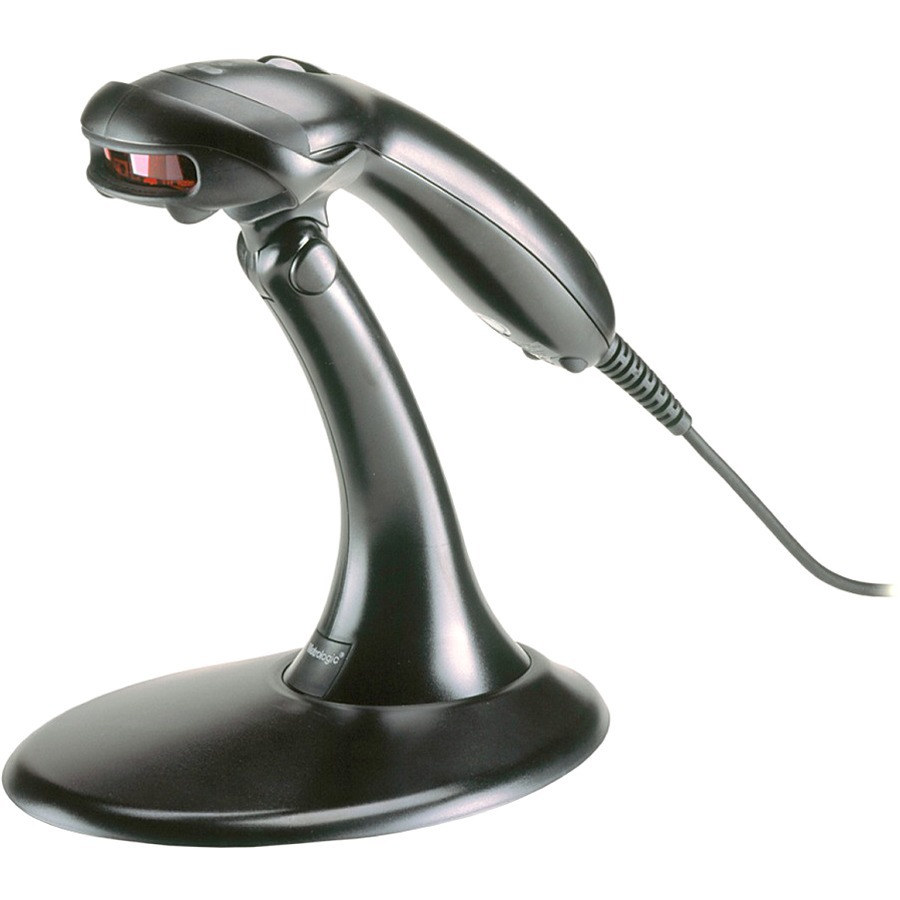

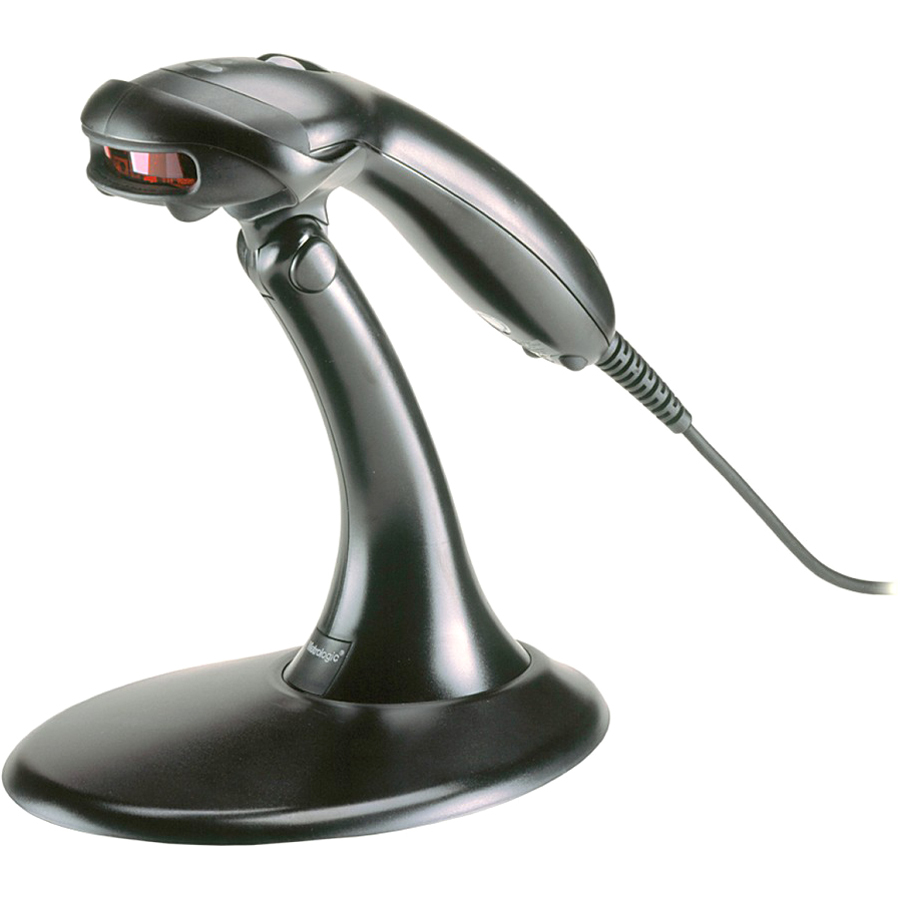

Honeywell MS9540-47-3 Barcode Scanner

The Honeywell MS9540-47-3 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell MS9540 Voyager - SCANNER ONLY, 1D Laser Scanner. CodeGate and Keyboard Wedge Interface. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3), PS/2 (Part# 53-53002-N-3), or RS-232 Serial cables (Part# 53-53000-3) and a Power supply (Part# 46-00525). Non-Cancelable/Non-Returnable.

Connectivity

Corded

Form Factor

Handheld

Interface Options

PS/2 Keyboard Wedge

Scanner Capability

1D

Scanner Type

CCD, Imager

Scan barcodes with a staggering speed of 72 scan/s
Allows productive and precise reading of 1D barcodes
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Perfect for applications that require direct association with a workstation or a notebook

Read More

Need a different version? See all Honeywell MS9540 Voyager Barcode Scanners

Discontinued Need Assistance?

Chat Now for Qty Discount

Honeywell MS9540-47-3 Barcode Scanner

Honeywell MS9540-47-3 Barcode Scanner

Honeywell MS9540-47-3 Barcode Scanner

Honeywell MS9540-47-3 Barcode Scanner

Honeywell MS9540-47-3 Barcode Scanner

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

1D

Barcode Symbology Supported:

Linear:

China Post
Codabar (NW7)
Code 11
Code 128
Code 2 of 5
Code 32
Code 39
Code 93 and 93i
EAN
Interleaved 2 of 5
Matrix 2 of 5
MSI
Plessey
GS1 DataBar (Formerly RSS)
Telepen
Trioptic Code
UPC

Stacked:

GS1 Composite (formerly EAN/UCC)

Light Source:

Laser

Scan Rate:

72 scan/s

Maximum Scan Resolution:

5 mil

Depth of Field:

0.5" - 2"@5.2mil
0" - 5"@7.5mil
0" - 6.5"@10.4mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Interfaces/Ports

Host Interface:

Keyboard Wedge

Physical Characteristics

Form Factor:

Handheld

Product Color:

Black

Height:

2.2"

Width:

3.1"

Depth:

7.8"

Weight (Approximate):

5.30 oz

Miscellaneous

Package Contents:

VoyagerCG MS9540 Handheld Bar Code Reader
MetroSelect Single-Line Configuration Guide
MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

5 Year

Item Numbers

GTIN: 0024606616601

UPC: 024606616601

EAN: 0024606616601

UNSPSC: 43211701
