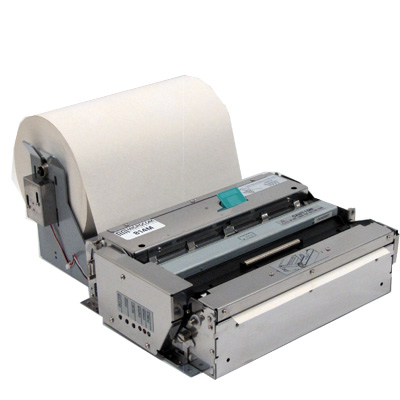

Microcom 010004-1000 Receipt Printer

Full Page Printing

Microcom Corporation introduces the newest addition to our M-series thermal kiosk printers, the model 814M. This high-powered thermal printer features an 8.5” print width and exceptional durability. Designed for unattended printing applications, the model 814M is perfect for heavy volume, high traffic areas.

Feature Rich

The model 814M offers various configuration choices and printing capabilities. Options include a heavy-duty cutter, presenter/retractor capabilities, Serial and USB ports, and multiple sensor functions. The movable media mount can hold an 8” O.D. thermal paper roll, equal to 1,100 8 ½” x 11” sheets of paper!

Application Overview:

• Inventory Management
• Weigh Scale
• Wayfinding
• Bill of Lading
• Healthcare
• Transportation
• Boarding Passes
• Retail

At Microcom, we understand that not all printing applications are the same. Whether you require a one-inch label or an eight-inch map, we've got you covered. With the addition of our model 814M, we offer customized printing solutions to accommodate any size requirement.

Key Features include:

• Long life printhead
• Serial and USB
• Industrial strength cutter
• Presenter/Retractor
• 100% duty cycle printing
• 8” O.D. roll capacity
• 4” per second print speed

Any size. Any time. Anywhere.

Microcom 814M Thermal Kiosk Printer

For more information visit our website at www.microcomcorp.com or call (740) 548-6262

Performance Summary

• 300 dpi resolution
• Up to 4” (100 mm) per second
• Auto loading capability
• Microsoft Windows® 7, 8, 8.1, 10, Linux
• 8” O.D. roll capacity: equal to 1,100 8 ½” x 11” sheets
• Multiple sensor options
• Serial/USB
• Looping presenter
• Retraction feature
• Industrial strength cutter
• Horizontal or vertical supply holder
• Self-centering and locking media guides
• Multiple mounting locations for flexible kiosk installation

Bar Codes

• Code 39
• Code 93
• Codabar
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• Code 128
• ITF
• PDF-417
• QR
• And more

Fonts

• 7 Resident including OCR-A and OCR-B
• Downloadable font support
• All fonts expandable in height and width up to 255X and 255Y
• 0, 90, 180, and 270 degrees font and bar code printing

Printing

• Direct thermal, on-demand printing
• Prints on continuous paper, folded paper, marked paper
• Paper thickness: .002” -.004” (.06 mm-.1 mm)
• Paper width: Letter/A4

Memory

• 8MB SDRAM
• 1MB Flash

Physical Dimensions

• Height: 3.8” (97 mm)
• Width: 11.6” (294 mm)
• Depth: 8.3” (212 mm)
• Weight: 13 lbs. (6 kg)

• Storage temperature: -40° F to 140° F (-40° C to 60° C)
• Operation temperature: 32° F to 122° F (0° C to 50° C)
• Input: 100-240VAC, 2.8A, 50/60Hz
• Output: DC 24V, 2.92A

Compliance

• CE
• CB
• FCC
• UL
